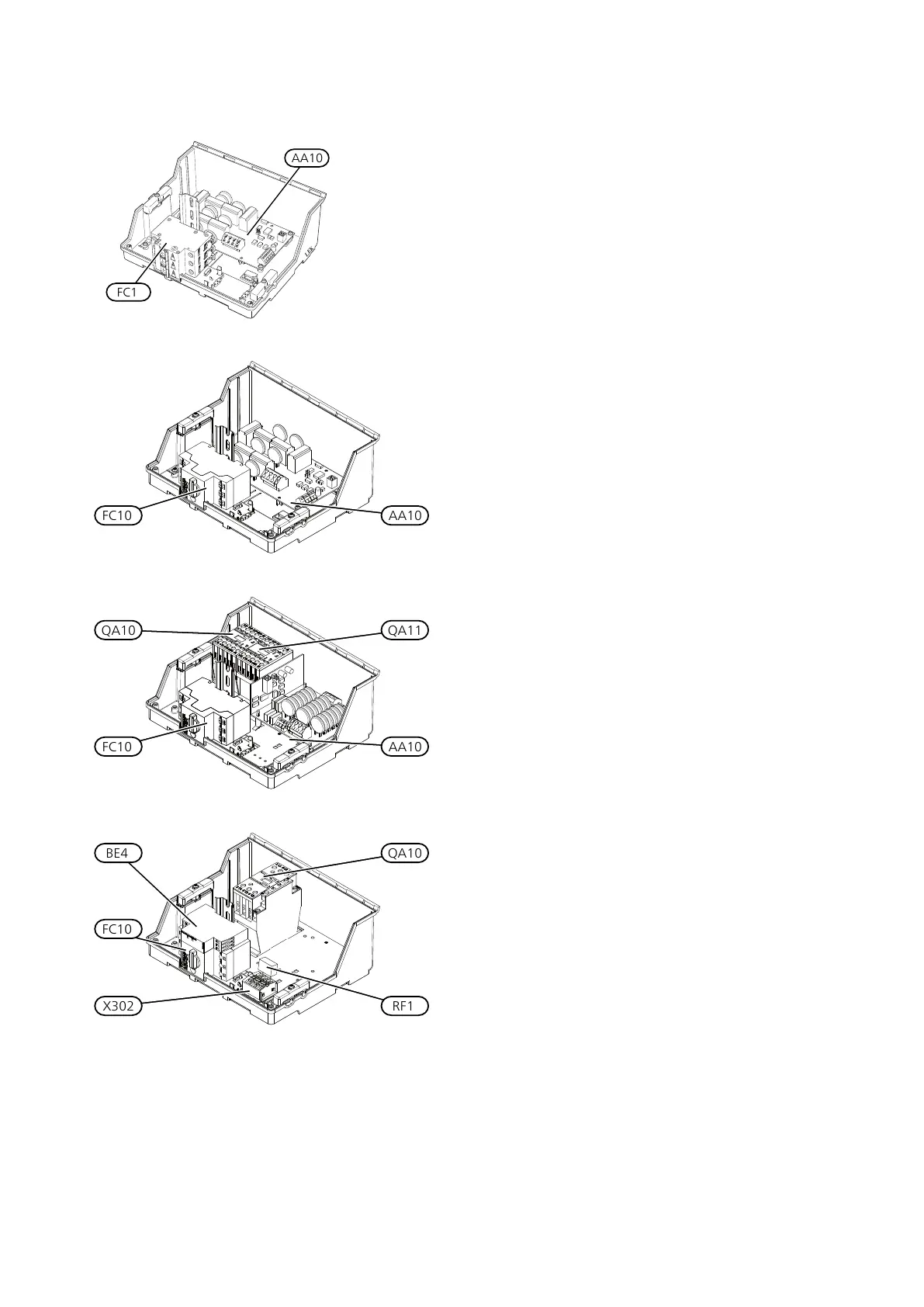

MOTOR MODULE (AA11)
3X400 V 6-10 kW
LEK
LEK
LEK
FC1
AA10
3x400V 12 kW
FC10 AA10
3x400V 15 & 17 kW
QA10 QA11
FC10 AA10
3x230V 15-17 kW
BE4
X302 RF1
QA10
FC10
ELECTRICAL COMPONENTS
Soft-start cardAA10
Phase sequence monitorBE4
Miniature circuit-breakerFC1
Motor cut-outFC10
Contactor, compressorQA10
Contactor, compressorQA11
Suppression capacitorRF1
Terminal blockX302
* 1x230 V and 3X230V has auxiliary switch for motor cut-out.
NIBE F1145Chapter 3 | The heat pump design12
