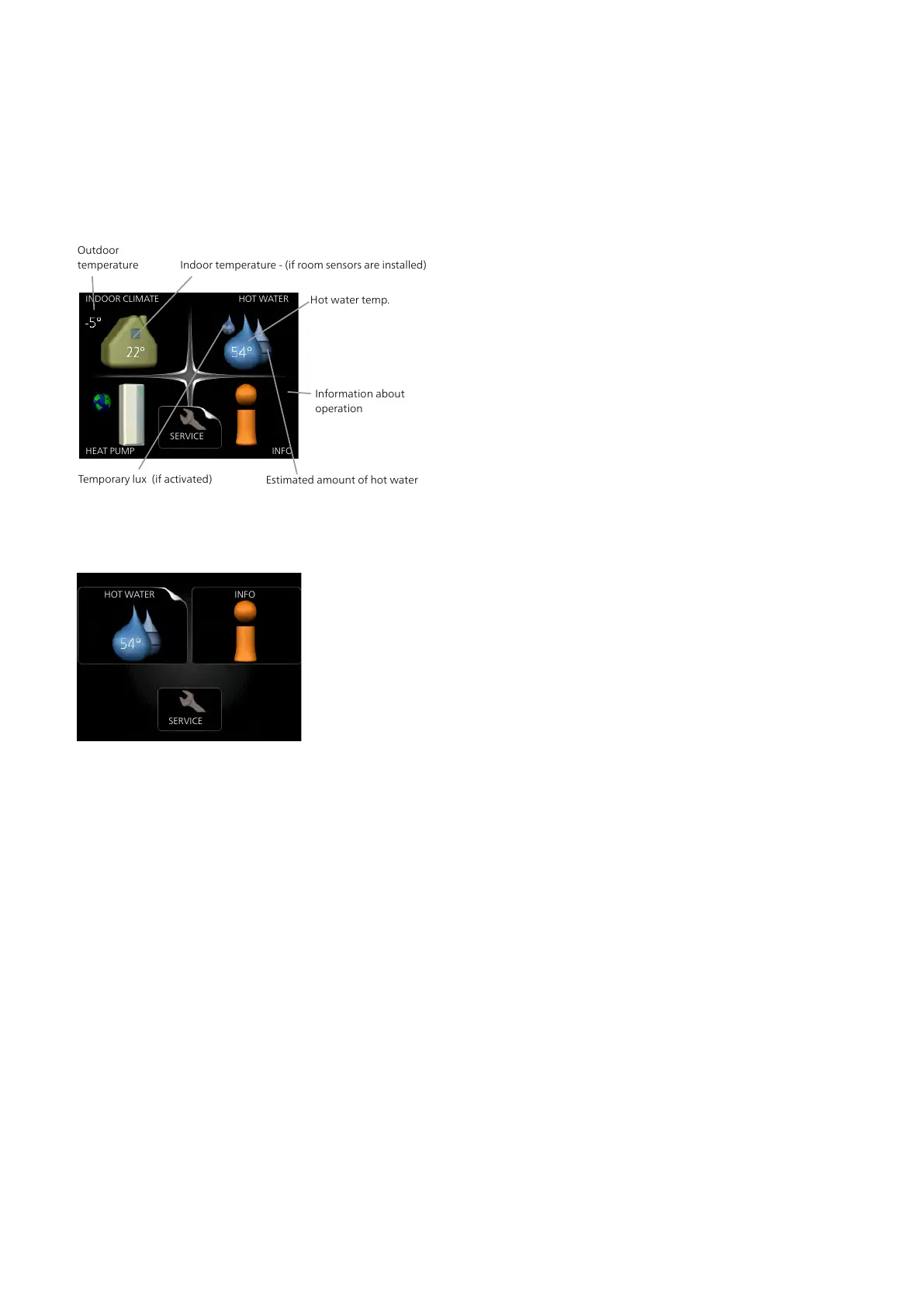

Menu system
When the door to the heat pump is opened, the menu
system’s four main menus are shown in the display as
well as certain basic information.
MASTER
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
SERVICE
Indoor temperature - (if room sensors are installed)
Hot water temp.
Temporary lux (if activated)
Outdoor
temperature
Estimated amount of hot water
Information about
operation
SLAVE
If the heat pump is set as slave a limited main menu is
displayed because the majority of the settings for the
system are made at the master heat pump.
MENU 1 - INDOOR CLIMATE
Setting and scheduling the indoor climate. See informa-
tion in the help menu or user manual.
MENU 2 - HOT WATER
Setting and scheduling hot water production. See inform-
ation in the help menu or user manual.
This menu only appears if a water heater is docked to
the heat pump.
This menu is also set in the slave heat pump's limited
menu system.
MENU 3 - INFO
Display of temperature and other operating information
and access to the alarm log. See information in the help
menu or user manual.
This menu is also set in the slave heat pump's limited
menu system.
MENU 4 - HEAT PUMP
Setting time, date, language, display, operating mode
etc. See information in the help menu or user manual.
MENU 5 - SERVICE
Advanced settings. These settings are only intended for
installers or service engineers. The menu is visible when
the Back button is pressed for 7 seconds, when you are
in the start menu. See page 45.
This menu is also set in the slave heat pump's limited
menu system.
NIBE F1145Chapter 7 | Control - Introduction38
