General
Pipe installation must be carried out in accordance with
current norms and directives. F1145 can operate with
a return temperature of up to 58 °C and an outgoing
temperature from the heat pump of 70 (65 °C with only
the compressor).
F1145 is not equipped with external shut off valves;
these must be installed to facilitate any future servicing.
Caution
Ensure that incoming water is clean. When
using a private well, it may be necessary to
supplement with an extra water filter.
Caution
Any high points in the climate system, must
be equipped with air vents.
NOTE
The pipe systems need to be flushed out be-
fore the heat pump is connected so debris
cannot damage component parts.
NOTE
Water may drip from the safety valve’s over-
flow pipe. The entire length of the overflow
water pipe must be routed to a suitable drain
and be inclined to prevent water pockets, and
must also be frost-proof. The overflow pipe
must be at least the same size as the safety
valve. The overflow pipe must be visible and
its mouth must be open and not located close
to electrical components.

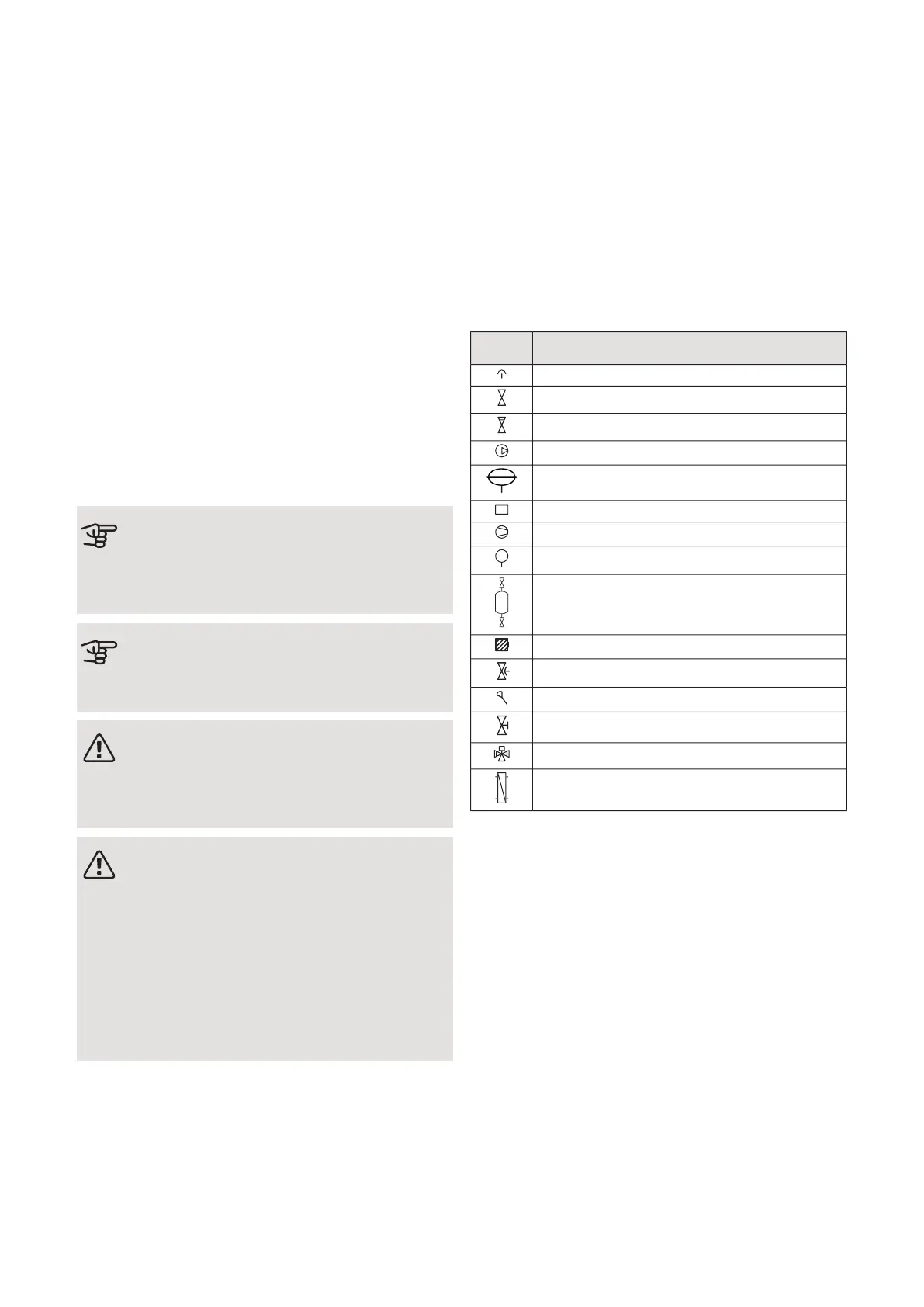

SYMBOL KEY
MeaningSymbol
Venting valve
Shut-off valve
Non-return valve
Circulation pump
Expansion vessel
Auxiliary relay
Compressor
Pressure gauge
Level vessel
Particle filter
Safety valve
Temperature sensor
Trim valve
Reversing valve/shunt
Heat exchanger
15Chapter 4 | Pipe connectionsNIBE F1145
4 Pipe connections
