■ If an insulation test is to be carried out in the build-
ing, disconnect the heat pump.
■ The heat pump is connected on terminal (9) to 400
V 3-phase, neutral + earth via a distribution board
with fuses.
■ FIGHTER 1210 does not include an isolator switch
on the incoming electrical supply. The installation
must be preceded by a circuit-breaker with at least
a 3 mm breaking gap.
■ A heat pump must not be connected without the
permission of the electricity supplier and must be
connected under the supervision of a qualified
electrician.
■ If a miniature circuit breaker is used this should
have motor characteristic “D” (compressor opera-
tion). For fuse ratings, see Technical data.
■ Motor protection (39) should be set to auto mode
(A).

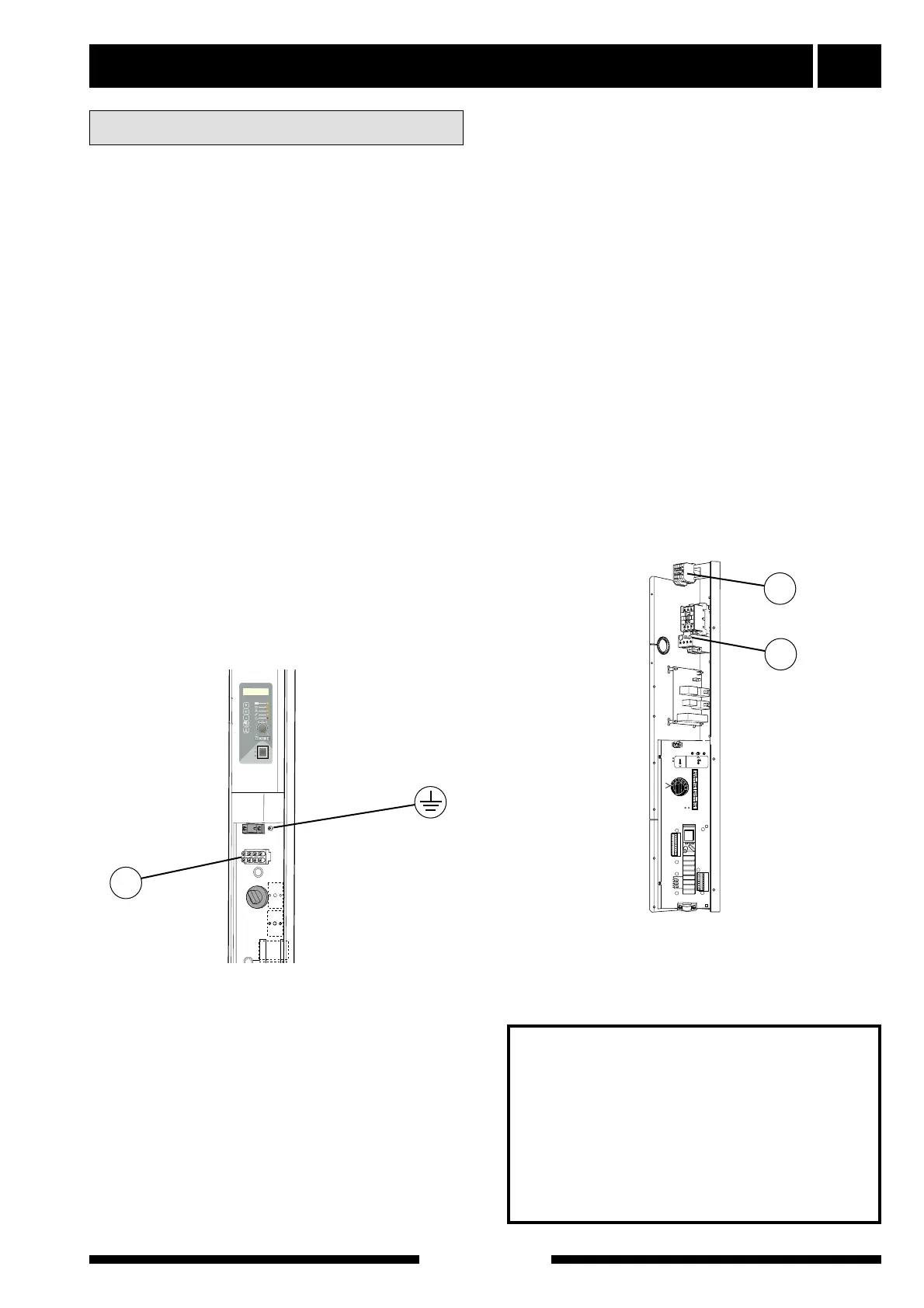

Connection
9
39
9
FIGHTER 1210, 4
FIGHTER 1210, 5 – 10
NOTE!
Electrical installation and service
must be carried out under the
supervision of a qualified electrician.
Electrical installation and wiring must
be carried out in accordance with the
stipulations in force.
