Electrical connection18
FIGHTER 1210
For the Installer
■ Disconnection of the entire electrical power is
achieved by connecting an external potential-free
make (NO) contact to terminal (30) pos 1. and 2.
■ Disconnection of the entire electrical power, with
the possibility to use Extra hot water while the pow-
er is disconnected is achieved by connecting an
external potential-free make (NO) contact to termi-
nal (30) pos 1. and 3.
■ Disconnection of the entire electrical power by
stages is achieved by connecting the accessory
Load monitor EBV 200 to terminal (30) pos 1. and
2.
■ Disconnection of the entire electrical power is
achieved by connecting an external potential-free
make (NO) contact to terminal (30) pos 1. and 2
together with pos 3 (pos 2 and 3 are connected
together).
FIGHTER 1210 has an immersion heater which is
connected for 6 kW on delivery (FIGHTER 1210 – 4, 3
kW immersion heater output). The change-over to oth-
er outputs is done by connecting cables in the electri-
cal module box (max 9 kW). See Circuit diagram

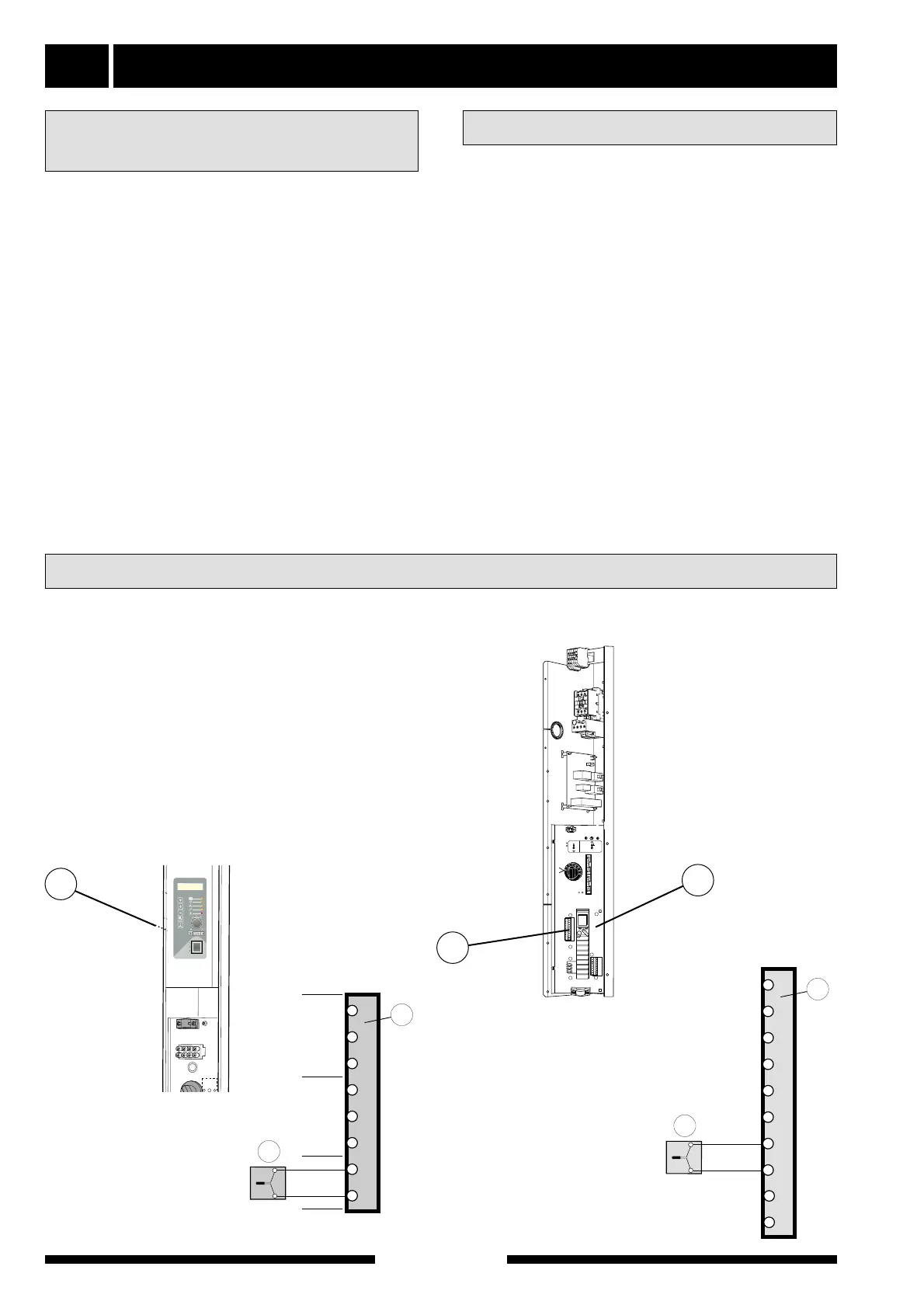

■ Install the outside sensor in the shade on a wall
facing north or north-west, so it is unaffected by the
morning sun. The sensor is connected with two
wires to positions “7” and “8” on the relay card’s
(29) terminal (30). The minimum cable cross sec-
tion should be 0.4 mm
2
up to lengths of 50 metres,
for example EKKX or LiYY. Connection is made
behind the control computer.
■ If the outside sensor cable runs close to power
cables, shielded cable must be used.
Output as set at the factory
Connecting the outside sensor
External control of the
immersion heater
