6 – ENGLISH

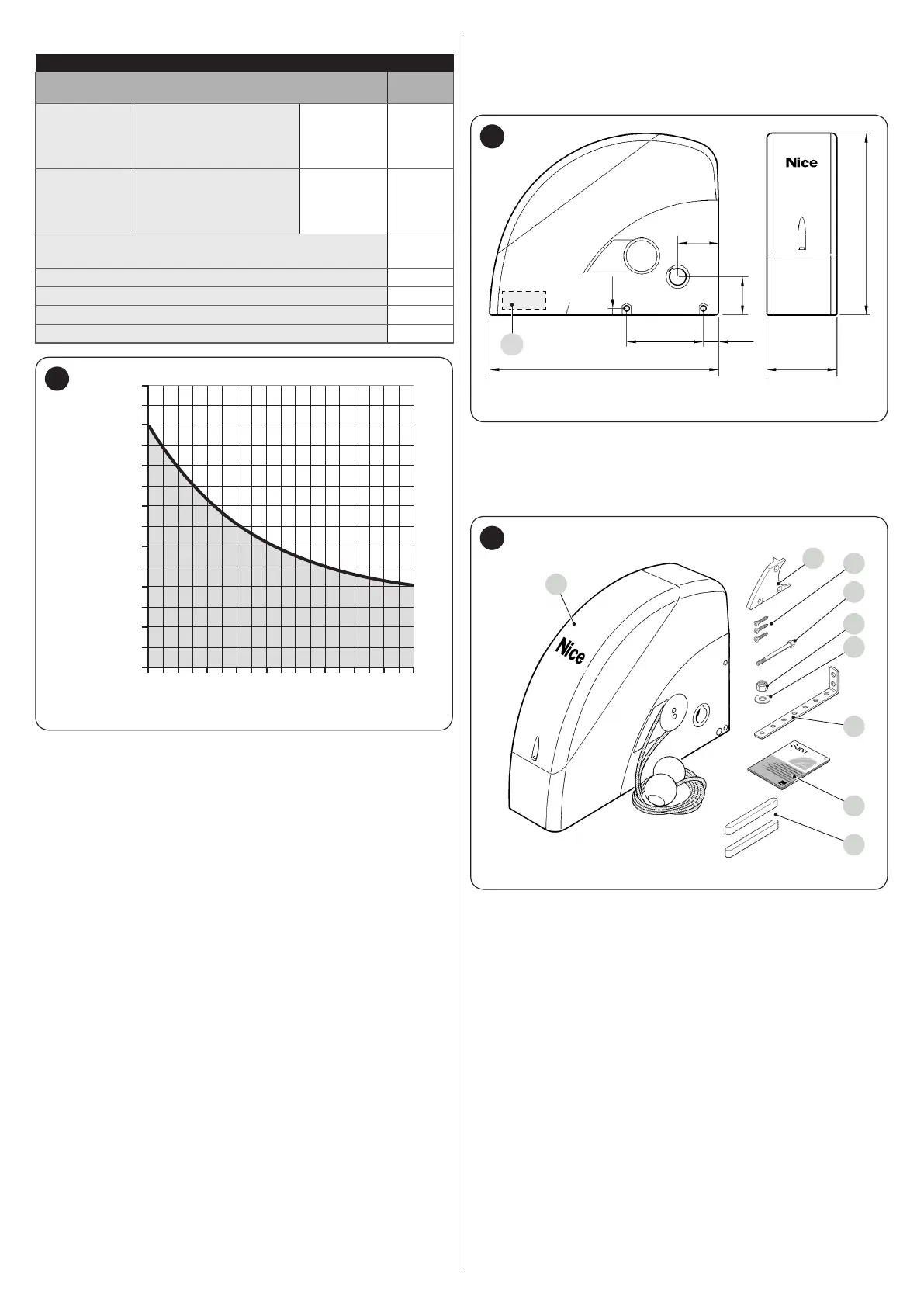

Table 3
PRODUCT DURABILITY
Severity
index
Weight of the
door
< 200lb 7oz
200lb 7oz - 396lb 13oz
396lb 13oz - 507lb 1oz
> 507lb 1oz
< 100 kg
100 - 180 kg
180 - 230 kg
> 230 kg
20%
30%
40%
60%
Force
required to
move the
door
< 352lb 12oz
352lb 12oz - 529lb 2oz
529lb 2oz - 639lb 5oz
< 160 kg
160 - 240 kg
240 - 290 kg
10%
20%
40%
Ambient temperature greater than 104°F (40°C) or
below 32°F (0°C), or humidity greater than 80%
10%
Presence of dust, sand or salinity 15%
Manoeuvre interrupted by photocell 10%
Manoeuvre interrupted by Stop 20%
Speed greater than “L4 fast” 15%
0
10 20 30 40 50 60 70 80 90
20.000
40.000
60.000
80.000
100.000
120.000
140.000
Durability in cycles (No.)
Severity index (%)
2
3.3 PRODUCT IDENTIFICATION AND OVERALL
DIMENSIONS
The overall dimensions and label (A) that allow for identifying the
product are shown in “Figure 3”.
14” 49/64 (375 mm)
4” 17/32
(115 mm)
11” 3/4 (298 mm)
4” 63/64
(126,5 mm)
61/64”
(24,3 mm)
2” 41/64
(67 mm)
2” 31/64
(63 mm)
A
27/64
(10,8 mm)
3
3.4 RECEIPT OF THE PRODUCT
All the components contained in the product’s packaging are illus-
trated and listed below.
A
C
D
F
E
H
I
G
4
A Gearmotor
B Release mechanism
C 3 black self-tapping screws
D M8x130 screw
E M8 locknut
F D8 washer
G Mounting bracket
H User manual
I 2 keys
