Take a few moments to familiarize yourself with camera controls
and displays. You may find it helpful to bookmark this section
and refer to it as you read through the rest of the manual.

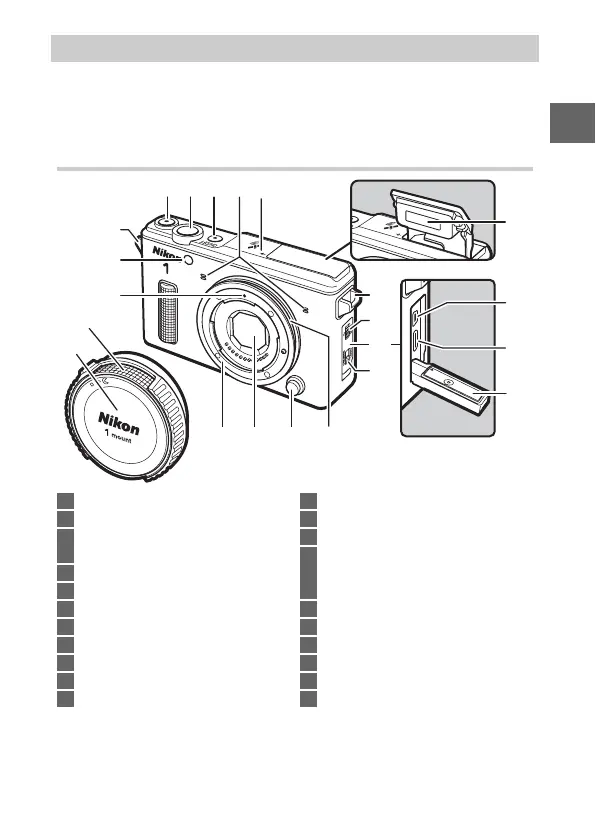

The Camera Body
Parts of the Camera
1
2
3
4 5
17
6
16
7
9
15
14
6
18
13 1112
10
19
20
21
8
1 Movie-record button ............77, 79, 84
2 Shutter-release button............... 42, 80
3 Power switch........................................36
Power lamp..........................................36
4 Microphone
5 Focal plane mark (E)
6 Eyelet for camera strap......................31
7 Connector cover latch .....................105
8 Connector cover................................105
9 Connector cover security lock .......105
10 O-ring .................................... 33, 73, 108
11 Lens release button............................35
12 Dust shield ................................114, 115
13 Lens mount
14 Mounting mark ................................... 34
15 AF-assist illuminator
Self-timer lamp ...................................89
Red-eye reduction lamp ................... 92
16 Body cap .............................................108
17 O-ring protector................................110
18 Built-in flash......................................... 91
19 USB connector...................................105
20 HDMI mini-pin connector
21 Watertight channel ............................ 62
