Nikon D1 User Manual

102

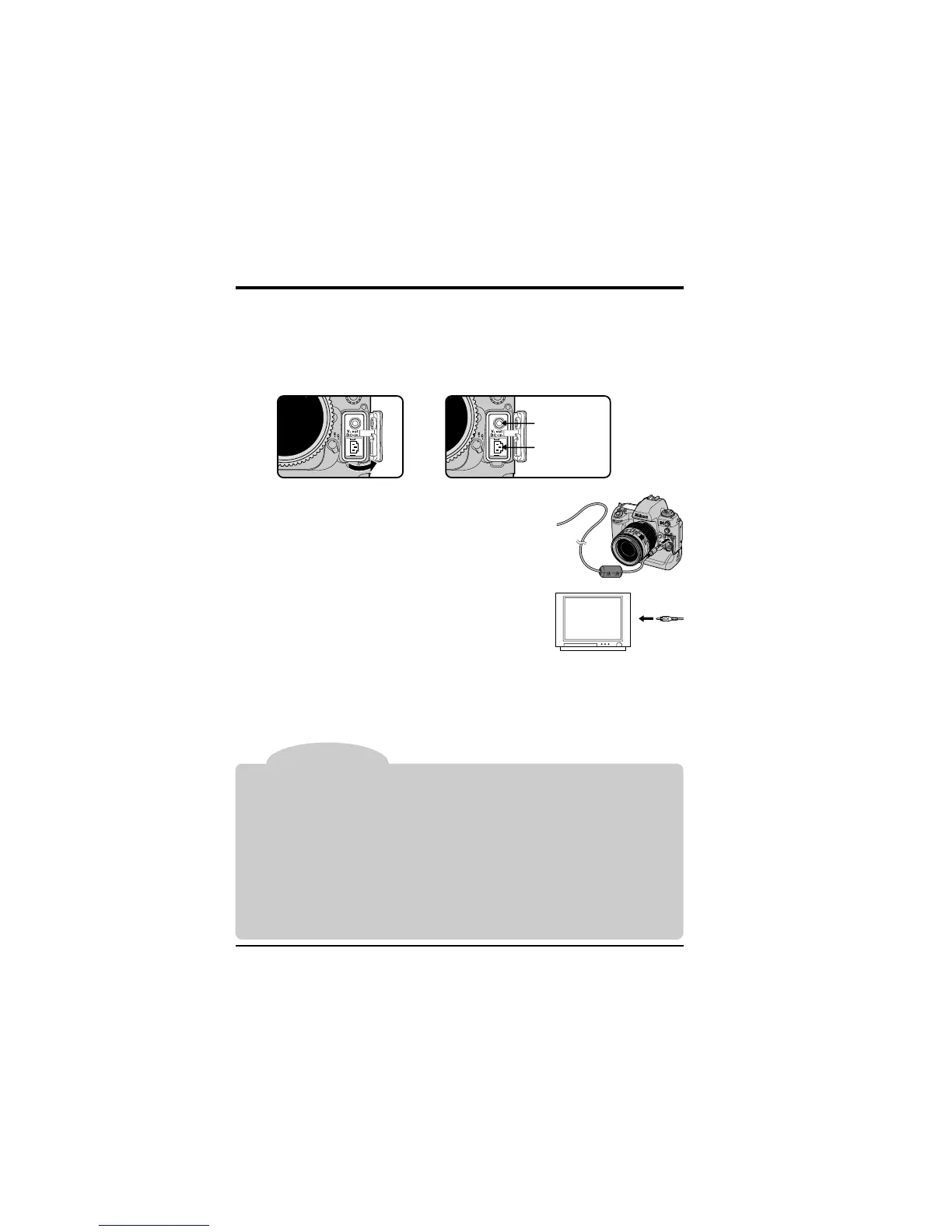

Connecting to a Television or VCR
Using the EG-D1 video cable, you can connect the D1 to a television or video
cassette recorder (VCR) to view images on the television screen or record
them on tape. Follow these steps to play photographs back on a television set:
1
Open the cover protecting the camera’s VIDEO OUT and DC IN connectors
as shown below.
2
Connect the cable to the camera by inserting the
black plug into the video-out jack as shown at right.
Notes
Connections: Connecting to a Television or VCR
Video-out connector
DC-in connector
3
Connect the yellow plug to the VIDEO IN jack on
the television or VCR.
4
Tune the television to the video channel. The television will display
whatever image is shown in the camera’s LCD monitor.
The VIDEO OUTPUT item in the playback menu offers a choice of NTSC or PAL
standards for video output. Select a standard that matches the one used in your
television set. See “Playback: The Playback Menu.”
While the camera is connected to a television set, all controls function normally and
photographs can still be taken.
Video output is linked to the monitor button only when the mode dial is set to PLAY
(playback). In other modes, the television will continue to display images even when
the LCD monitor is off.
When the camera is powered by the EH-4 AC adapter (available separately), the
monitor will turn off if no operations are performed for ten minutes. Images will
continue to be displayed on the television for another ten minutes.
