Nikon D70 VBA10401 User Manual

VBA10401-R.3623.A
- Ａ17 ･ -

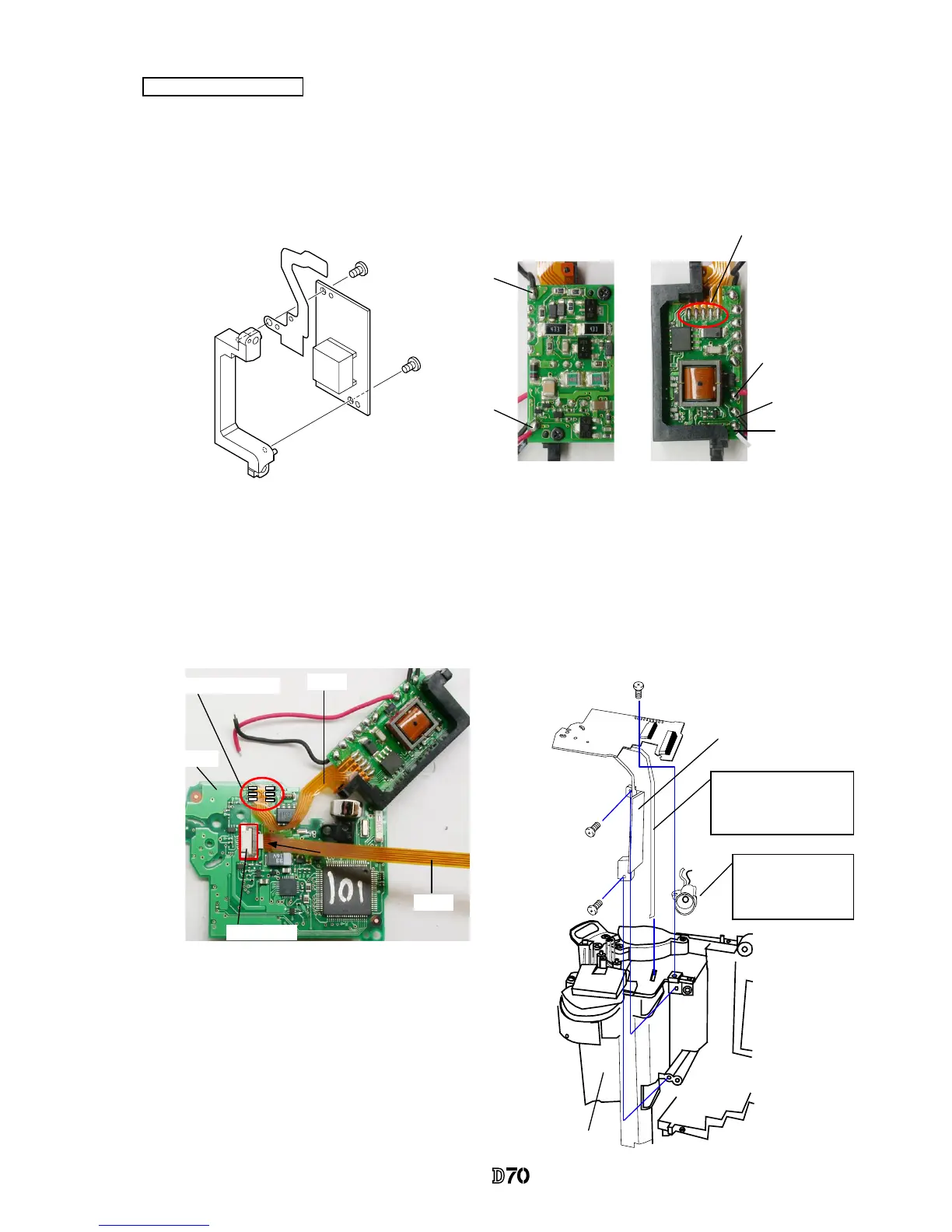

SB PCB / Sub-PCB
・
Assemble the SB PCB (#B1041), sub-SB
connection FPC (#1015), and SB-PCB holder
(#109) with 2 screws (#642).
Black
Red
Red
Black
Gray
Soldering bridges
#B1041
#1015
#109
#642×2
・
Make soldering bridges and solder 5 wires.
・
Connect the connection FPC (#1065) to the connector of
the sub-PCB (#B1002). Make soldering bridges of the
sub-SB connection FPC (#1015).
Soldering bridges
#1065
#1015
Connector
・
Assemble the sub-PCB (#B1002) and the
SB-PCB (#B1041) with 2 screws (#664
and #684) into the rear body.
#1065
：
Pass through the hole of
rear body.
#664
#B325
：
Screw #B1002
together with 1 screw.
#684×2
#B1002
#B1041
Rear body
