Nikon SB-600 FSA03601 User Manual

FSA03601-R.3629.A
- D5・SB-600 -

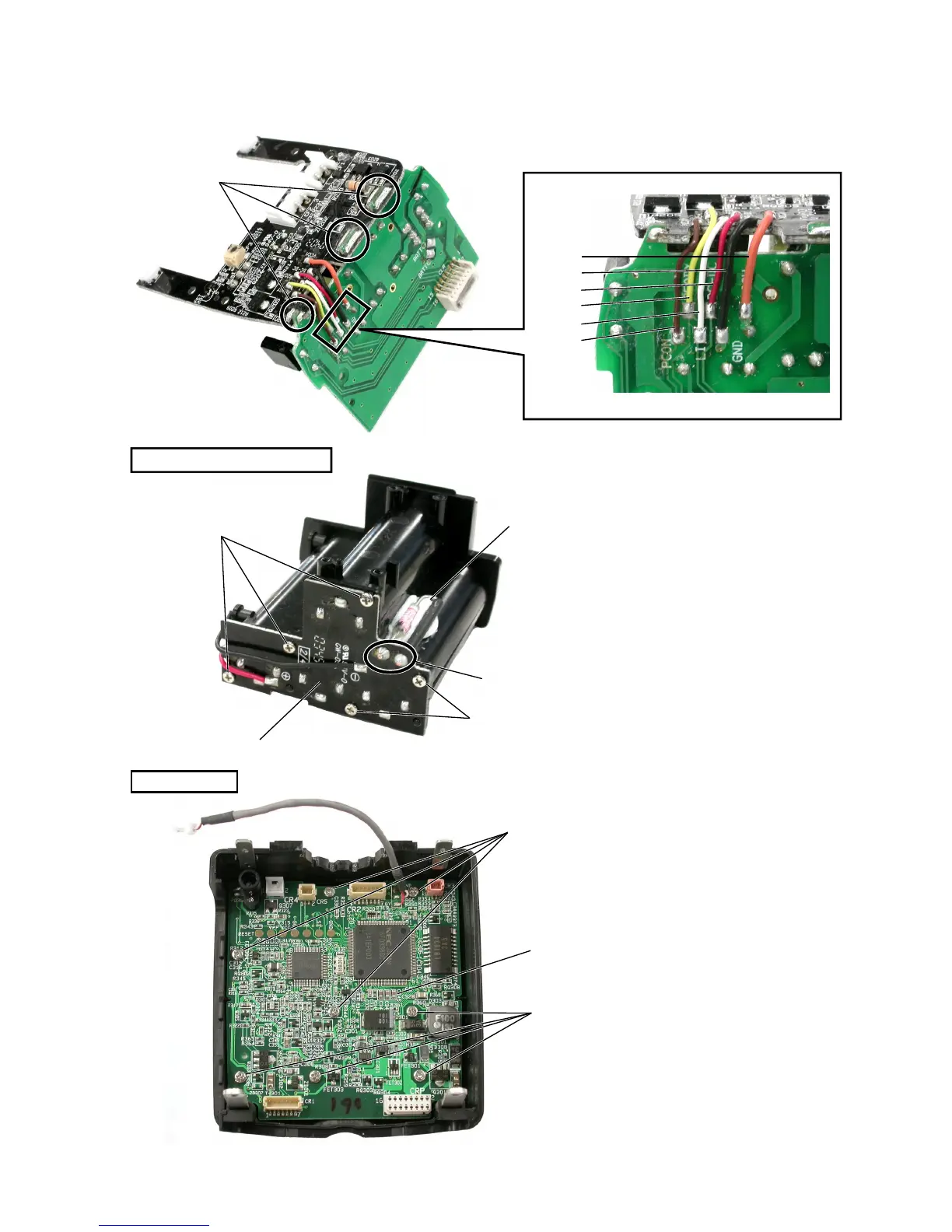

Soldering bridges
Orange
Black
Red
Yellow
White
Brown
・
Remove 3 soldering bridges and 6 soldering parts, and separate the F-PCB and L-PCB.
Battery-PCB, Thermal fuse
#226×3
#226×2
Solder
Thermal fuse
Battery-PCB
・
Take out 5 screws (#226), and unsolder 2
parts of the thermal fuse. Then detach the
battery-PCB from the battery box.
Note)
Unsolder the thermal fuse in a short time.
Otherwise, it may be damaged.
R-PCB
#226×4
#226×4
R-PCB
・
Take out 8 screws (#226) to remove the R-PCB.

Nikon SB-600 FSA03601 Specifications

General

Compatibility	Nikon i-TTL
Guide Number	30 (ISO 100, m, 35mm)
Zoom Range	24-85mm
Power Source	4 x AA batteries
Type	Shoe mount
Flash Modes	TTL, Manual
Wireless Mode	Yes
Flash Coverage	24-85mm (14mm with built-in wide panel)
Dimensions	2.7 x 5.0 x 3.5" (68.0 x 126.0 x 89.0mm)
Weight	Approx. 350g (without batteries)
