FSA03601-R.3629.A

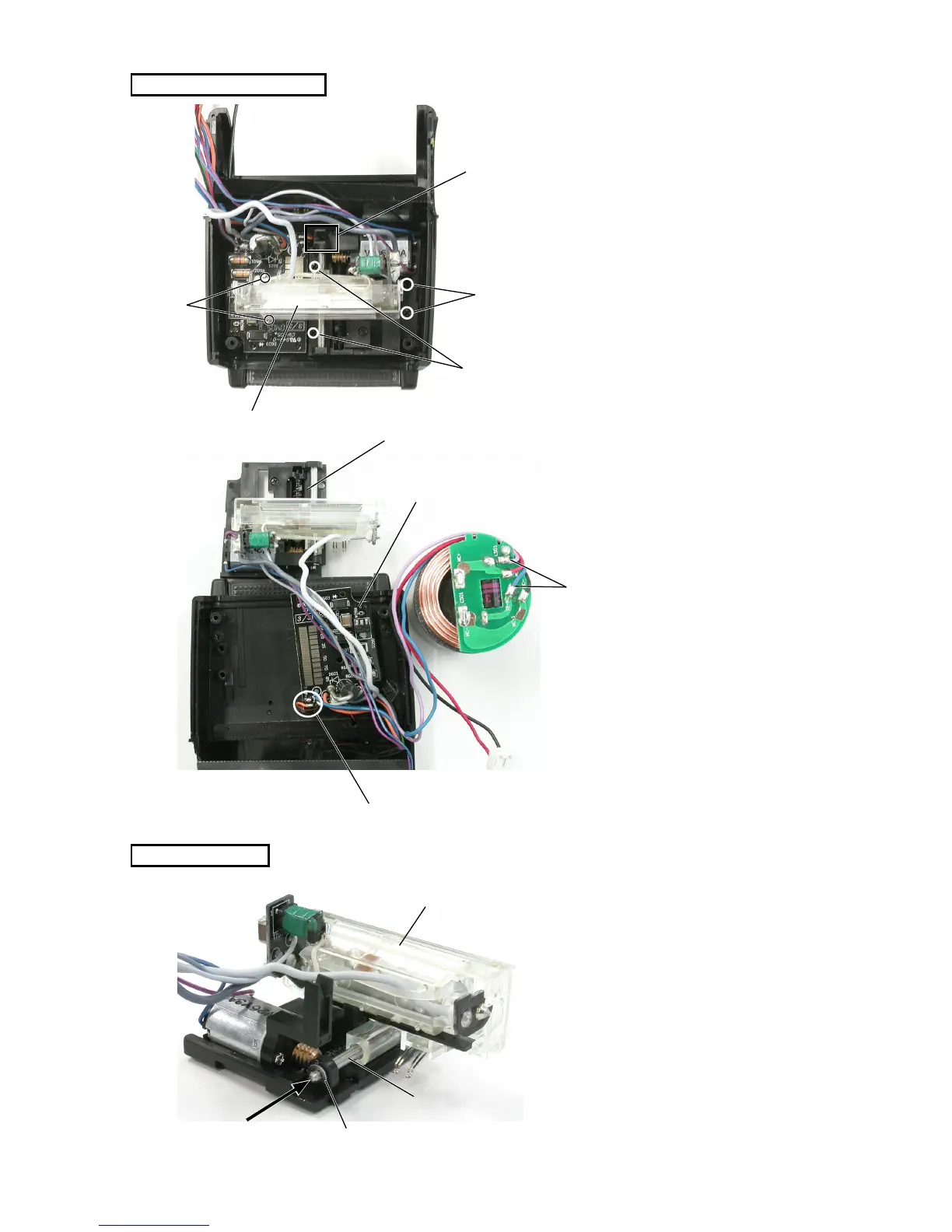

- D8・SB-600 -
Motor unit, ZOOM-PCB
Wire retainer
#230×2
#255×2
#226×2
Lighting unit
・
Move the lighting unit to the left
picture’s position.
・
Remove the wires from the wire
retainer.
・
Take out 2 screws (#226), 2 screws
(#230) and 2 screws (#255).
Solder (Black, orange)
Solder (blue, purple)
・
Unsolder the main condenser (to remove
blue and purple wires) and the ZOOM-
PCB (to remove black and orange wires)
to separate the ZOOM-PCB from the
motor unit.
ZOOM-PCB
Motor unit
Lighting unit
Lighting unit
#72 *
#68
・
Remove the E ring (#72).
*Attached with glue
・
Push the guide shaft (#68) out in the
direction indicated by the arrow, and
remove the lighting unit.

Nikon SB-600 FSA03601 Specifications

General

Compatibility	Nikon i-TTL
Guide Number	30 (ISO 100, m, 35mm)
Zoom Range	24-85mm
Power Source	4 x AA batteries
Type	Shoe mount
Flash Modes	TTL, Manual
Wireless Mode	Yes
Flash Coverage	24-85mm (14mm with built-in wide panel)
Dimensions	2.7 x 5.0 x 3.5" (68.0 x 126.0 x 89.0mm)
Weight	Approx. 350g (without batteries)
