Nikon SB-600 FSA03601 User Manual

FSA03601-R.3629.A
- A20
･
SB-600 -
How to connect PC and SB when adjustments are made
* Serial communications

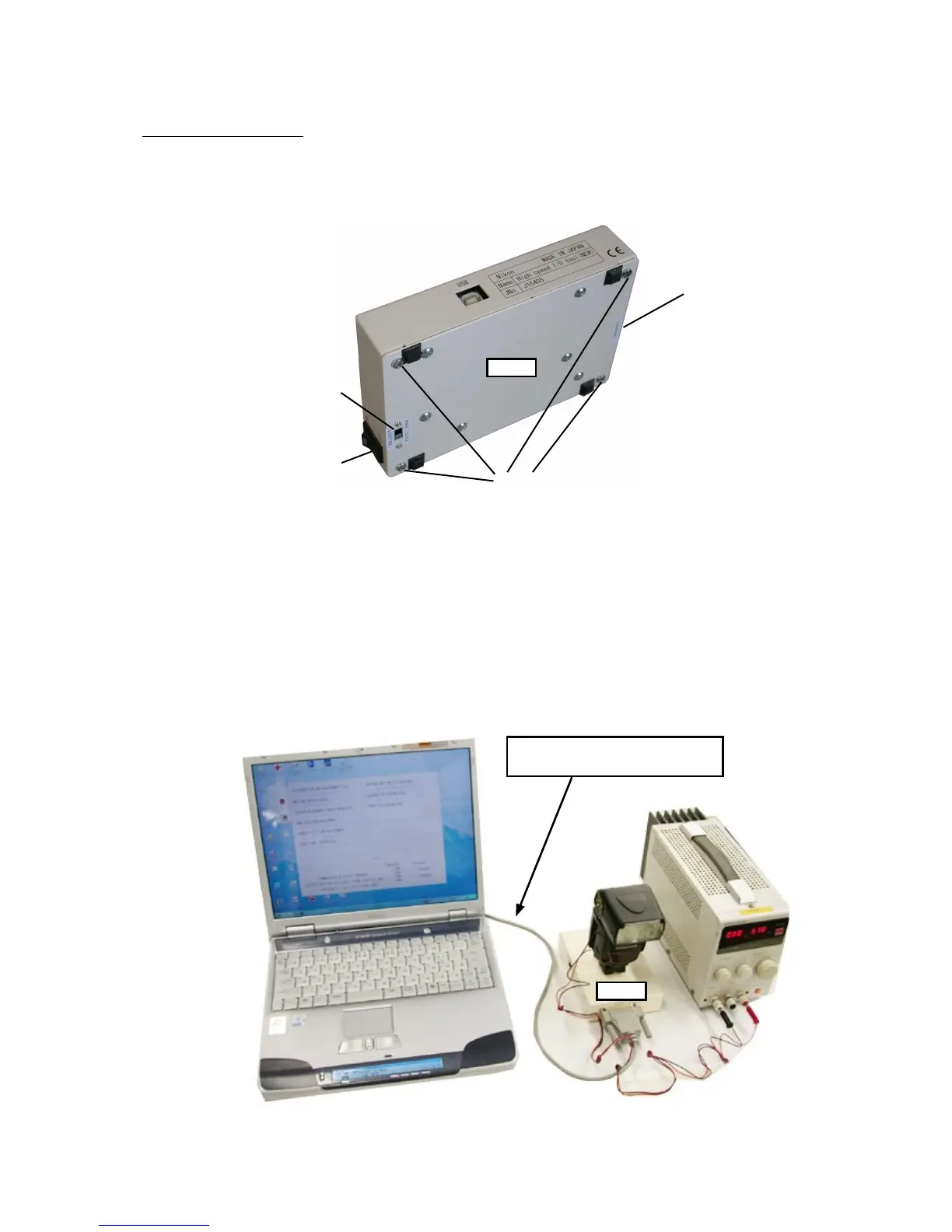

1. Setup of the NEW high-speed communication tool (J15405)
・Set "RS232C ⇔ USB change-SW" to "RS232C".
・Remove 4 screws of the bottom-cover and insert 4 AA-type alkaline batteries.
RS232C cable
Straight type (product on the market)
2. Connection
・Connect the serial port of PC and NEW high-speed communication tool (J15405) via RS232C cable
(product on the market).
・Put SB on NEW high-speed communication tool (J15405).
・Supply power for SB. (Stabilized power supply ＝ 5.7V)
RS232C
⇔
USB
change-SW
Power SW
Bottom cover screws
RC232C connector
J15405
J15405

Nikon SB-600 FSA03601 Specifications

General

Compatibility	Nikon i-TTL
Guide Number	30 (ISO 100, m, 35mm)
Zoom Range	24-85mm
Power Source	4 x AA batteries
Type	Shoe mount
Flash Modes	TTL, Manual
Wireless Mode	Yes
Flash Coverage	24-85mm (14mm with built-in wide panel)
Dimensions	2.7 x 5.0 x 3.5" (68.0 x 126.0 x 89.0mm)
Weight	Approx. 350g (without batteries)
