Nikon TIRF User Manual

I Name and Function of Each Part
3 TIRF attachment
- 11 -
I
3
TIRF attachment
The main optical unit of the TIRF system incorporates a collimator lens, condenser lens, ND filters,
and a field diaphragm. Excitation light from a laser unit is guided into this unit through an optical-fiber
cable. Excitation light emitted by this unit forms an image on the pupil surface of the objective.
To protect your eyes and skin from exposure to the laser, do not detach the TIRF attachment
from the microscope.

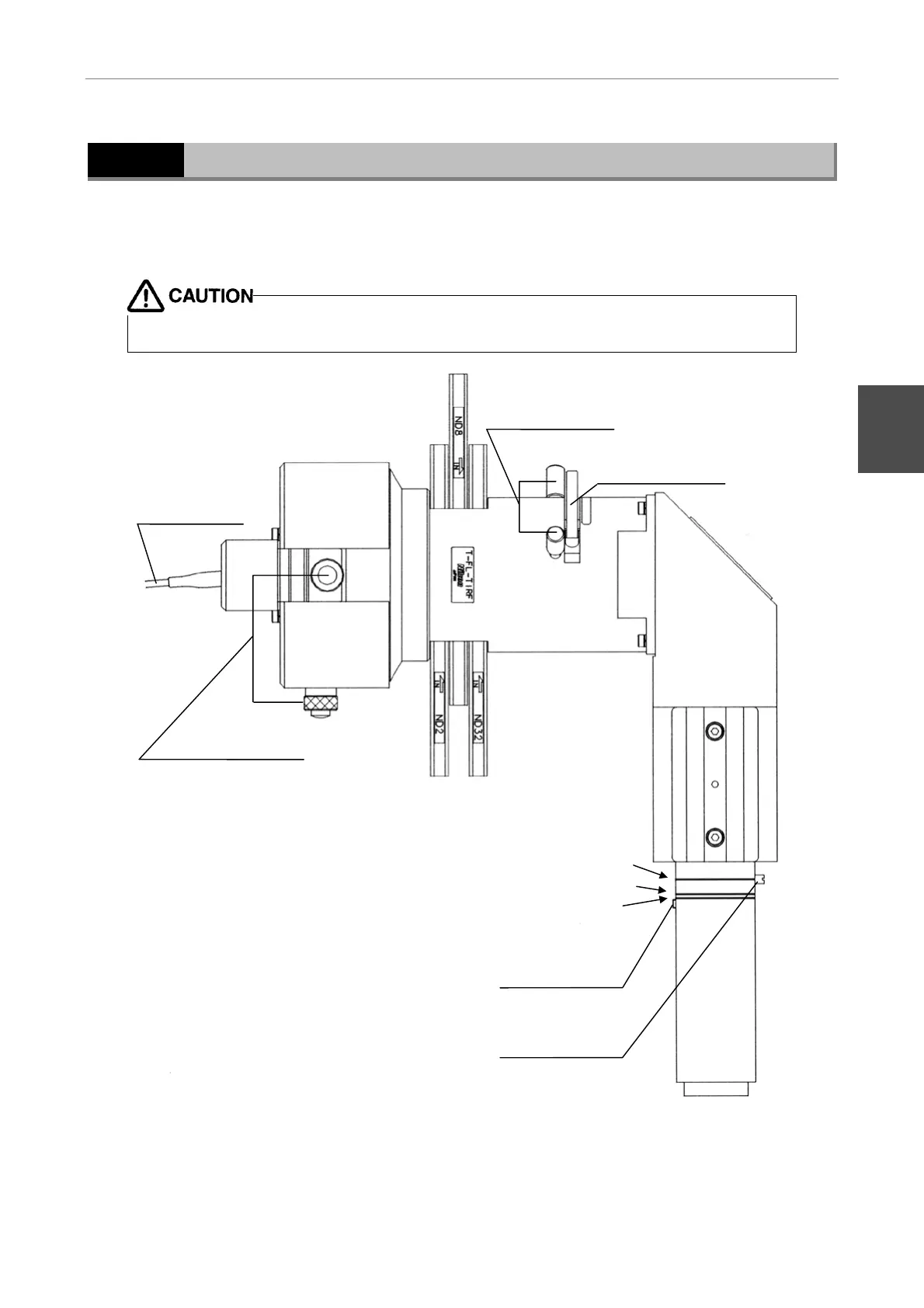

TIRF attachment
(1) Optical-fiber
cable
(2) Laser position
adjustment knobs
(3) Field diaphragm
centering knob
(4) ND filter
(5) Condenser lens
locking screw
(
5
)
Indices
(5) Focal point
adjustment knob
(3) Field diaphragm
open/close knob
PlanApo 60x/1.45
PlanApo100x/1.45
PlanApo60x/1.4
