Nokia N81 Service Manual

Camera construction
This section describes the mechanical construction of both camera modules for getting a better
understanding of the actual mechanical structure of each module.
Main camera construction

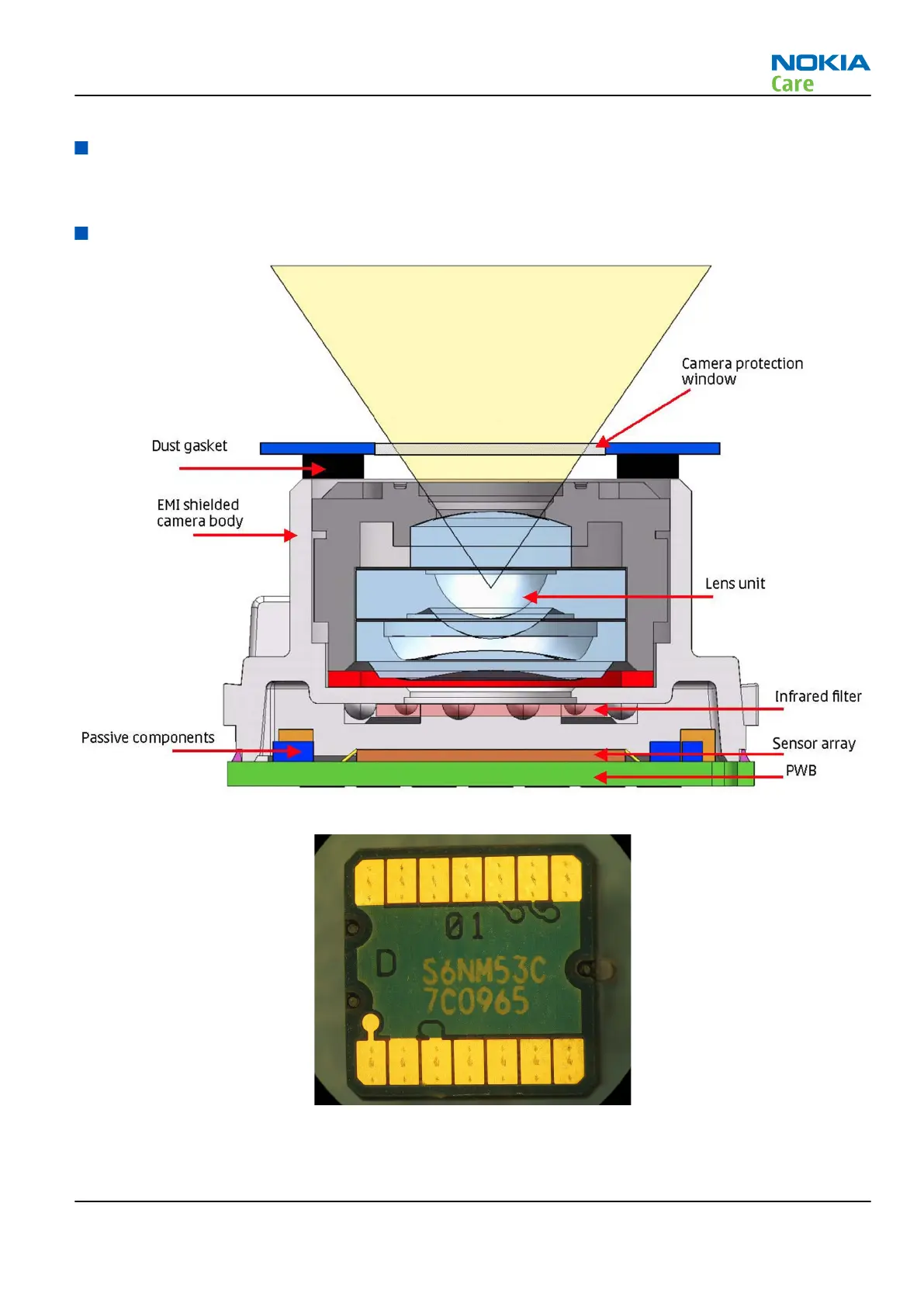

Figure 43 Camera module cross section and assembly principle
Figure 44 Main camera module bottom view including serial numbering
The camera module as a component is not a repairable part, meaning that the components inside the module
may not be changed. Cleaning dust from the front face is allowed only. Use clean compressed air.
RM-179; RM-223
Camera Module Troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 5 –5
Copyright © 2007 Nokia. All rights reserved.
