Nokia N81 Service Manual

SA-113 RF coupler

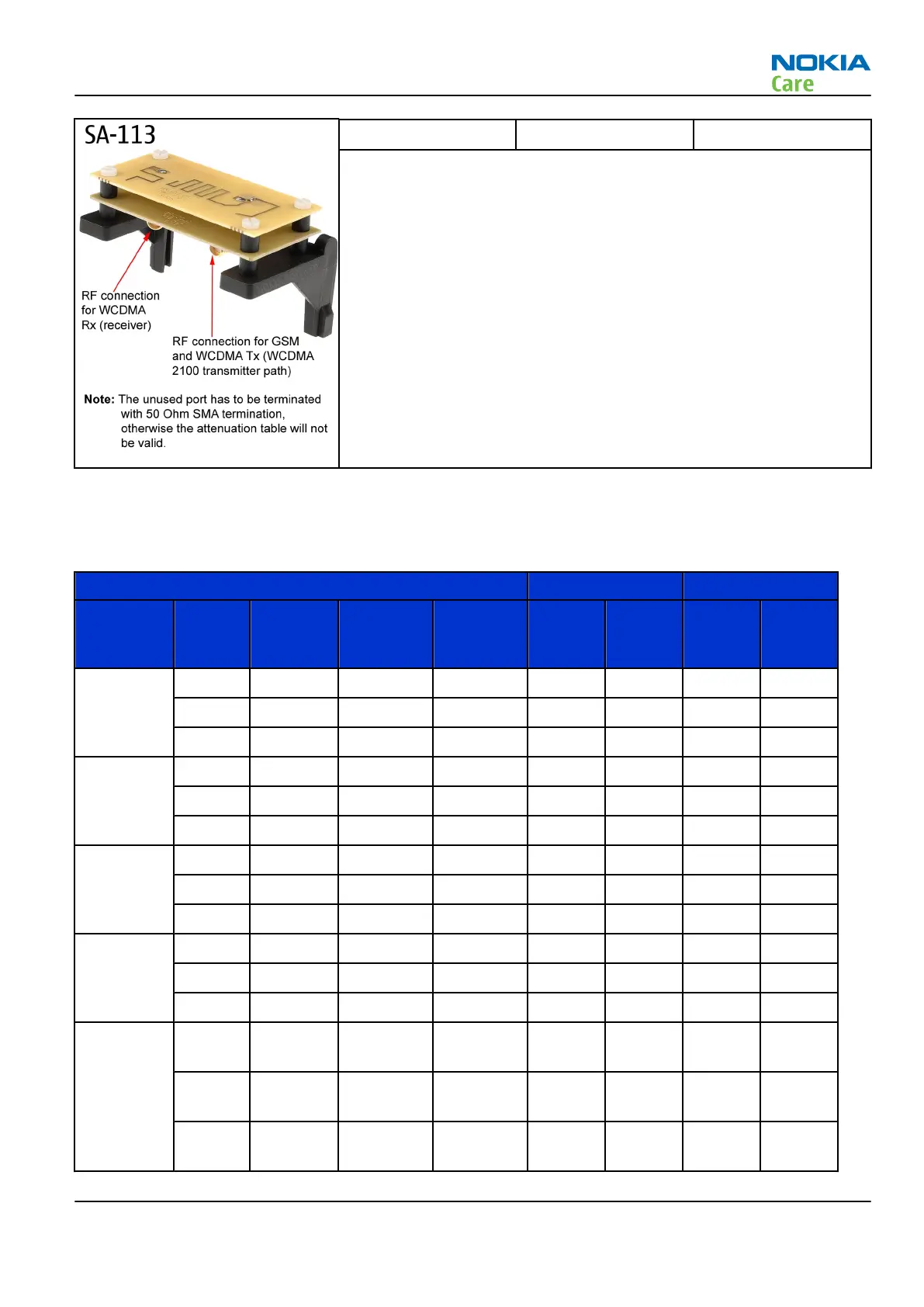

SA-113 is an RF coupler for WCDMA and GSM RF testing. It is used
together with the product-specific flash adapter.
For the attenuation values, see SA-113 attenuation values
(page 2–7).
SA-113 attenuation values
The following table shows attenuations from the antenna pads of the mobile terminal to the SMA connectors
of SA-113:
Slider OPEN Slider CLOSE
Band Channel
UP/
DOWN
TX f [MHz] RX f [MHz] TX Loss
[dB]
RX Loss
[dB]
TX Loss
[dB]
RX Loss
[dB]
GSM 850
Low 128 824.2 869.2 7.34 13.16 6.84 13.33
Mid 189 836.4 881.4 6.47 12.07 5.90 12.04
High 251 858.8 893.8 5.94 10.65 5.26 10.05
GSM 900
Low 975 880.2 925.2 11.76 6.45 10.52 5.44
Mid 37 897.4 942.8 10.56 6.12 8.63 4.79
High 124 915.8 960.8 4.31 6.48 4.13 4.93
GSM 1800
Low 512 1710.2 1805.2 11.82 19.03 10.61 18.03
Mid 698 1747.4 1842.4 11.68 16.89 10.79 15.33
High 885 1784.8 1879.8 12.24 14.88 11.19 13.16
GSM 1900
Low 512 1850.2 1930.2 12.15 12.06 11.05 11.32
Mid 661 1880.0 1960.0 11.85 12.79 10.95 11.76
High 810 1909.8 1989.8 11.93 13.20 11.35 11.89
WCDMA I
Low
9613 /
10563 1922.4 2112.4 17.60 16.82 17.47 15.21
Mid
9750 /
10700 1950.0 2140.0 17.80 15.61 17.24 14.54
High
9887 /
10837 1977.6 2167.6 17.82 15.77 17.19 15.20
