Nokia N81 Service Manual

Hardware accelerator
The STV0984N is an ultra low power mobile imaging digital signal processor which supports SMIA CMOS color
image sensors up to 2 Megapixel resolution. It performs all the required data processing to deliver good
quality in view finder, still and movie color images.
The STV0984N performs high quality color processing on images, achieving JPEG compression if requested

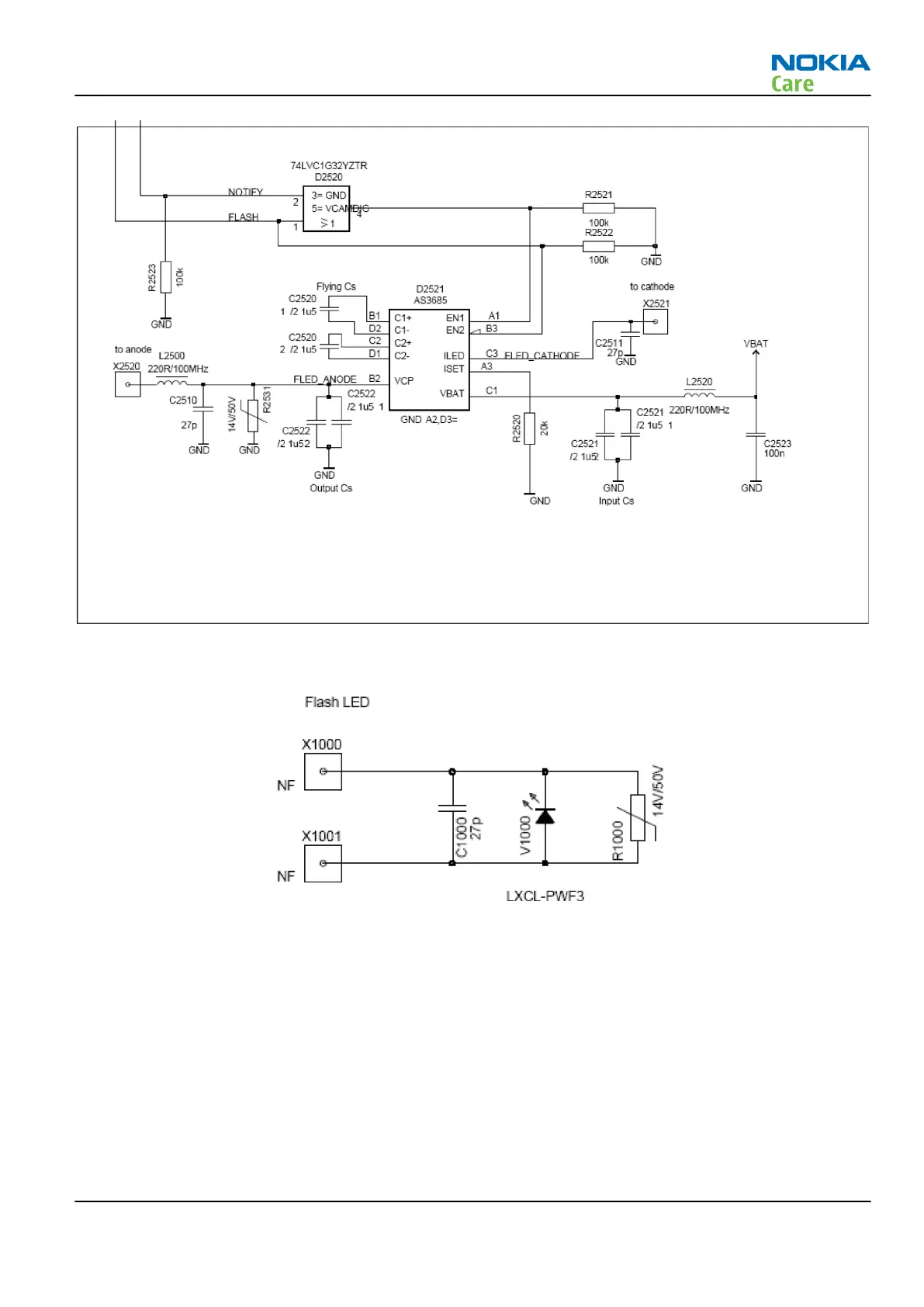

by Rapido. Further, it includes programmable GPIOs to control external flash LED. STV0984 provides internal
buffering capability along with a versatile clock manager to accommodate different data rates between input
sensors and Rapido interface.
Data is transferred from sensor to STV0984N through Low Electromagnetic Interference (EMI) interface; using
the CCP 2.0 data transfer protocol over LVDS (2 separate CCP 2.0 receivers).
RM-179; RM-223
System Module and User Interface
Issue 1 COMPANY CONFIDENTIAL Page 6 –23
Copyright © 2007 Nokia. All rights reserved.

Nokia N81 Specifications

General

Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Internal memory	8196 MB
Front camera type	Single camera
Rear camera resolution	1600 x 1200 pixels
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes, To-do list
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Text prediction system type	T9
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Slider
Product color	Brown
Gaming time	6 h
Browsing time	5 h
Talk time (2G)	4 h
Talk time (3G)	3 h
Battery capacity	1050 mAh
Standby time (2G)	1020 h
Continuous audio playback time	11.5 h
Continuous video playback time	4.5 h
2G standards	GPRS
Data network	wcdma
Bluetooth version	2.0+EDR
Bluetooth profiles	A2DP, BIP, DUN, FTP, GAP, GOEP, HFP, HSP, OPP, SPP
SIM card capability	Single SIM

Weight and Dimensions

Depth	102 mm
Width	50 mm
Height	17.9 mm
Weight	140 g
