Module jig service concept

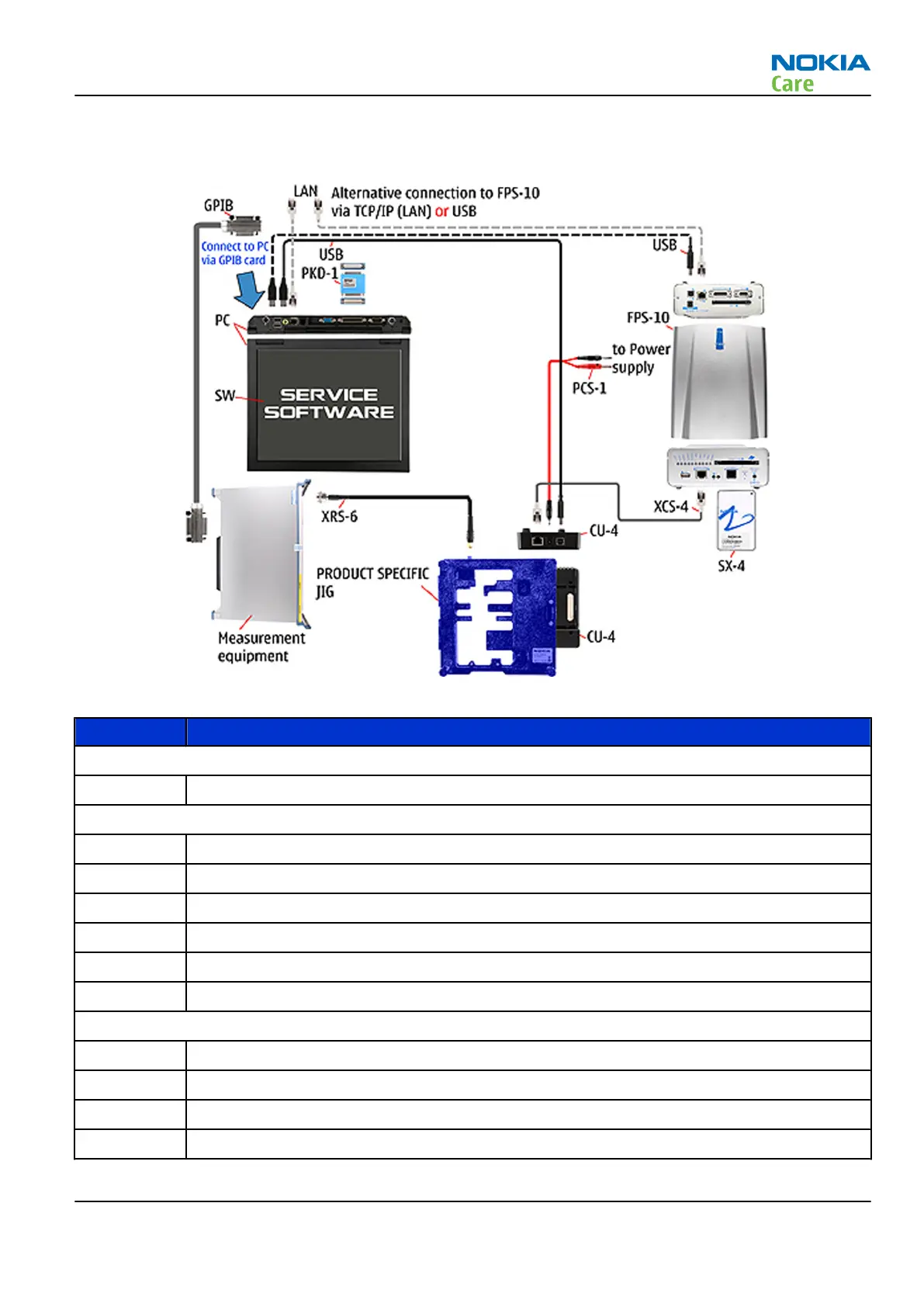

Figure 9 Module jig service concept
Type Description
Phone specific devices
MJ-114 Module jig
Other devices
CU-4 Control unit
FPS-10 Flash prommer box
PKD-1/PK-1 SW security device
SX-4 Smart card
PC with VPOS and Phoenix service software
Measurement equipment
Cables
PCS-1 DC power cable
XCS-4 Modular cable
XRF-1 RF cable
USB cable
RM-179; RM-223
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 –23
