Refer to the picture below for measuring points at FEM (N7100) and Litti (D2901).

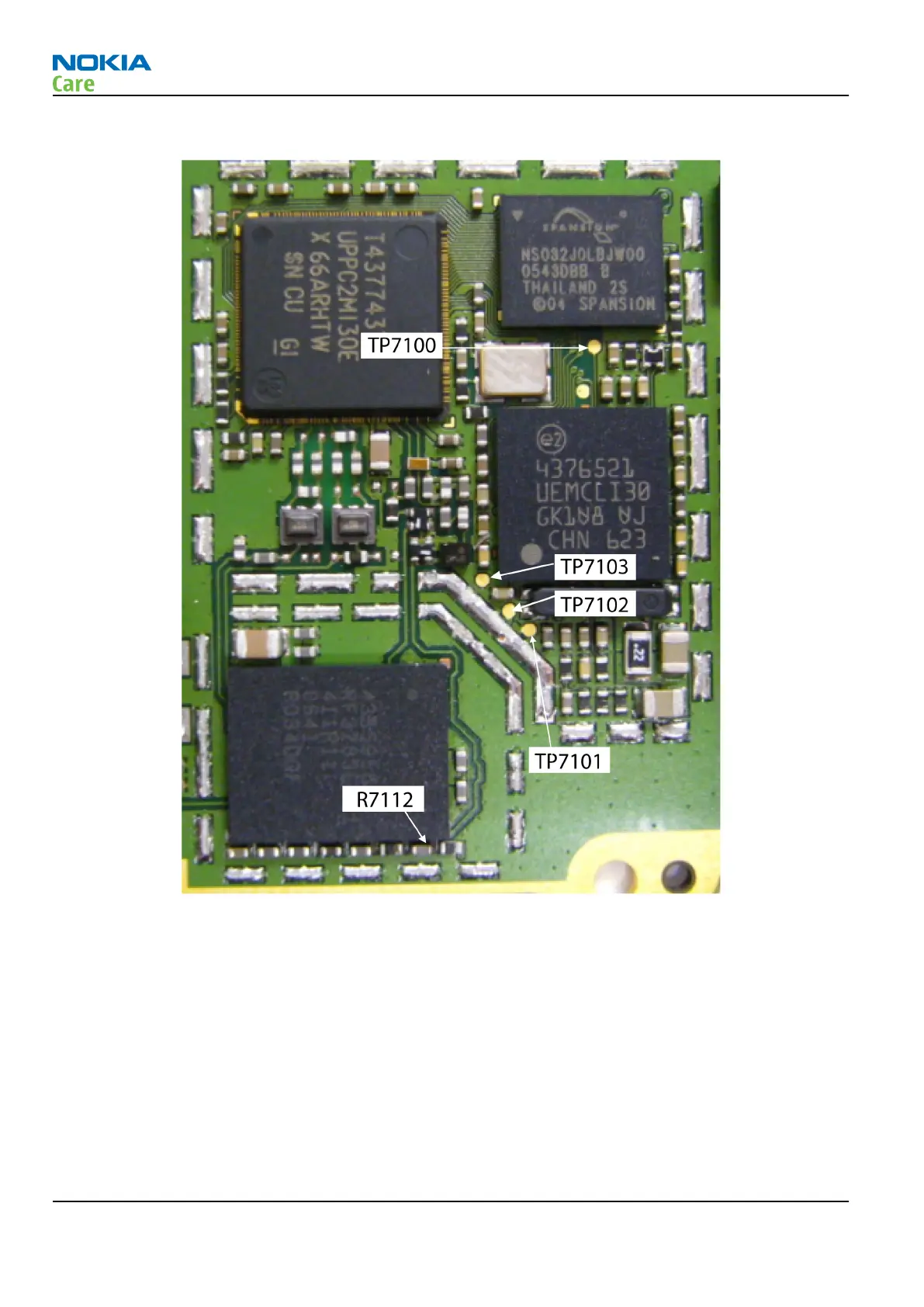

Figure 31 Supply and control points at FEM (N7100) and Litti (D2901)
TXP signal measured at Test Point TP7100
VC1 signal measured at Test Point TP7103
VC2 signal measured at Test Point TP7102
VC3 signal measured at Test Point TP7101
VPC signal measured at Test Point R7112
RH-99; RH-100; RH-105; RH-106
RF troubleshooting
Page 5 –6 COMPANY CONFIDENTIAL Issue 2
