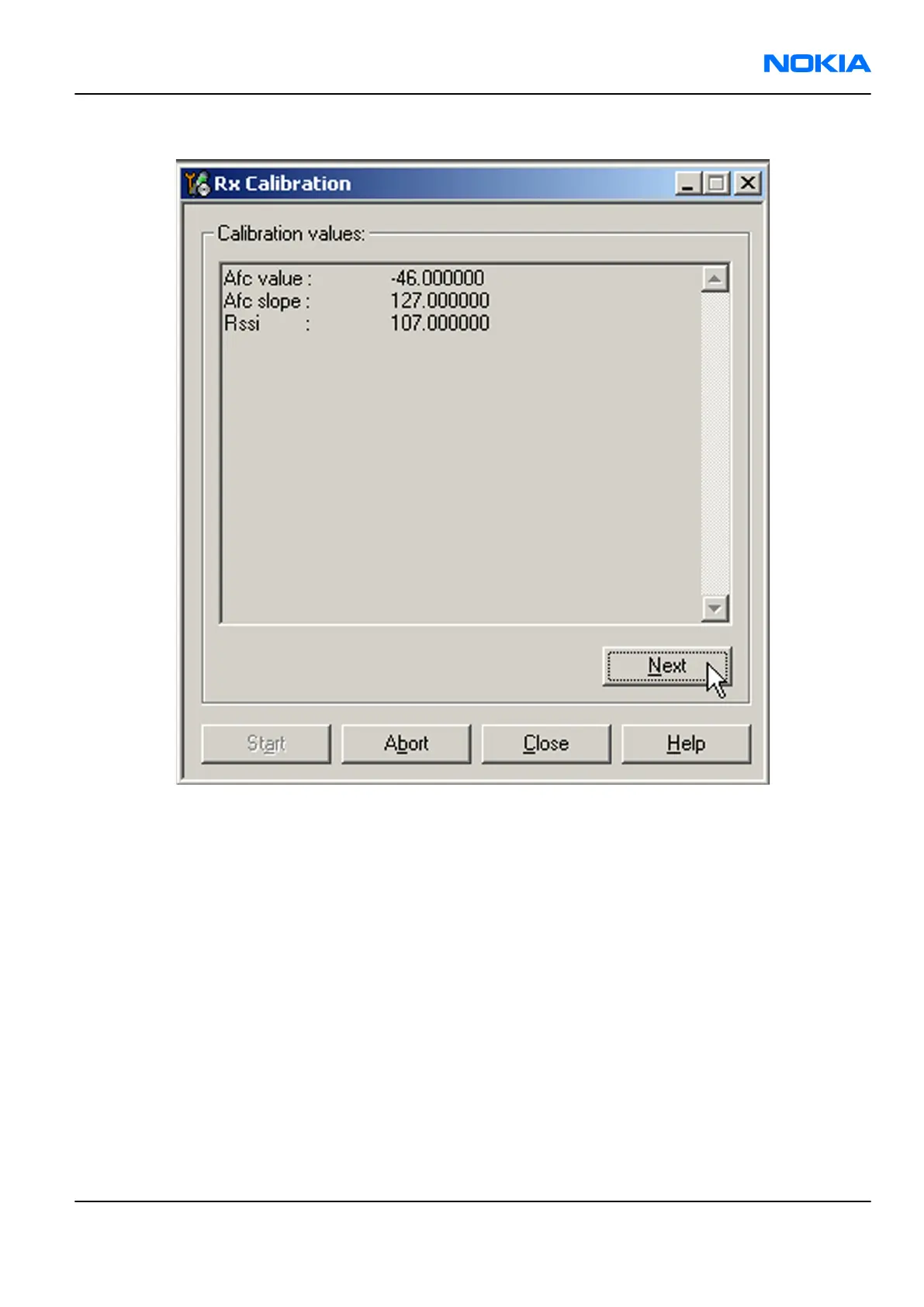

9. Click Next to continue with GSM1800 Rx tuning.
Next actions
Repeat steps 6 to 9 for GSM1800 and GSM1900
Rx band filter response compensation (GSM)
Prerequisites
Rx calibration must be performed before the Rx band filter response compensation.
Context
On each GSM Rx band, there is a band filter in front of the RF ASIC front end. The amplitude ripple caused by
these filters causes ripple to the RSSI measurement, and therefore calibration is needed.
The calibration has to be repeated for each GSM band.
Steps
1. Connect the GSM connector of the module jig to a signal generator.
2. Start
Phoenix
service software.
3. From the Operating mode drop-down menu, set mode to Local.
RM-237
RF Troubleshooting and Manual Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 7 –23
Copyright © 2007 Nokia. All rights reserved.
To Next Page
