SFP-400B 15124:G1 06/24/97
8
1.4 Remote Annunciator

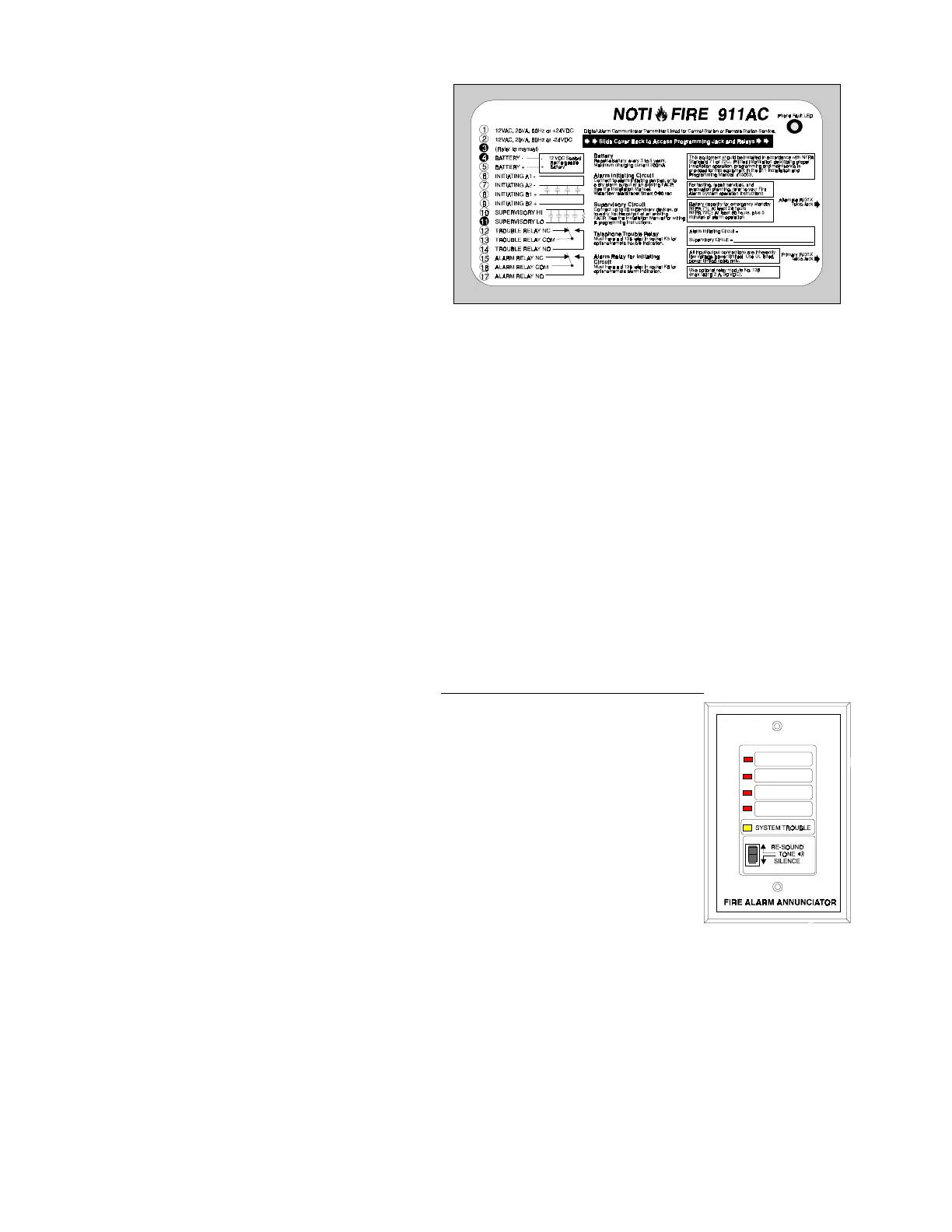

Notifier Remote Annunciator (RZA-4X)
The Remote Annunciator mounts on a standard single-gang box, and provides LED
indication of the following:
• Alarm Zone 1 (red)
• Alarm Zone 2 (red)
• Alarm Zone 3 (red)
• Alarm Zone 4 (red)
• System Trouble LED (yellow)
A Local Trouble Sounder and Silence Switch are also provided. All LED wiring is
supervised for open conditions. Any open condition will cause the System Trouble
LED to illuminate. Slide-in paper labels permit an easy change of zone information.
Note: The Remote Annunciator requires the use of an LED Interface module (4XLM).
911AC Digital Communicator
The Noti•Fire 911AC is a stand-alone, three
channel Digital Alarm Communicator Trans-
mitter (DACT) designed to provide for off-
premises monitoring of a fire alarm control
panel. The 911AC is triggered by the alarm,
trouble, and/or supervisory contacts received
from the control panel and converts them into
digital transmission format. It communicates
with a digital receiver by means of one of two
transmission formats, BFSK or Pulsed Fast
Signal Round format.
Install the Noti•Fire 911AC Digital Communicator in accordance with the 911AC Installation Manual.
Interconnections between the control panel and the digital communicator are illustrated in Figure B-3.
Power Requirements: 24 VDC, 30 mA in Normal; 138 mA while communicating; 166.8 mA with alarm and
trouble relays while communicating.
Retard time and Reset time must be programmed for zero seconds when connecting the alarm initiating
circuit to an existing control panel.
For more detailed instructions, refer to the Noti•Fire 911AC manual, P/N 74-06200-005-A.
Note: 12V panels (SFP-400B) must use the 911AC.
