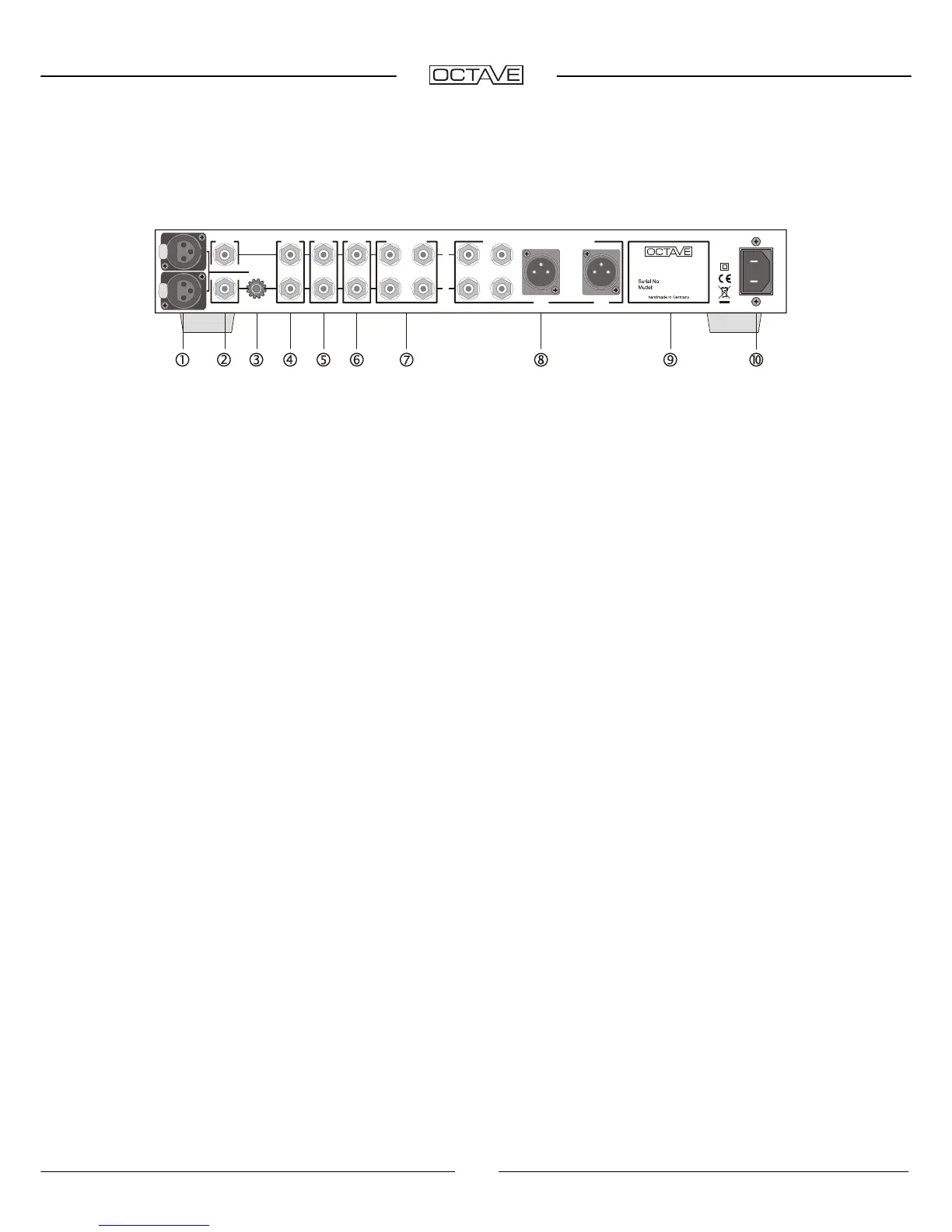

XLR-input for balanced sources like CD-player etc.
PH-input
Model HP 300 MK2 line: This is a normal line-input for high level-units
Model HP 300 MK2 phono: This is the phono MC-input (see "Setting the MC-input")
GND (Ground)-connector
Suggested connection to the corresponding ground wire from your turntable. (See
”Connection reference phono MC”)
Tuner
Single ended input
AUX
Line input for Video, TV or alternatively, as a second function, the input for the front
channels of the multi channel system.
CD
Single ended input
Tape rec. Recording output for tape, cassette- or dat-recorders
Tape play Connect these Inputs to the play-Outputs of your recorder.
Outputs
Two single ended and one balanced output. In the Bypass/ Aux mode the signal is
switched to the OUT 2 and the balanced output. The single ended OUT 1 is furthermore
connected to the volume regulated line stage of the HP 300 MK2 amplifying the AUX
signal. This output can be used for additional earphone amps or similar.
Model identification plate
Model and serial number.
AC-mains receptacle
IEC-Standard AC-mains receptacle
Comment:
In the connection area, the lower socket line (red) is for the right channel, the upper
socket line (white) is for the left channel. Pin configuration XLR-sockets: : 1 = ground, 2
= plus, 3 = minus
