12. TECHNICAL DATA AND DIMENSIONS
In- and Outputs
Inputs 5 x RCA (one is phono MC with the option phono
otherwise its a line level input), 1 x XLR
Bypass-Function for input AUX
Outputs 2 x RCA, 1 x XLR, 1 x Tape Record (RCA)
Line stage
Gain high 17,5 dB = 7,4
Gain low 12,5 dB = 4,2
Frequency response 1 Hz – 1,5 MHz -3 dB
Total harmonic distortion 0.001% at 3V / 7.5 kOhm
Signal-to-noise ratio: high gain - 94 dB
Signal-to-noise ratio: low gain - 100 dB
Channel separation 65 dB 1 kHz
Crosstalk rejection between inputs - 86 dB 10 kHz
Input impedance 100 kOhm
Output impedance 56 Ohms cinch; 2 x 22 Ohms XLR
Channel tracking of volume control 0.5 dB - 70 dB
Pin allocation, XLR output Pin 1: ground, Pin 2: + (hot), Pin 3: - (cold)
Phono MC
RIAA equalization accuracy 0,3 dB 15 Hz - 20 kHz
Subsonic filter corner frequency 15 Hz / - 3 dB
Input impedance 30 - 1000 Ohms
Sensitivity 0.1 mV / 0,5 mV
Gain low 71 dB
Gain high 80 dB
Signal-to-noise ratio (weighted) - 75 dB
General:
Power consumption 25 VA
Weight 9 kg
Standard accessories mains power cord, remote control

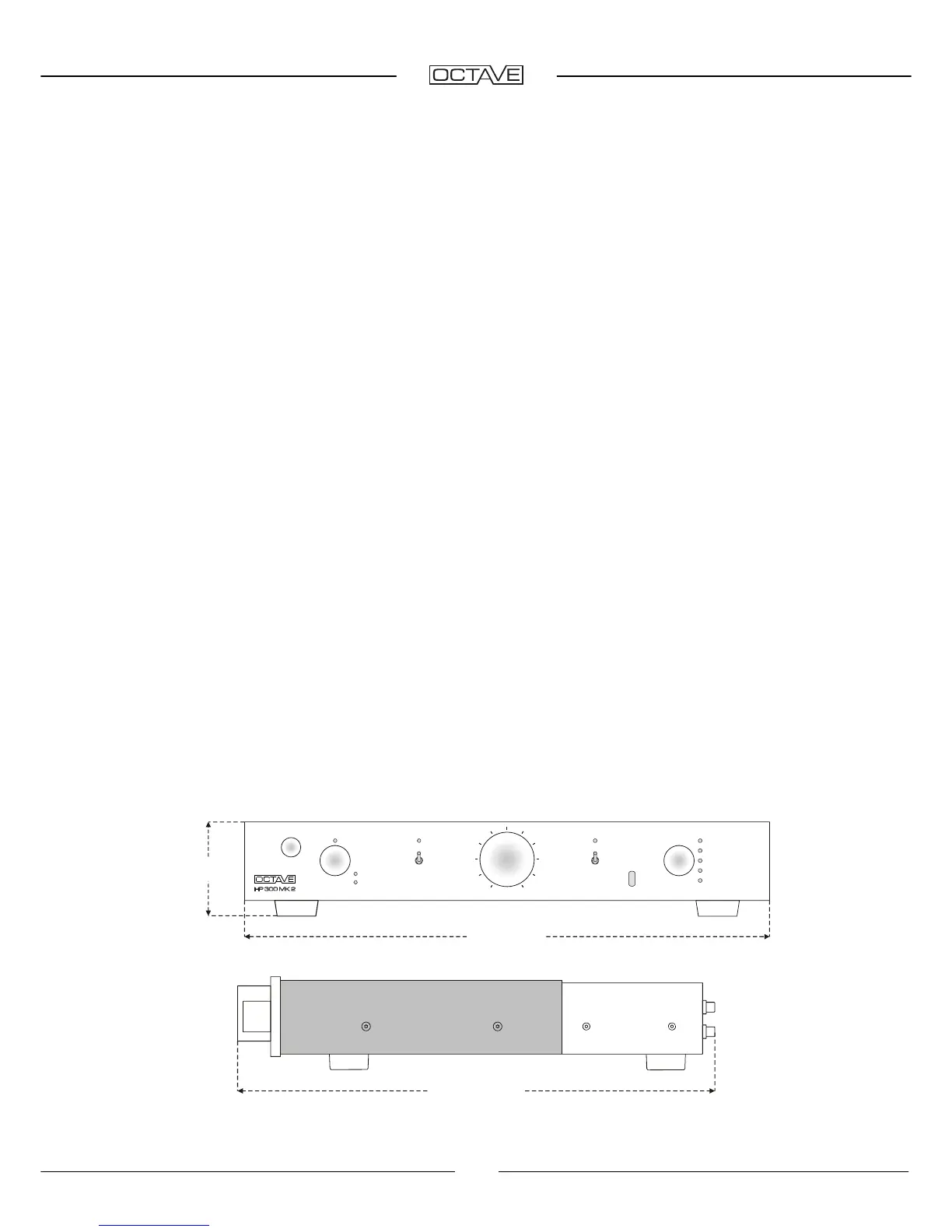

overall dimensions width x height x depth = 435 x 65 x 390 mm
