6. ADVANCED FUNCTION: The bypass mode

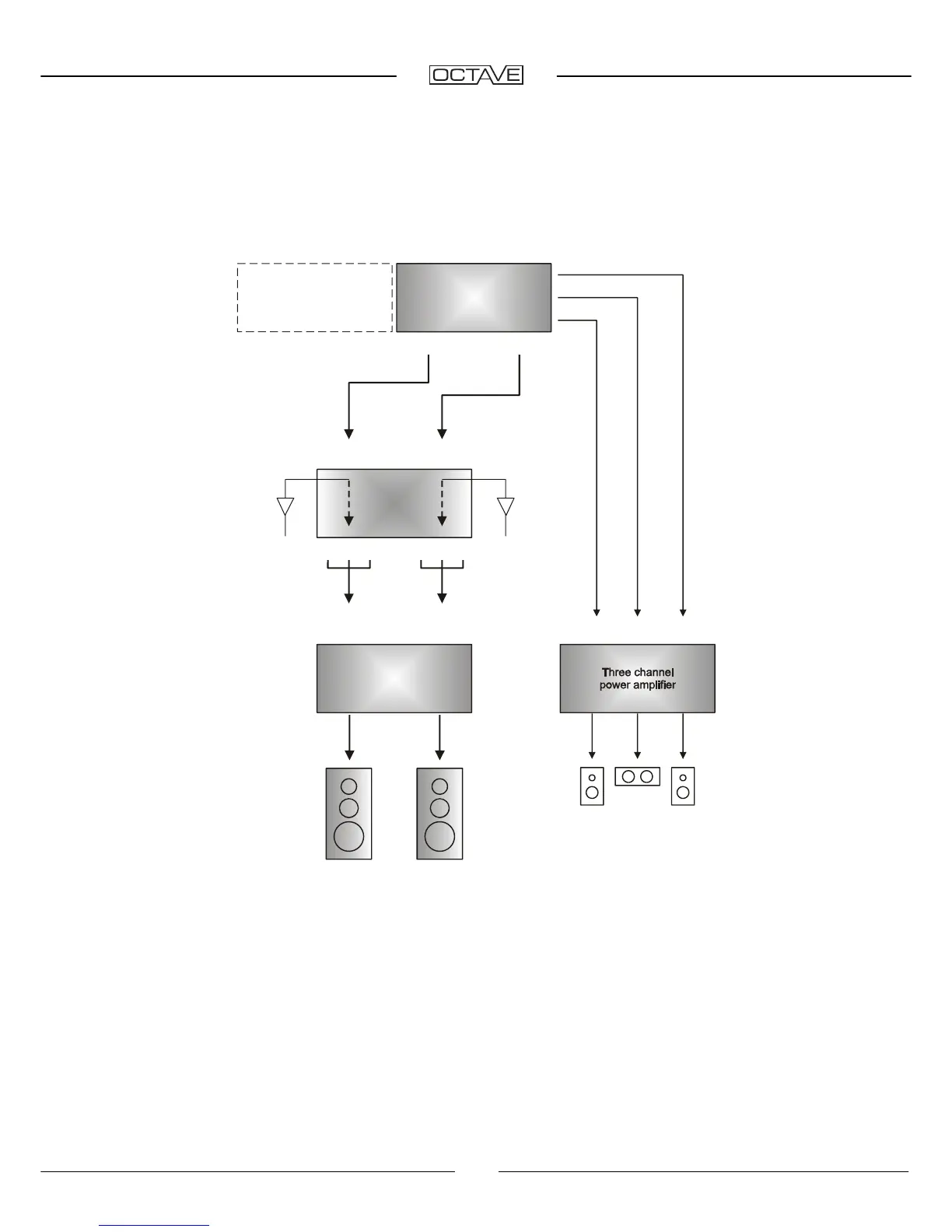

6.1. The HP 300 MK2 in the bypass mode
Multi channel unit
DVD-Player etc.
Front L Front R
HP 300MK2
AUX L
AUX R
Cinch / XLR-
Input L
Cinch / XLR-
Input R
Power amplifier
Front - Main Loudspeakers
Rear L
Center
Rear R
Two channel unit
CD /SACD, Tuner,
Tape etc.
OUT 2 / XLR OUT 2 / XLR
LR
OUT 1OUT 1
In the multi channel mode the common volume of the multi channel system has to be adjusted at
the multi channel source, eg the DVD player, TV, etc. In the bypass mode the volume control of the
HP 300 MK2 is out of function except the output 1.
Special features:
1) The tape record monitor function is also available in bypass mode. Tape monitoring is given
on out 1. Tape switch
 in position "tape"
2) The AUX multi channel signal is present as well on out 1 regulated and amplified. Tape
switch
 in position "source"
