OPERATION

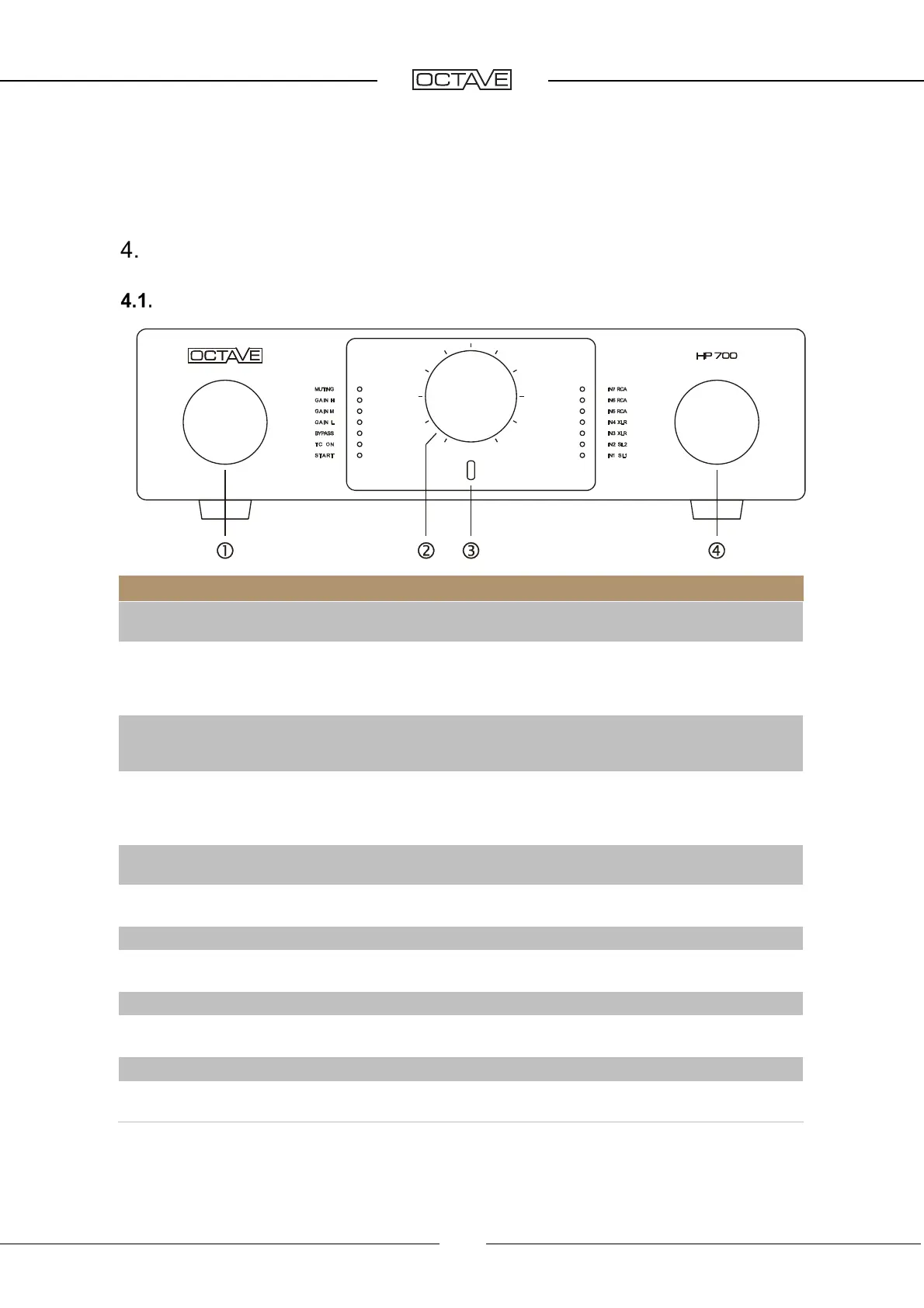

HP 700 front panel
10
OPERATION
HP 700 front panel
Legend
(1) Mode switch
(function switch)
The muting, line stage gain, home theater bypass multi-channel func-
tion, and tone control are activated here.
Muting The muting LED illuminates when muting is on and during the start-up
phase. In this setting, the preamplifier outputs are short-circuited and
music cannot be played. This switch position should be activated while
connecting source devices to the HP 700.
Gain Low, Med, and High The gain setting can be selected according to the efficiency of the other
components. When you change the position of the switch, the muting
function is activated for 20 seconds to prevent switching malfunctions.
Bypass HT In this setting, the gain of the line stage is 1 and the volume control is
bypassed. This setting is intended for multi-channel applications with
volume control on the multi-channel receiver. The bypass HT RCA in-
put is separate; the bypass function can be switched to an XLR input.
TC On This LED illuminates if the tone control is on (only available for control
unit option, see section 11.3, page 27)
Start This LED only illuminates during the two-minute start-up phase. During
this period, the muting LED also illuminates.
(2) Volume control
(Also optionally available as a step switch, see section 11.4)
(3) IR sensor
To ensure the correct function of the remote control, make sure that
the infrared sensor is not covered.
(4) Input selector switch
For input selection. The selected input is indicated with an LED.
IN1-SL1, IN2-SL2 Input module 1
Input module 2
The signal LEDs for IN1 and IN2 only il-
luminate if a module is installed!
IN3-XLR, IN4-XLR XLR input for line-level sources
IN5-RCA, IN6-RCA,
IN7-RCA
RCA input for line-level sources
