89
Manual T
uning
◼
How to Perform Manual T
uning

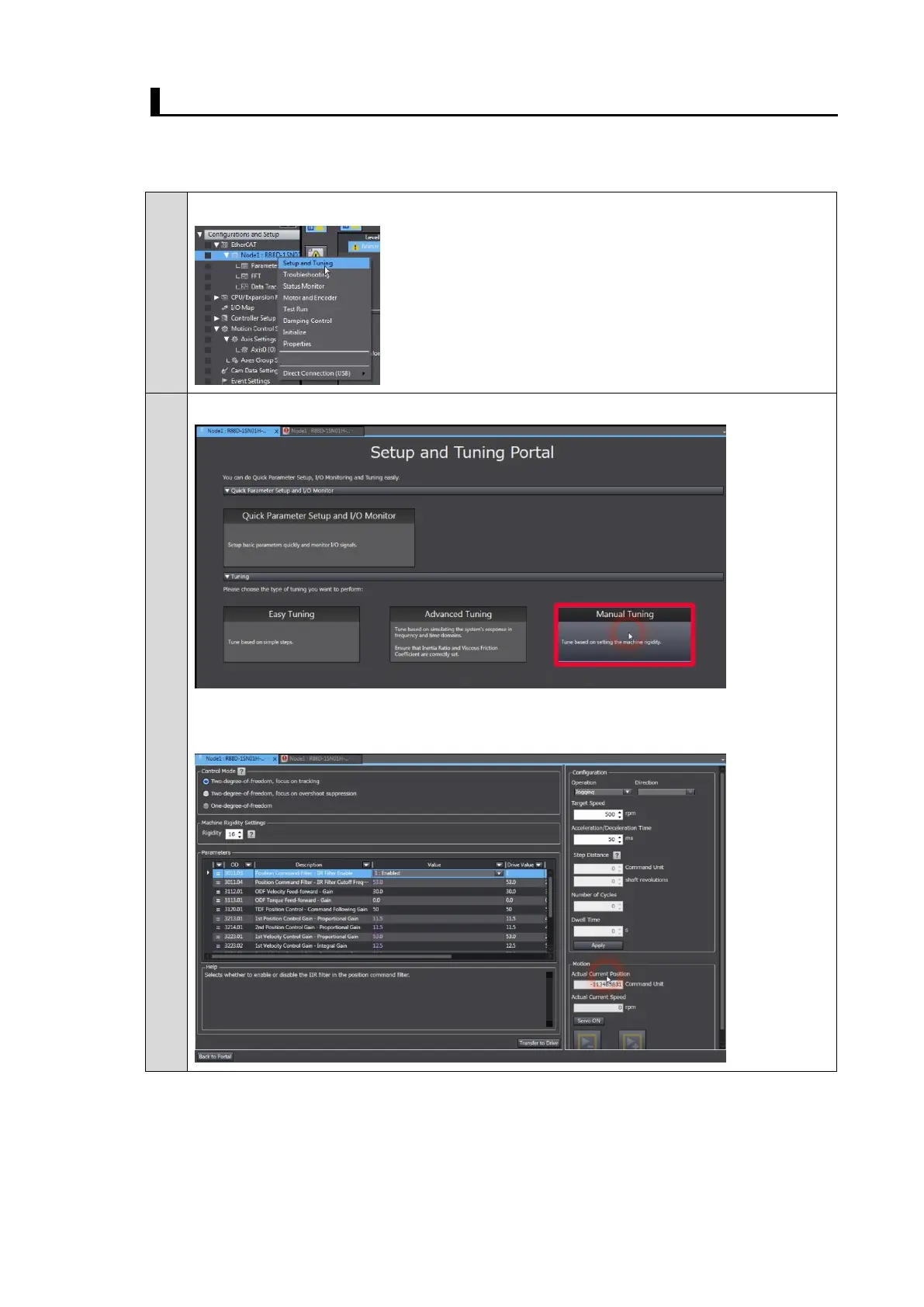

This section describes how to change machine rigidity parameters for gain adjustment.
1.
Right
-
click the Servo Drive and select
Setup and Tuning
fro
m the menu.
2.
Click the
Manual Tuning
Button.
The Manual T
uning Window is displayed.
It includes machine rigidity settings, gain parameters, and Servo Drive test run.
