ZEN V2 Units
6
Accessories (Order Separately)
Note: 1. Memory Cassettes created using a CPU Unit can be read to other CPU Units, regardless of which model is used. Restrictions, apply, however,
to the functions that can be used, depending on the CPU Unit version combination. For details, refer to Memory Cassette and CPU Unit
Combinations on page 31.
2. Standard LCD-type, Economy-type, and Communications-type CPU Units (i.e., excluding ZEN-@C2@@-@-V2 models).
3. LED-type CPU Unit without display (i.e., ZEN-@C2@@-@-V2 models).
Mounting Accessories (Order Separately)

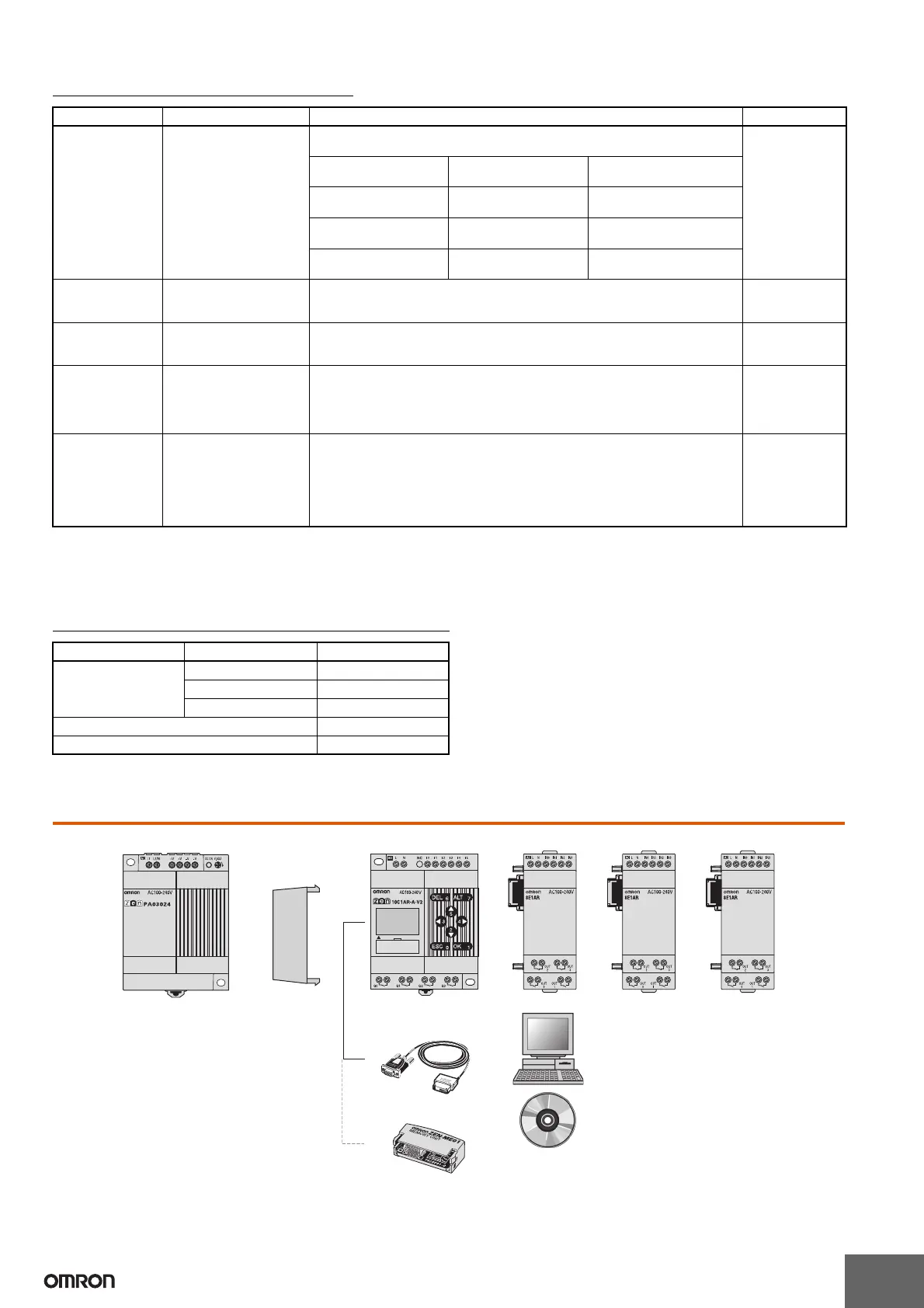

System Configuration
Note: 1. Up to 3 Expansion I/O Units can be connected to any type of CPU Unit except for Economy-type CPU Units. Expansion I/O Units with AC Inputs,
however, cannot be connected to CPU Units with DC Power Supplies.
2. The Connecting Cable and Memory Cassette cannot be connected to the ZEN at the same time.
3. Programs cannot be written to LED-type CPU Units (i.e., ZEN-@C2@@-@-V2 models) without the ZEN Support Software or a Memory Cassette.
Name Specifications Remarks Model
Memory Cassette EEPROM (for data
security and copying)
Enables programs and parameter settings to be saved or copied to another
ZEN. (See note 1.)
ZEN-ME01
LCD-type CPU Unit with
display (See note 2.)
LED-type CPU Unit without
display (See note 3.)
Transfer from ZEN to
Memory
Supported Not supported
Transfer from Memory
Cassette to ZEN
Supported Automatic transfer when
power turned ON
Memory Cassette
initialization
Supported Not supported
Connecting Cable 2 m RS-232C (9-pin D-
sub connector)
For notebook computers that do not have an RS-232C serialport, connect the
computer to the ZEN by connecting an OMRON CS1W-CIF31 USB-Serial
Conversion Cable to the ZEN-CIF01 Connecting Cable.
ZEN-CIF01
USB-Serial
Conversion Cable
0.5m USB (type A plug,
male), RS-232C (D-sub
9-pin, male)
Attached drivers (On CD-ROM) CS1W-CIF31
Battery Unit 10 years min. Battery life
(at 25°C)
Ladder programs and parameter settings are saved to the CPU Unit EEP-ROM
but calendar, clock, and holding timer bits and holding timer/counter present
values are held by the capacitor. Therefore, if the power supply is interrupted
for 2 days or more (at 25°C), this data will be reset. Use a Battery Unit for
systems where the power supply may be interrupted for long periods.
ZEN-BAT01
ZEN Support
Software
Runs on Windows 95, 98,
2000, Me, XP, NT4.0
Service Pack3, Vista
(32bit), Windows7 (32-
bit/64-bit version),
Windows10 (32-bit/64-bit
version)
Specifically designed for the ZEN (CD-ROM). ZEN-SOFT01-V4
Name Specifications Model
Mounting Track 50 cm (l) × 7.3 mm (t) PFP-50N
1 m (l) × 7.3 mm (t) PFP-100N
1 m (l) × 16 mm (t) PFP-100N2
End Plate PFP-M
Spacer PFP-S
CPU UnitPower Supply Unit
Connecting Cable
Support Software
Memory Cassette
Battery Unit
Expansion I/O Units
