Omron E2E series User Manual

7
．
IO-Link Connection Procedure
19
5

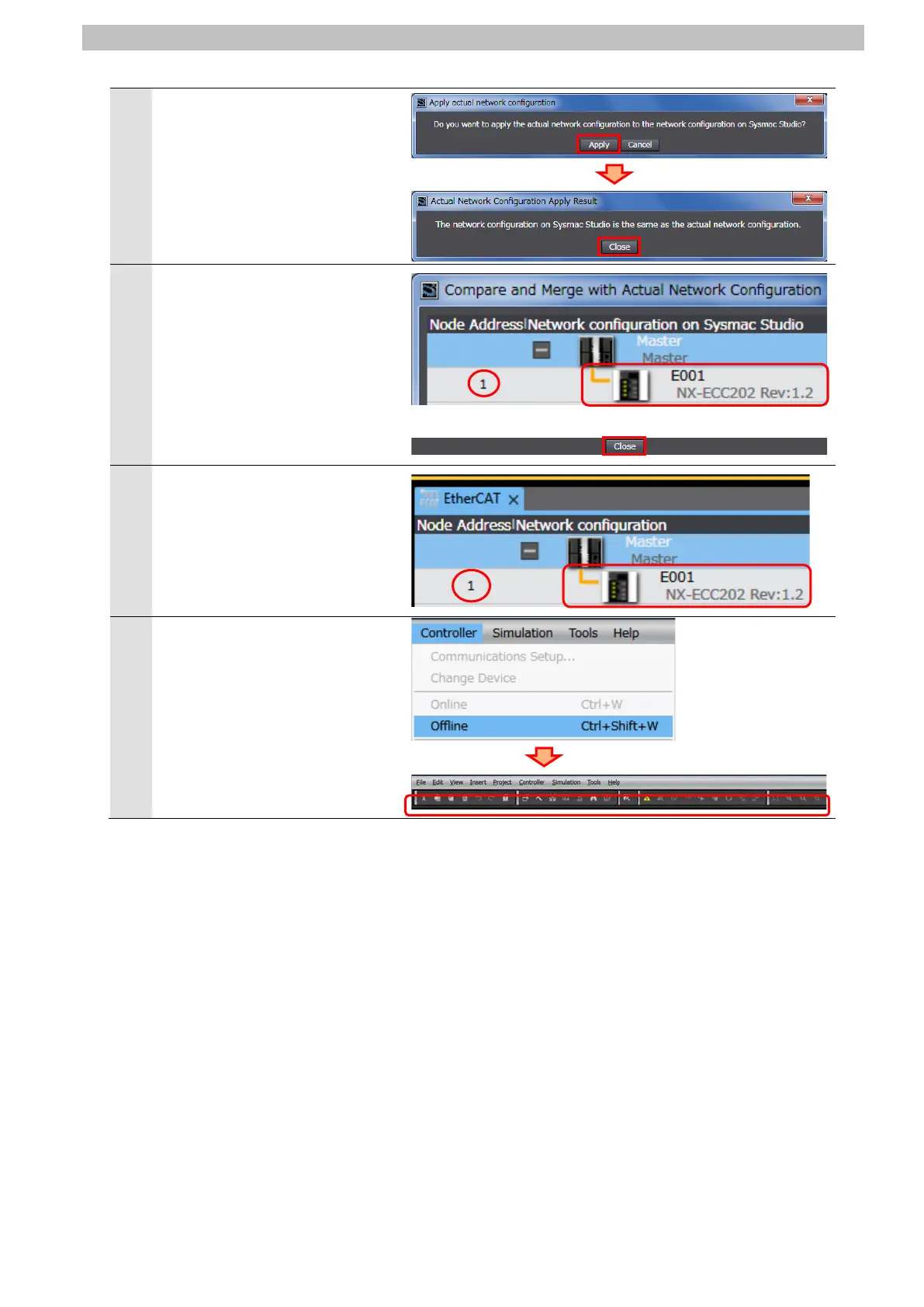

A confirmation dialog box is
displayed. Check the contents
and click Apply.
The confirmation dialog box on
the right is displayed. Check the
contents and click Close.
6
As a node address 1 slave,
E001 NX-ECC202 Rev:1.2 is
added to the Network
configuration on Sysmac Studio.
Check that the data above is
added. Click
Close
.
7
Node address 1 and E001
NX-ECC202 Rev:1.2 are added
to the EtherCAT Tab Page in the
Edit Pane.
8
Select Offline from the
Controller Menu.
The yellow bar under the toolbar
disappears.
