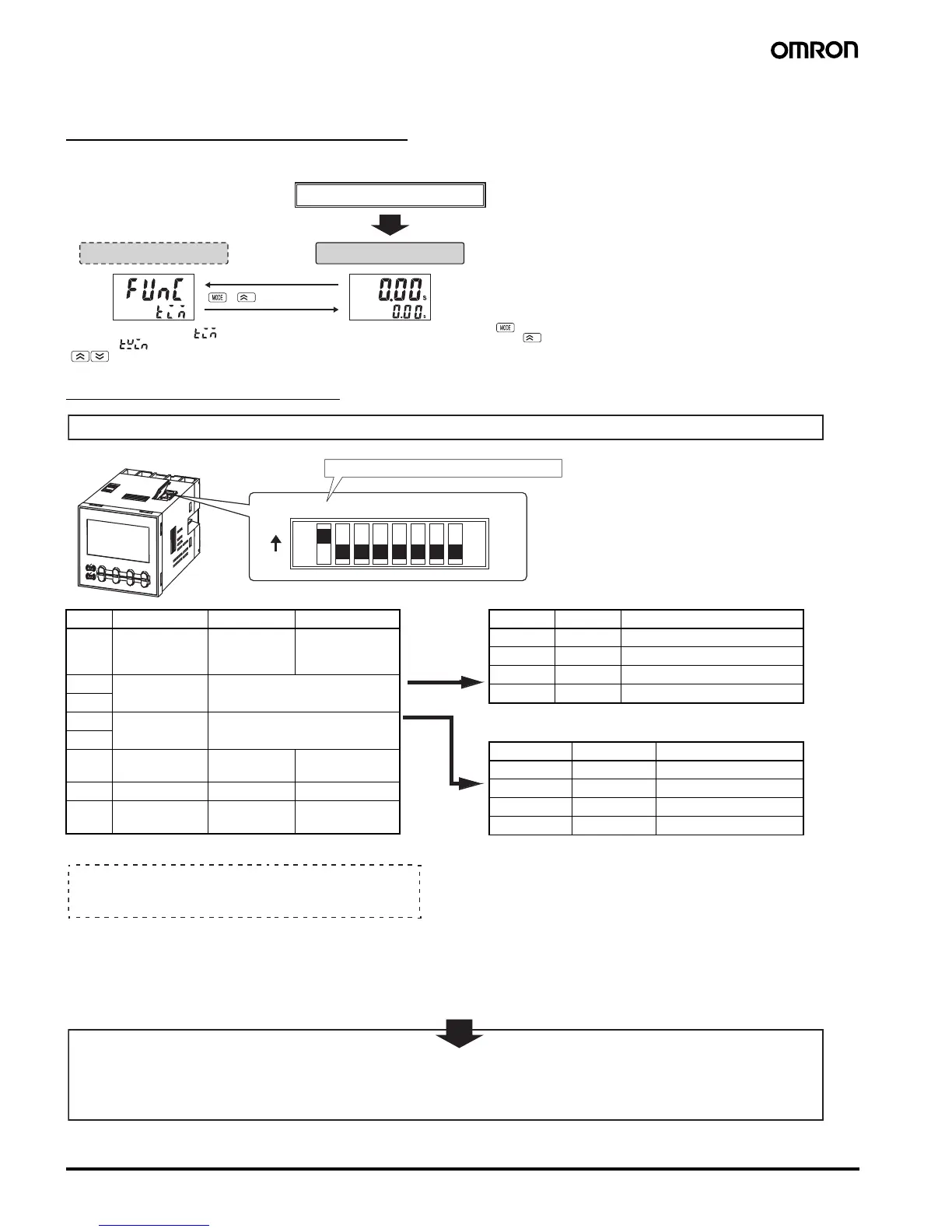

26 Multifunction Digital Timer H5CX-A/-L (Twin Timer Function)
■ Operating Procedures (Twin Timer Function)
Switching from Timer to Twin Timer
The H5CX is factory-set for timer operation. To switch to twin timer operation, use the procedure given below. For details, refer to page 32.
Settings for Basic Functions
Note:All the pins are factory-set to OFF.
Note 1. Be sure to set pin 1 of the DIP switch to ON. If it is set to OFF, the DIP switch settings will not be enabled.
2. Changes to DIP switch settings are enabled when the power is turned ON. (Perform DIP switch settings while the power is OFF.)
3. There is no DIP switch on the H5CX-L8@. For details on the setting methods, refer to page 27.
4. When using time ranges that cannot be set with the DIP switch, all of the settings have to be made using the operation keys. For details
on the setting methods, refer to page 27.
1
+
Power ON
Timer/twin timer selection mode Run mode
Timer/
twin timer
selection
Hold down for 1 s
min. (See note.)
Switch from timer operation ( ) to
twin timer ( ) operation using the
keys.
1
Note: The key must be pressed
before the key.
12345678
OFF
ON
Settings for basic functions can be performed with just the DIP switch.
Be sure to set pin 1 to ON when using the DIP switch.
Item OFF ON
1 DIP switch set-
tings enable/
disable
Disabled Enabled
2 OFF time range Refer to the table on the right.
3
4 ON time range Refer to the table on the right.
5
6ON/OFF start
mode
Flicker OFF
start
Flicker ON start
7 Timer mode UP DOWN
8 Input signal
width
20 ms 1 ms
Easy Confirmation of Switch Settings Using Indicators
The ON/OFF status of the DIP switch pins can be confirmed
using the front display. For details, refer to page 31.
Pin 2 Pin 3 OFF time range
OFF OFF 0.01 s to 99.99 s
ON OFF 0.1 s to 999.9 s
OFF ON 1 s to 9999 s
ON ON 0 min 01 s to 99 min 59 s
Pin 4 Pin 5 ON time range
OFF OFF 0.01 s to 99.99 s
ON OFF 0.1 s to 999.9 s
OFF ON 1 s to 9999 s
ON ON 0 min 01 s to 99 min 59 s
Detailed Settings
After making DIP switch settings for basic functions, detailed settings (see note) can be added using the operation keys.
For details, refer to page 27.
Note: NPN/PNP input mode, display color, key protect level.
To Next Page
