2-stage Digital Timer H5CX-B 39
Connections

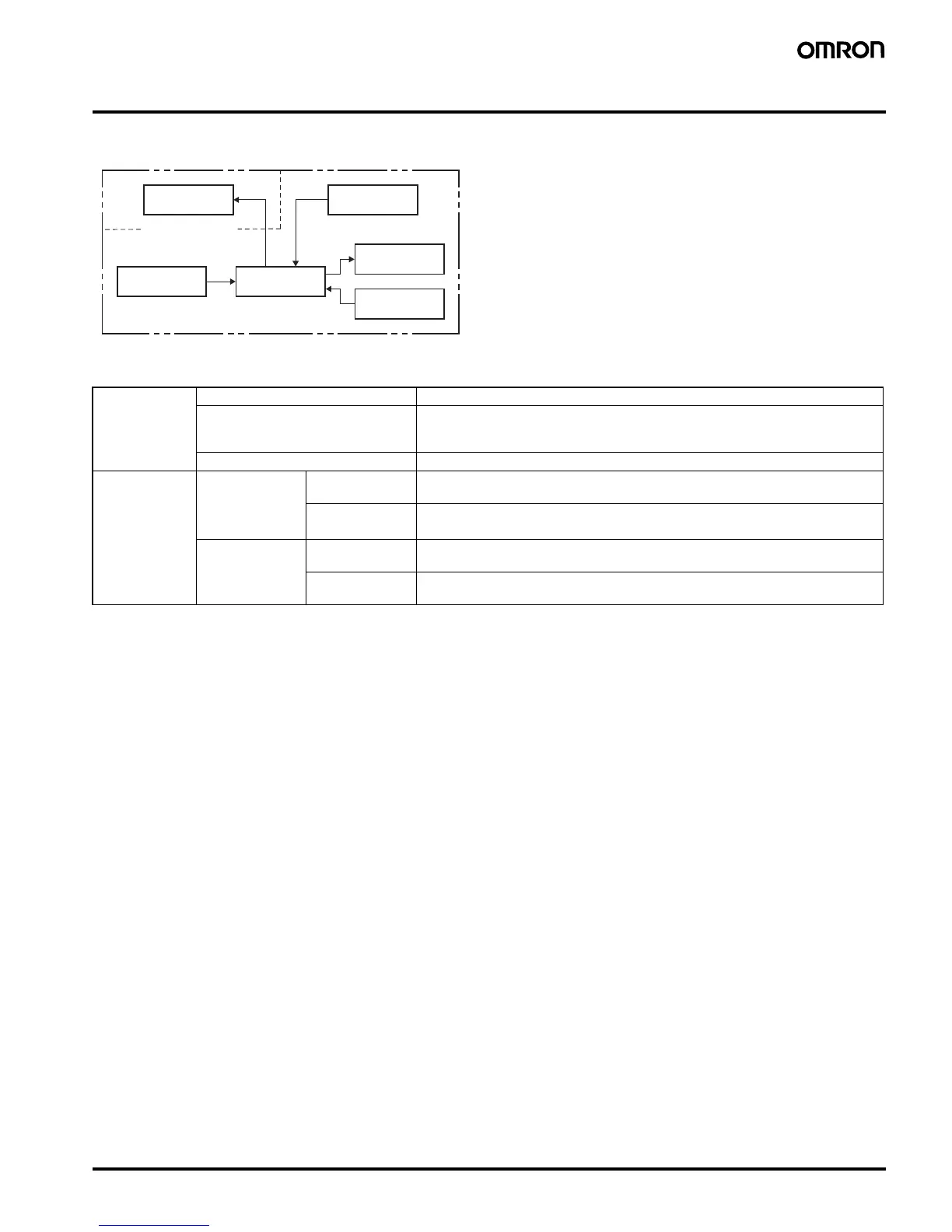

■ Block Diagram
■ I/O Functions
Output circuit
Input circuit
Internal control
circuit
Power supply
circuit
Display circuit
Key switch
circuit
(Basic insulation)
Inputs Start signal Starts timing.
Reset Resets present value. (The present value returns to 0.)
Timing stops and control output turns OFF while reset input is ON.
Reset indicator is lit while reset input is ON.
Gate Inhibits timer operation.
Outputs Forecast value
setting
Control output
(OUT2)
Turns ON when the present value reaches the set value.
Forecast output
(OUT1)
Turns ON when the present value reaches the forecast value.
The forecast value = set value
- forecast set value
Absolute value
setting
Control output 2
(OUT2)
Turns ON when the present value reaches set value 2.
Control output 1
(OUT1)
Turns ON when the present value reaches set value 1.
