2-stage Digital Timer H5CX-B 43

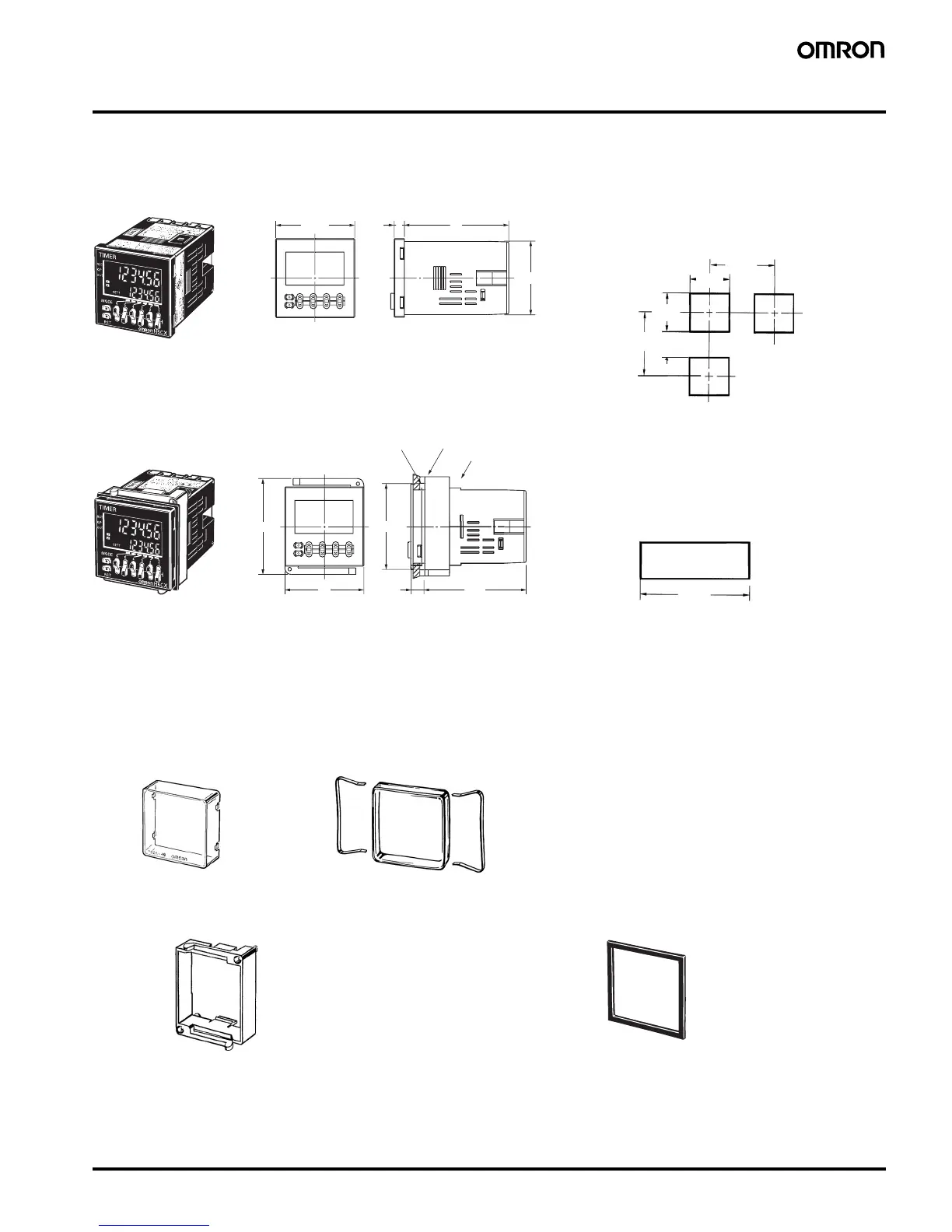

Dimensions
Note: All units are in millimeters unless otherwise indicated.
■ Dimensions without Flush Mounting Adapter
H5CX-BWSD (Flush Mounting Models)
■ Dimensions with Flush Mounting Adapter
H5CX-BWSD (Provided with Adapter and Waterproof Packing)
■ Accessories (Order Separately)
Note: 1. Depending on the operating environment, the condition of
resin products may deteriorate, and may shrink or become
harder. Therefore, it is recommended that resin products
are replaced regularly.
2. The H5CX’s panel surface is water-resistive (conforming to
IP66) and so even if drops of water penetrate the gaps be-
tween the keys, there will be no adverse effect on internal
circuits. If, however, there is a possibility of oil being present
on the operator’s hands, use the Soft Cover. The Soft Cover
ensures protection equivalent to IP54F against oil. Do not,
however, use the H5CX in locations where it would come in
direct contact with oil.
Note: Order the Flush Mounting Adapter separately if it is lost or dam-
aged.
Note: Use Waterproof Packing to provide a level of water protection
that complies with NEMA4, UL Type 4X, or IP66 standards. Or-
der the Waterproof Packing separately if it is lost or damaged.
Depending on the operating environment, the Waterproof
Packing may deteriorate, contract, or harden and so regular re-
placement is recommended.
A
45
+0.6
−0
45
+0.6
−0
+1
0
A = {48n−2.5 + (n−1) x 4}
+1
0
A = (51n−5.5)
+1
0
A = (48n − 2.5)
Panel Cutouts
60 min.
60 min.
With Y92A-48F1 attached.
With Y92A-48 attached.
15 min.
n side by side mounting
Note 1. The mounting panel thickness
should be 1 to 5 mm.
2. To allow easier operability, it is
recommended that Adapters are
mounted so that the gap between
sides with hooks is at least 15 mm.
3. It is possible to mount timers side
by side, but only in the direction
without the hooks.
Panel cutouts areas
shown below.
(according to DIN43700).
44.
