4 Installation and Wiring
4 - 26
NX-series Position Interface Units User’s Manual (W524)

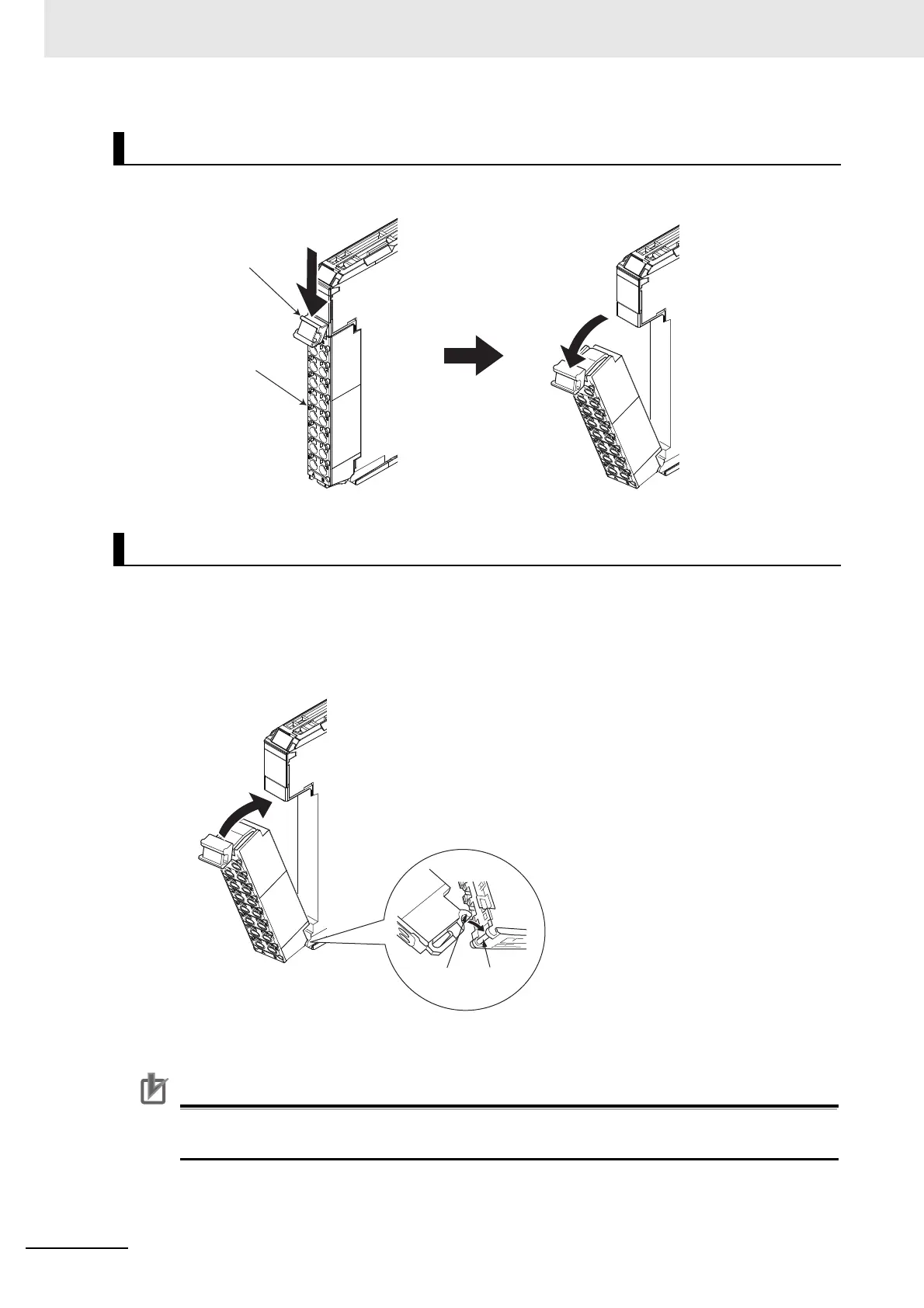

1 Press the lock lever on the terminal block and pull out the top of the terminal block to remove it.
1 Mount the terminal block hook on the guide at the bottom of the NX Unit, lift up the terminal
block, and press in on the top of the terminal block until you hear it engage.
The terminal block will click into place on the Unit.
After you mount the terminal block, make sure that it is locked to the Unit.
Precautions for Correct Use
Mount a Terminal Block that is applicable to each Unit model. Refer to 3-3 Terminal Blocks on
page 3-5 for the applicable Terminal Blocks.
Removing a Terminal Block
Attaching a Terminal Block
To Next Page
