3-76
3-4 Cable and Connector Specifications
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
3
Specifications

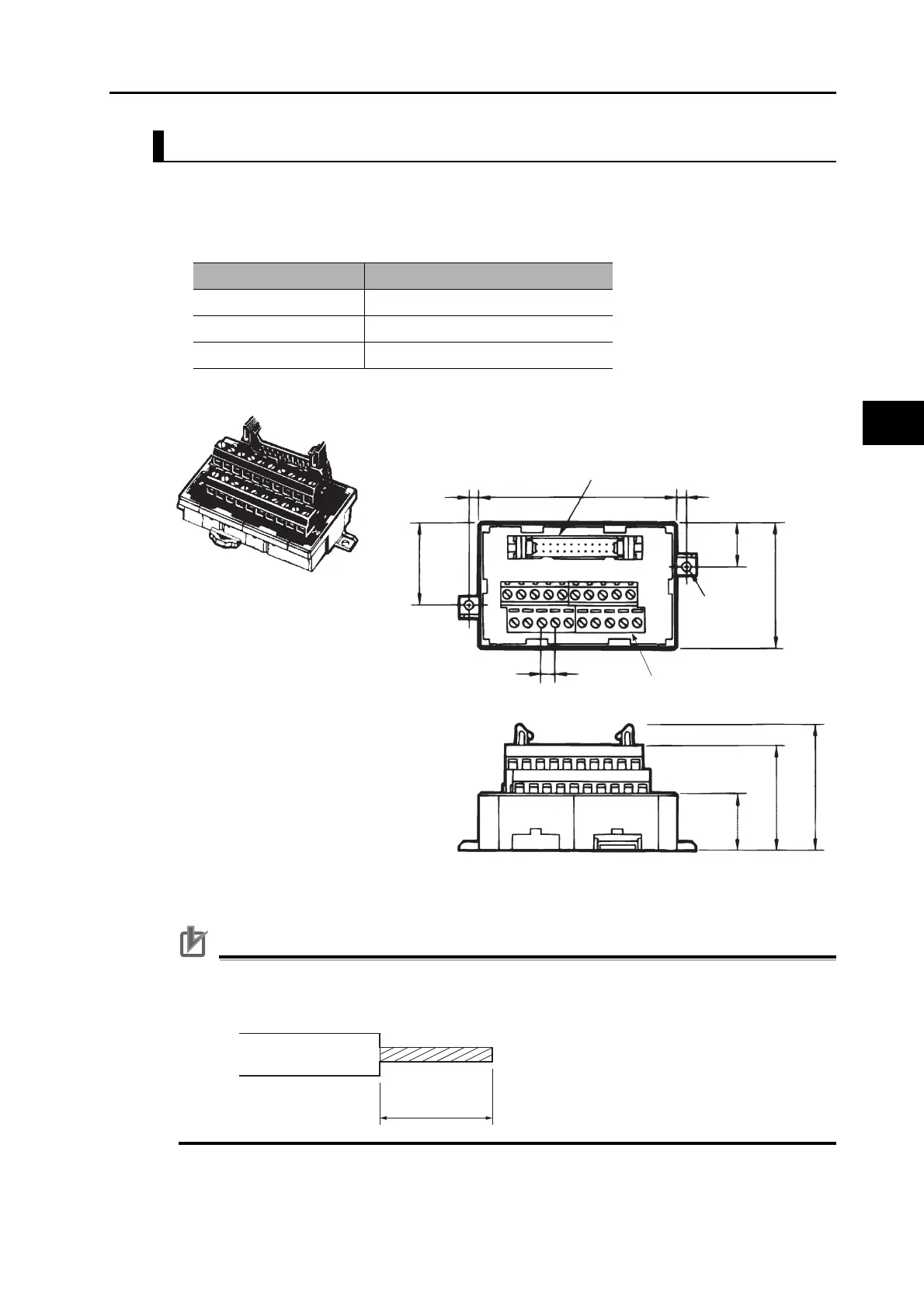

Connector-Terminal Block Conversion Unit (XW2B-20G@)
The Unit is used with a Connector Terminal Block Cable (XW2Z-@J-B34). They convert the
control input signal (CN1) of the G5-series Servo Drive into a terminal block.
Terminal Block Models
XW2B-20G4
Precautions for Correct Use
 Use 0.3 to 1.25 mm
2
wire (AWG22 to 16).
 The wire inlet is 1.8 mm (height) × 2.5 mm (width).
 Strip the insulation from the end of the wire for 6 mm as shown below.
Model Description
XW2B-20G4 M3 screw terminal block
XW2B-20G5 M3.5 screw terminal block
XW2D-20G6 M3 screw terminal block
3.5 3.5
2-
φ
3.5
67.5
5.08
29.5
15.520.5
38.1
(45.3)
45
2
1
1
2
20
19
19
20
Terminal block
Flat cable connector (MIL type plug)
Dimensions
6 mm
