S8VS
24

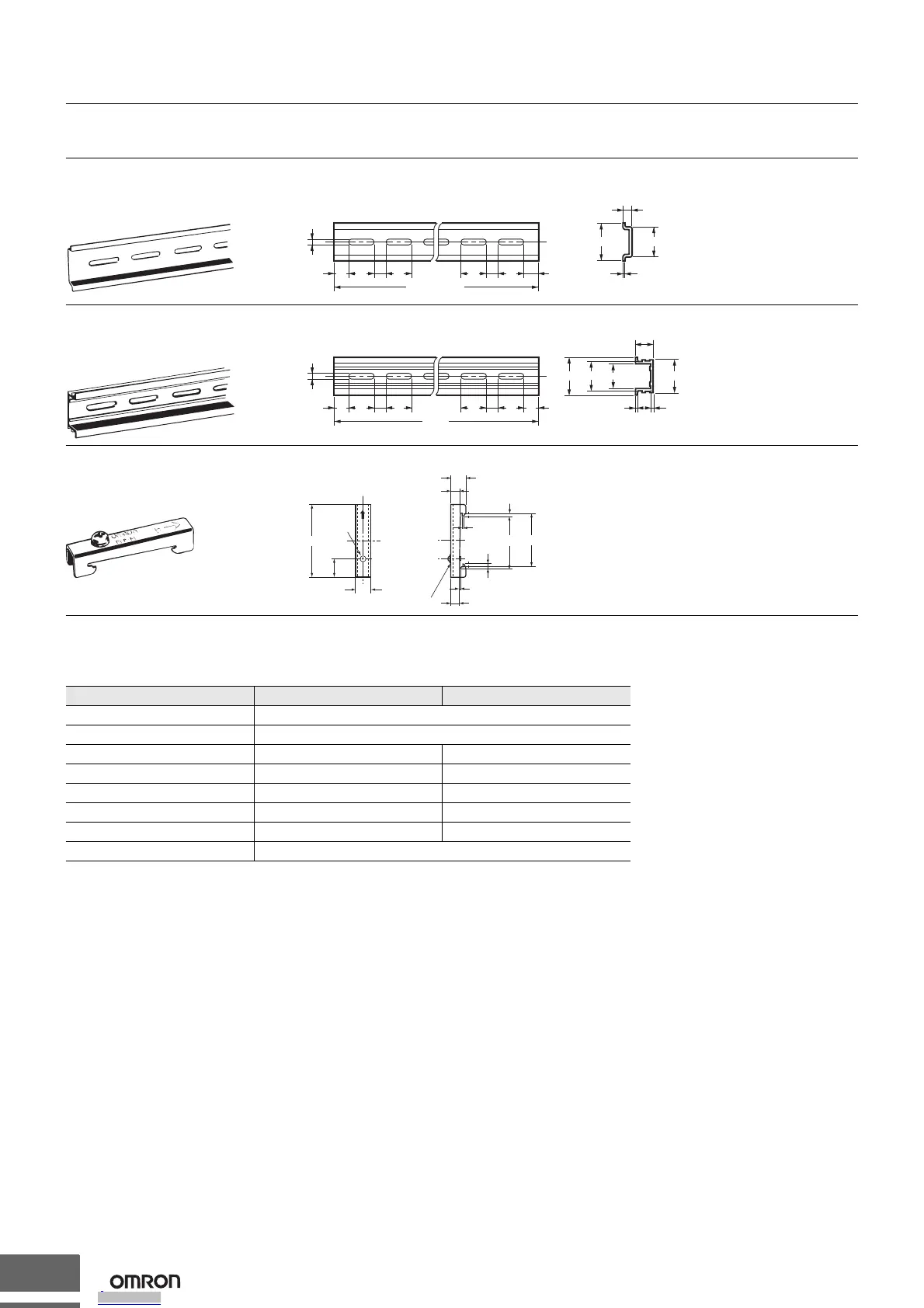

DIN Rail (Order Separately)
Note: All units are in millimeters unless otherwise indicated.
Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from
aluminum abrasion.
Terminal Block Cover (Order Separately)
Note: Terminal block cover attaches to the body. Please order from the loss time.
4.5
15 25 25
10 10
1,000 (500) *
25 25 15(5) *
35
±
0.3
7.3
±
0.15
27
±
0.15
1
* Values in parentheses are for the PFP-50N.
4.5
15 25 25
10 10
1,000
25 25 15
1 1.5
29.2242735
±
0.3
16
1.3
4.8
35.5
35.5
1.8
1.8
10
6.2
1
50
11.5
10
M4 spring washer
M4×8 pan-
head screw
S8VS Input side Output side
15W S82Y-VS-C2P-S
30W S82Y-VS-C2P-S
60W S82Y-VS-C3P S82Y-VS-C2P-M
90W S82Y-VS-C3P S82Y-VS-C2P-M
120W S82Y-VS-C3P S82Y-VS-C2P-M
180W S82Y-VS-C3P S82Y-VS-C4P
240W S82Y-VS-C3P S82Y-VS-C4P
480W S82Y-VS-C3P
