6-3
EXHAUST MANIFOLD
WARNING
Accidental or remote starting can
cause severe personal injury or death. Before
removing a panel or access door, disconnect
the negative (–) cable at the battery to prevent
the engine from starting.

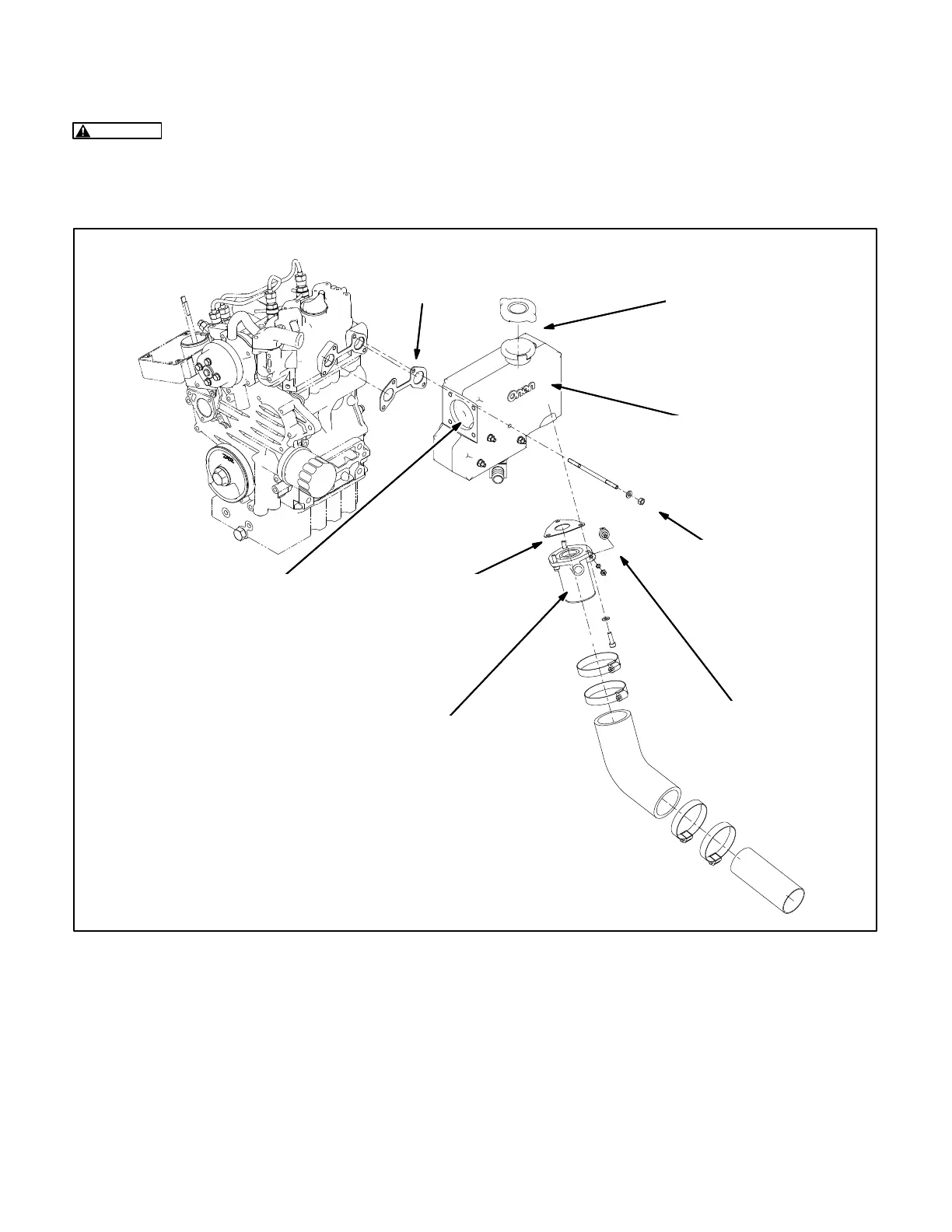

Figure 6-4 illustrates how the exhaust system is as-
sembled. Remove the front and top access doors
and the right side panel for access (Page 5-1).
Use new manifold and mixer gaskets when re-
assembling. Torque the 4 manifold nuts and the 3
mixer bolts to 8 lb-ft (11 N-m).
EXHAUST MANIFOLD /
COOLANT RESERVOIR
WATER–EXHAUST
MIXER
HIGH EXHAUST
TEMPERATURE
SWITCH
COOLANT SYSTEM FILL
AND PRESSURE CAP
MANIFOLD
STUD, FLAT
WASHER AND
NUT(4)
MANIFOLD
GASKET
SEE ENGINE COOLING
SYSTEM (P. 4-12)
REGARDING HEAT
EXCHANGER AND HOSE
CONNECTIONS
GASKET
FIGURE 6-4. EXHAUST MANIFOLD
