7-1
7. Generator Drive
OVERVIEW
The engine drives the generator by means of a 6-rib
“Poly-Vee” belt (Figure 7-1). The drive pulley is
mounted on the engine flywheel by means of a flex-
ible coupling. The generator pulley is center-bolted
to the tapered end of the rotor shaft. The pulley must
be removed to remove the generator rotor from the
engine-generator adapter.
ENGINE-GENERATOR
ADAPTER
ENGINE FLYWHEEL
DRIVE
PULLEY
FLEXIBLE COUPLING
AND HUB
DRIVE BELT
BELT TENSION-
ER ASSEMBLY
GENERATOR
PULLEY
GENERATOR
INLET AIR
DUCT
ENGINE CRANKSHAFT
GENERATOR
ROTOR

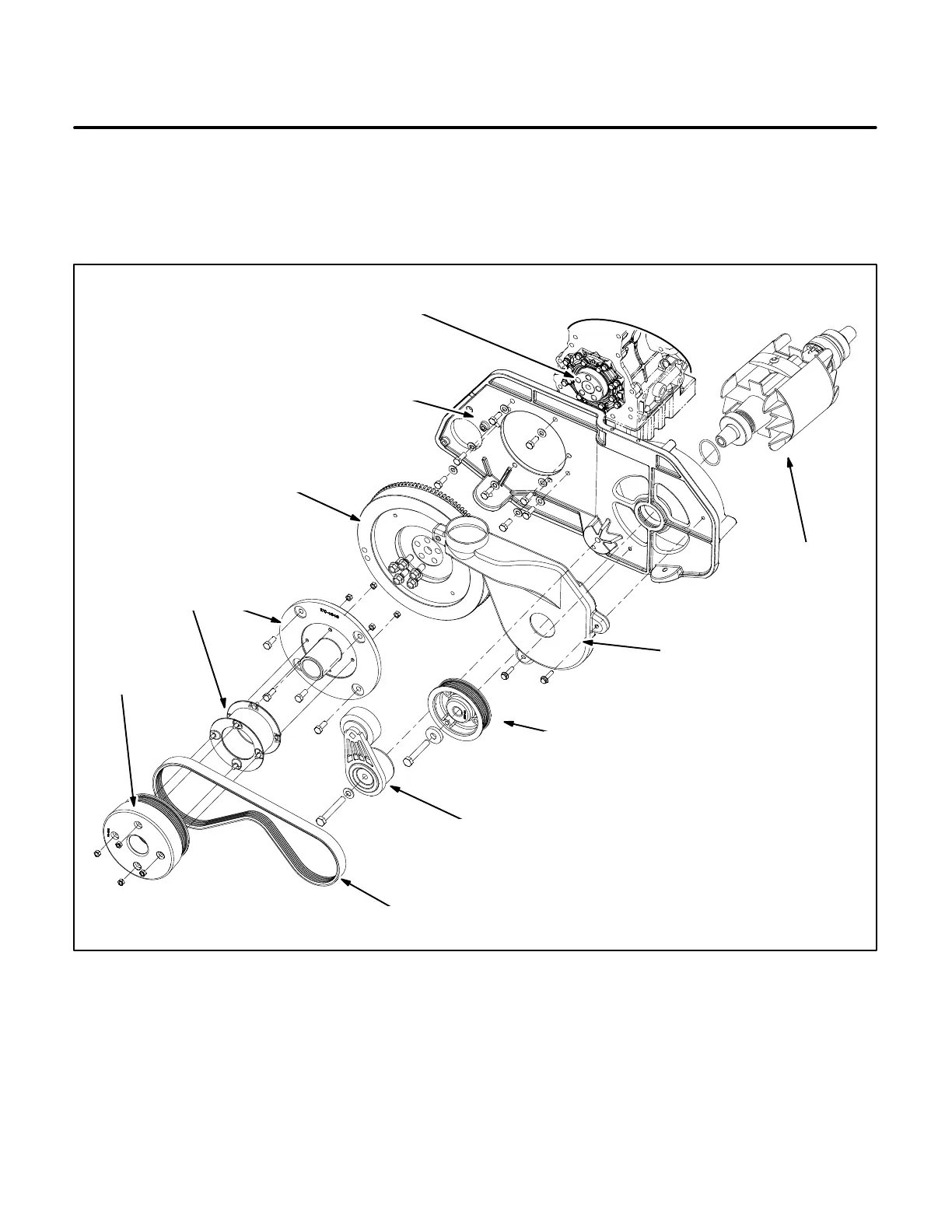

FIGURE 7-1. GENERATOR DRIVE
Redistribution or publication of this document,
by any means, is strictly prohibited.
