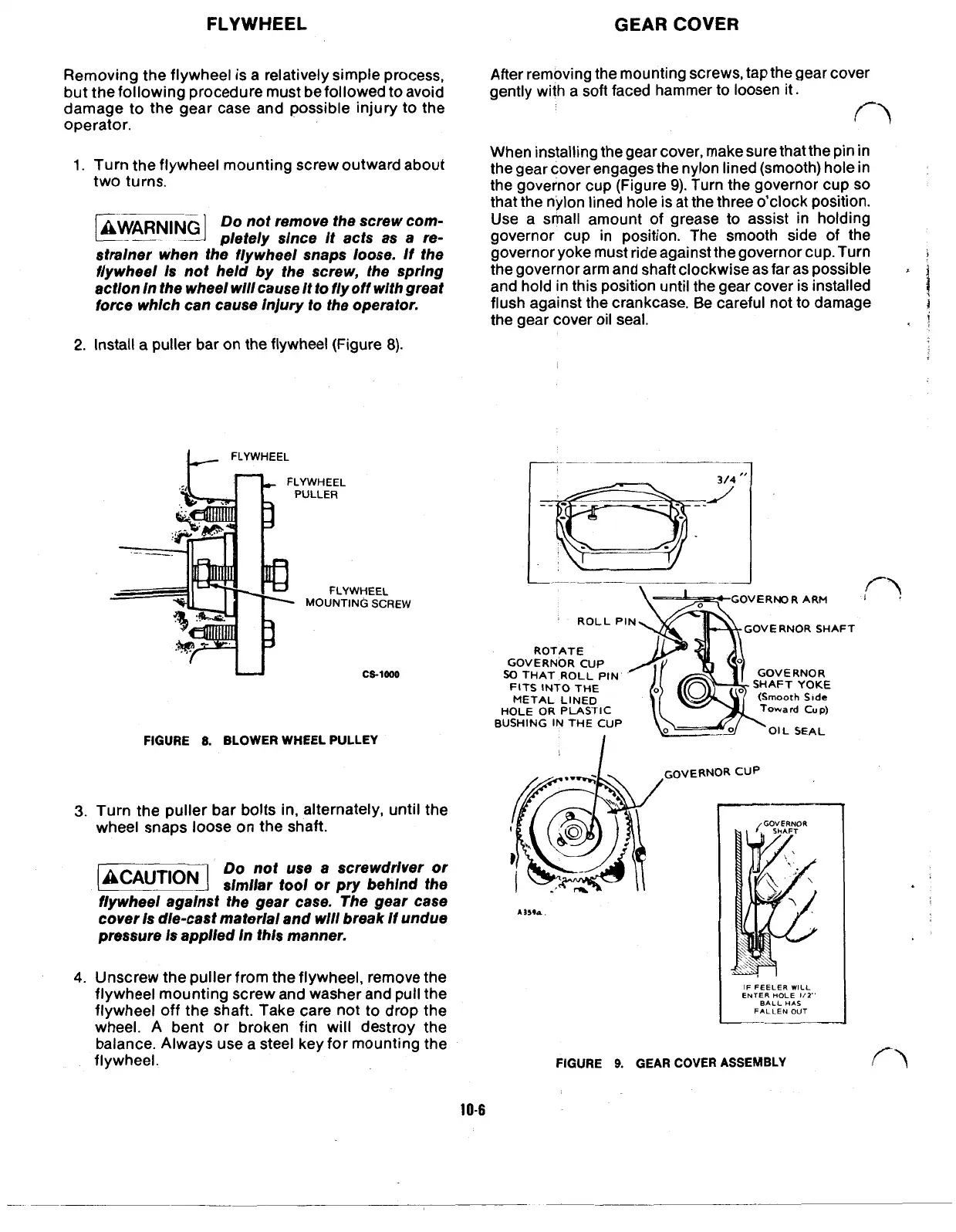

FLYWHEEL
GEAR
COVER
Removing the flywheel is a relatively simple process,
but the following procedure must be followed to avoid
damage to the gear case and possible injury to the
operator.
1.
Turn the flywheel mounting screw outward about
two turns.
WARNING
Do
not remove the screw com-
pletely since it acts as a re-
strainer when the flywheel snaps loose. If the
flywheel
is
not held by the screw, the spring
action in the wheel
will
cause it to fly off with great
force which can cause lnjury to the operator.
After removing the mounting screws, tap the gear cover
gently with a soft faced hammer to loosen it.
When installing the gear cover, make sure that the pin in
the gear cover engages the nylon lined (smooth) hole in
the governor cup (Figure
9).
Turn the governor cup
so
that the nylon lined hole is at the three o’clock position.
Use a small amount of grease to assist in holding
governor cup in position. The smooth side of the
governor yoke must ride against the governor cup. Turn
the governor arm and shaft clockwise as far as possible
!
and hold in this position until the gear cover is installed
flush against the crankcase. Be careful not to damage
the gear cover oil seal.
2.
Install a puller bar on the flywheel (Figure
8).
FLYWHEEL
MOUNTING
SCREW
cs-loo0
FIGURE
8.
BLOWER WHEEL
PULLEY
3.
Turn the puller bar bolts
in,
alternately, until the
wheel snaps loose on the shaft.
CAUTION
slmllar tool or pry behlnd the
Do
not use a screwdriver or
flywheel against the gear case. The gear case
cover
Is
dle-cast material and will break If undue
pressure
is
applied in this manner.
4.
Unscrew the puller from the flywheel, remove the
flywheel mounting screw and washer and pull the
flywheel off the shaft. Take care not to drop the
wheel.
A
bent or broken
fin
will destroy the
balance. Always use a steel key for mounting the
flywheel.
10-6
3/4
ROTATE
GOVERNOR
CUP
SO
THAT ROLL PIN
FITS
INTO
THE
METAL LINED
BUSHING
IN THE
CUP
HOLE
OR
PLASTIC
I
GOVERNOR ARM
GOVERNOR
SHAFT
AFT
ENTER
HOLE
IF
FEELER
WILL
BALL
HAS
FIGURE
9.
GEAR
COVER
ASSEMBLY
