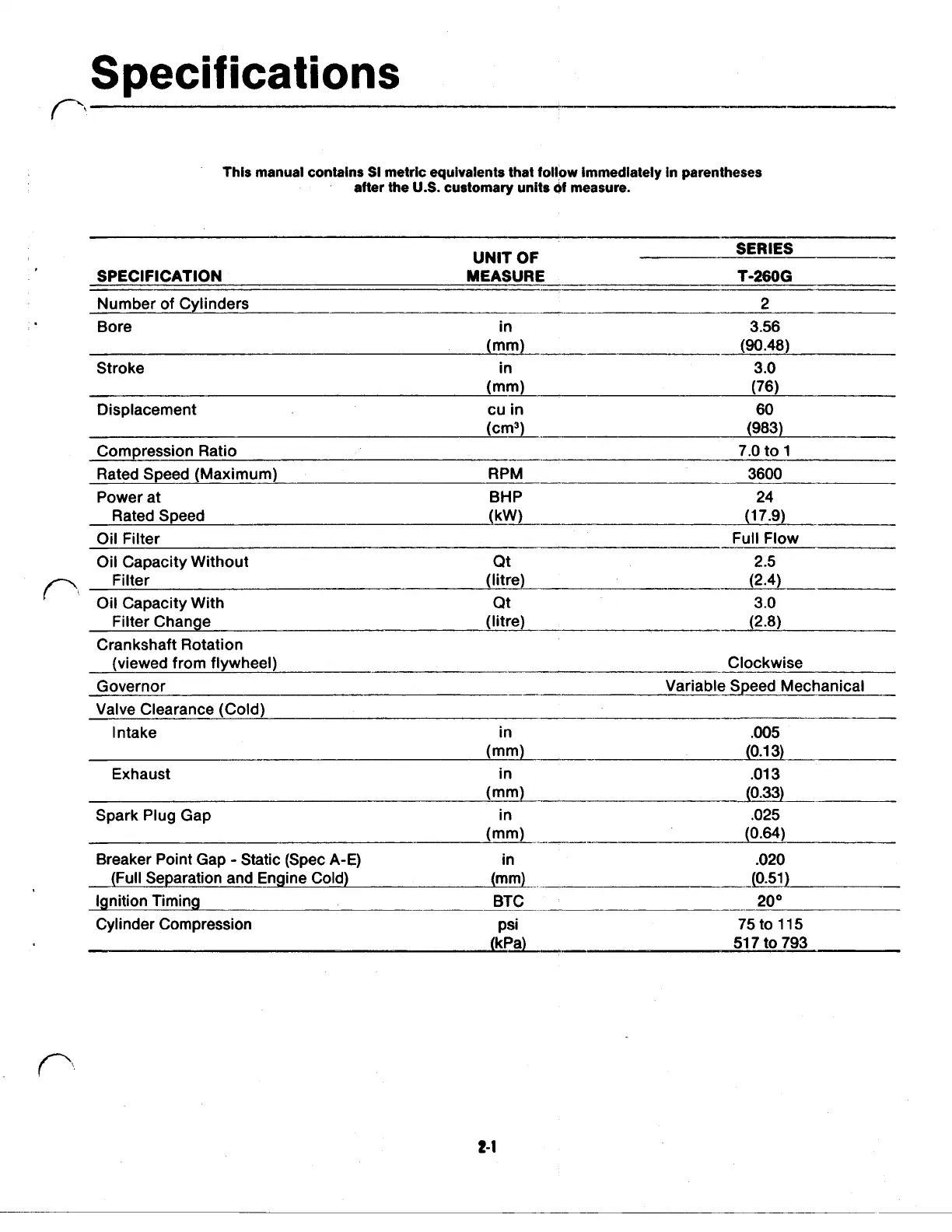

Specifications
This manual contains SI metric equivalents that follow immediately in parentheses
after the
U.S. customary units of measure.
UNIT OF
SERIES
SPECIFICATION
MEASURE
T-260G
Number of Cylinders
2
Bore in 3.56
(mm) (90.48)
Stroke in 3.0
(mm) (76)
Displacement cu in 60
(cm3) (983)
Compression Ratio 7.0 to 1
Rated Speed (Maximum) RPM
3600
Power at BHP
24
Rated Speed
(kw)
(1 7.9)
Oil Filter
Full Flow
Oil Capacity Without Qt
2.5
Filter (litre) (2.4)
Oil Capacity With Qt 3.0
Filter Change (litre) (2.8)
Crankshaft Rotation
(viewed from flywheel) Clockwise
Governor Variable Speed Mechanical
Valve Clearance (Cold)
Intake in
.005
(mm) (0.1 3)
Exhaust in .013
Spark Plug Gap in .025
(0.64)
Breaker Point Gap Static (Spec A-E) in .020
(Full Separation and Engine Cold) (mm) (0.51)
Ignition Timing
BTC
20°
Cylinder Compression psi
75 to 115
(mm) (0.33)
(mm)
(kPa)__
51 7 to 793
2-1
