ALIGNING BLOWER WHEEL, VENTURI
AND CHAFF SCREEN
It may be difficult to line up the screw holes in the
blower housing chaff screen with those
in
the venturi
and those in the blower wheel if these parts are
separated without noting their relative positions. The
holes will match up if the parts are aligned as shown
in Figure
34.
THROUGH
PART DIAMETER
SCREW
HOLES ALIGN
BLOWER WHEEL
SCREW HOLES ALIGN
THROUGH PART DIAMETER
VENTURI
CHAFF SCREEN
POSITION PARTS WITH ALIGNED
SCREW HOLES AT TOP

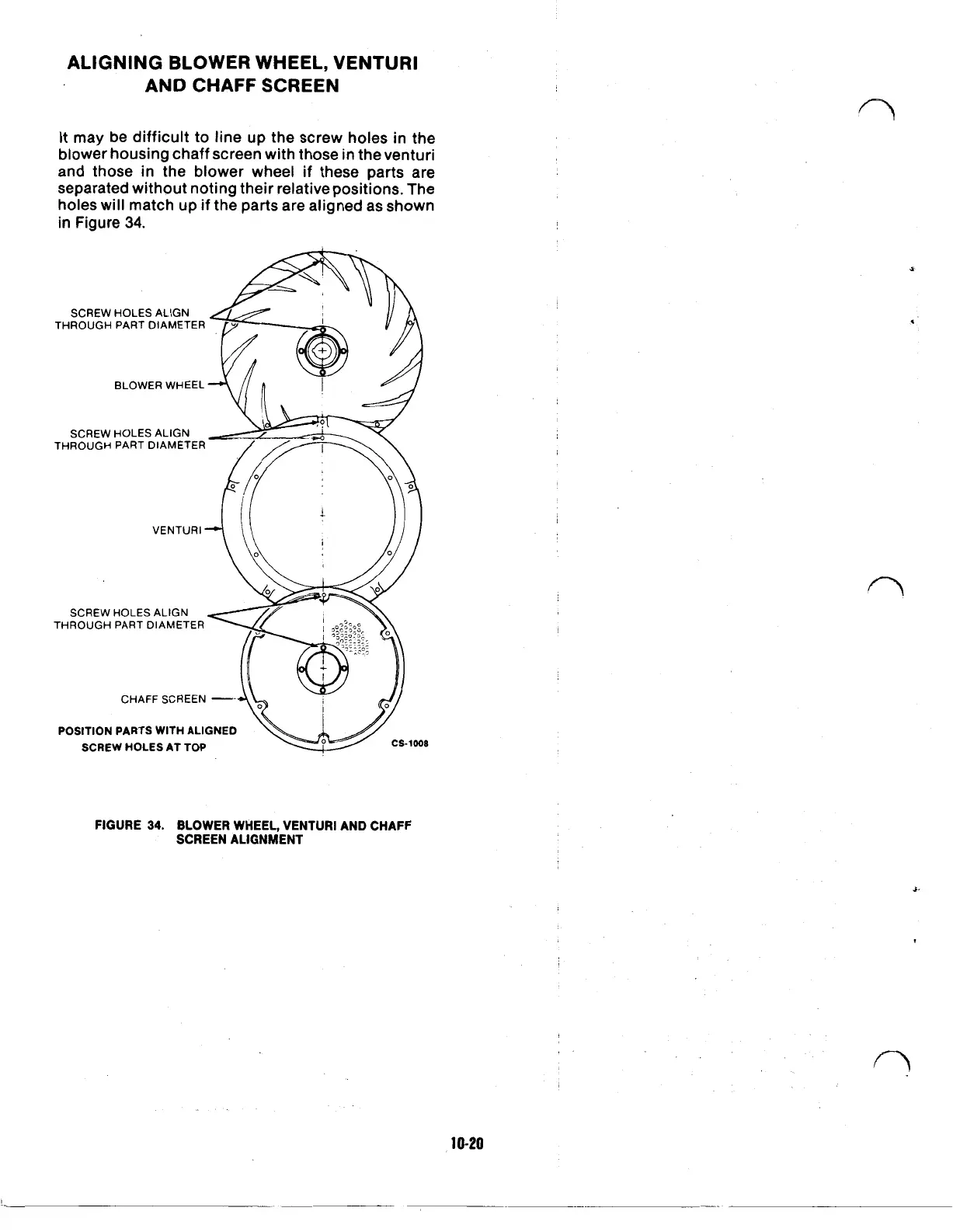

FIGURE
34.
BLOWER WHEEL, VENTURI AND CHAFF
SCREEN ALIGNMENT
10-20
