Note: Alarm On Time is measured in seconds.
5.9 Motion Detector Setup
This section allows you to set up motion detection options for each camera.
Press the “Stop” button to disable all areas, and press “Quad” button to select all areas.
5.10 Hard Drive Setup
HDD SIZE：indicates the total capacity of the hard drive installed in the DVR.
HDD USED：indicates the space used in the hard disk drive for recording and the percent used.
HDD FORMAT： will erase all video and data on the installed hard drive.
Note: You will be prompted for the password when formatting a hard drive and the default password is
“111111”.
On/off: Enable or disable motion detection
recording.
Level: Sensitivity for motion detection. There
are 3 levels of sensitivity: Level 1 to 3 with 3 being
the highest.
Area: Select detectable area on the screen.
Area Selection：Press [▲，▼，◄◄ and ►►]
buttons to select a block and then press [SEL] button
to set the block to detect motion. The area is
detectable when it is clear, the area is not detectable
when it is covered by a shadow.
OVERWRITE ENABLED：
ON: System overwrites oldest files when hard drive
is full;
OFF: System stops recording when hard drive is full.
HARD DRIVE SETUP
OVERWRITE ENABLED [ON]
MAXTOR STM250310AS
MASTER HDD SIZE 250203MB
MASTER HDD USED 124931MB 50%
MASTER HDD FORMAT
SLAVE HDD SIZE N/A
SLAVE HDD USED N/A
SLAVE HDD FORMAT
( ) MOVE (SEL)SELECT (MENU)EXIT

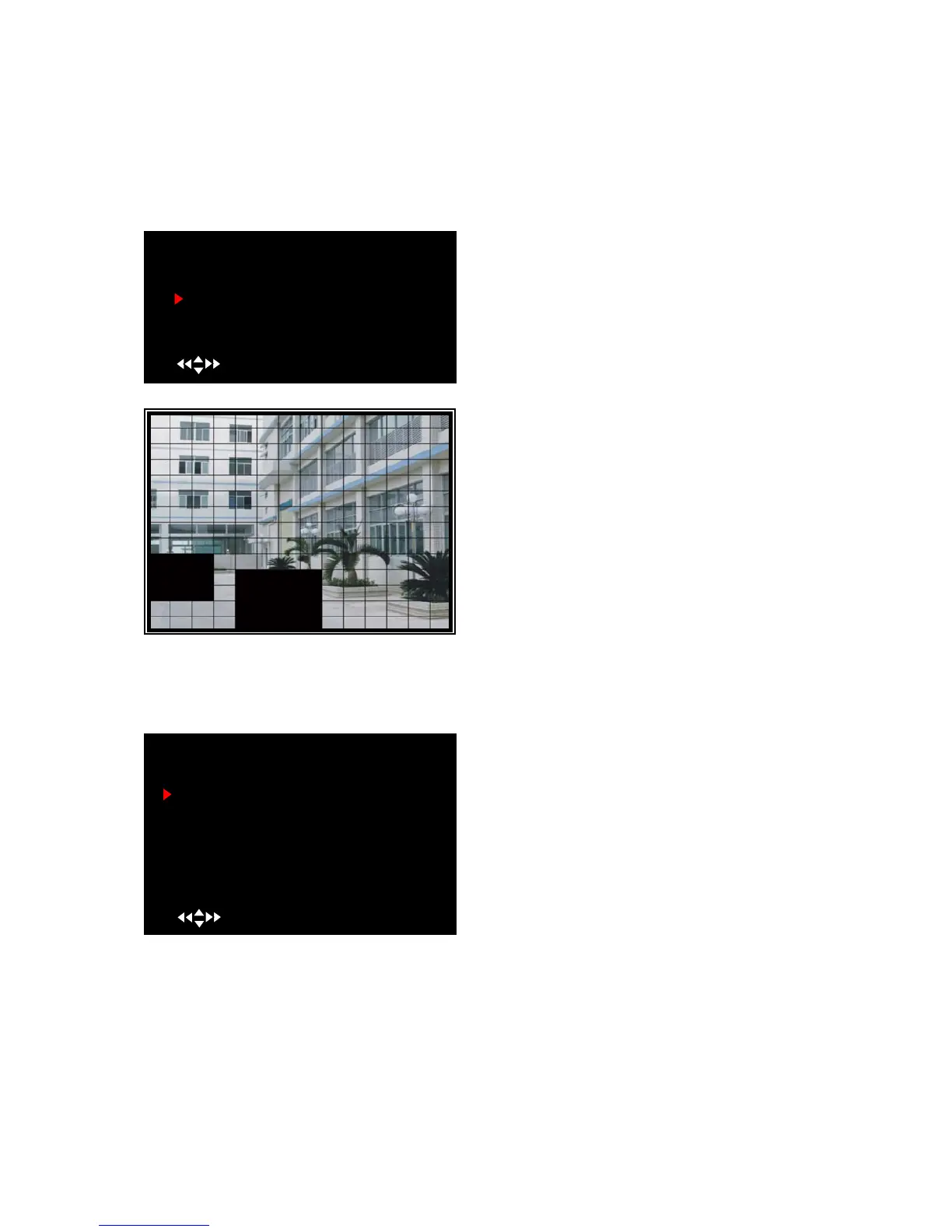

MOTION DETECTOR SETUP
CH1 ON Level 2 Area
CH2 ON Level 2 Area
CH3 ON Level 2 Area
CH4 ON Level 2 Area
( ) MOVE (SEL)SELECT (MENU)EXIT
