Onkyo A-9110 User Manual

5
En
Before use
1. Í ON/STANDBY button
2. Remote control sensor: Receives signals from the remote
controller.
0 The signal range of the remote controller is within
about 16y/5 m, at an angle of 20° on the perpendicular
axis and 30° to either side.
3. Volume controller
4. Input source indicators: The indicators light according to
the selected input source.
0 The indicator for the selected input source blinks when
MUTING (p7) is active.
5. INPUT dial: Switches the input source to be played.
6. BASS -/+ controller: Enhance or moderate the bass range
of the speakers. (p17)
7. TREBLE -/+ controller: Enhance or moderate the treble
range of the speakers. (p17)
8. BALANCE L/R controller: Adjust the left/right audio
balance. (p18)
9. DIRECT button/indicator: Switch the DIRECT feature on
and off. The indicator lights when the DIRECT feature is
on. (p17)
10. PHASE MATCHING BASS button/indicator: Switch the
PHASE MATCHING BASS feature on and off. The
indicator lights when the PHASE MATCHING BASS
feature is on. (p17)
11. PHONES jack: Connect stereo headphones with a
standard plug (Ø1/4"/6.3 mm diameter).

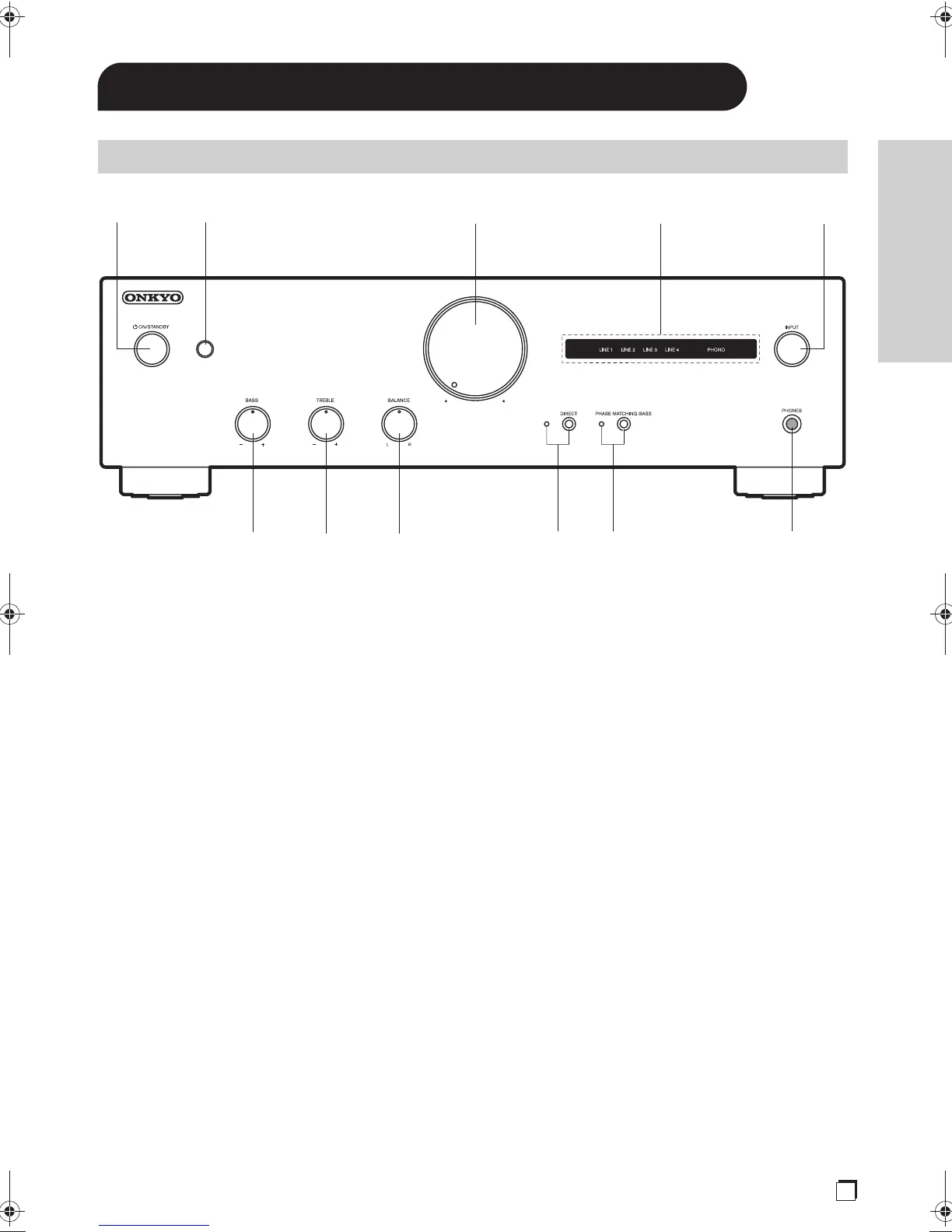

Front Panel
Part Names

 

SN29403405_A-9110_En_1806XX.book 5 ページ ２０１８年７月５日 木曜日 午後２時４３分

Onkyo A-9110 Specifications

General

Output level	4 mV
Amplifier class	-
Frequency range	20 - 20000 Hz
Output impedance	4 Ω
Input sensitivity	200 mV
Audio output channels	2.0 channels
Peak power per channel	100 W
Signal-to-Noise Ratio (SNR)	103 dB
Total Harmonic Distortion (THD)	0.05 %
Dynamic power per channel (3 Ohm)	220 W
Dynamic power per channel (4 Ohm)	190 W
Dynamic power per channel (8 Ohm)	110 W
DC-in jack	Yes
Audio (L/R) in	4
Audio (L/R) out	1
Headphone connectivity	6.3 mm
Speakers connectivity type	Banana connector
Purpose	Home
Impedance	47 Ω
Product color	Black
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	220 - 230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	130 W
LED indicators	Status
Package weight	9000 g

Weight and Dimensions

Depth	330 mm
Width	435 mm
Height	129 mm
Weight	7000 g
