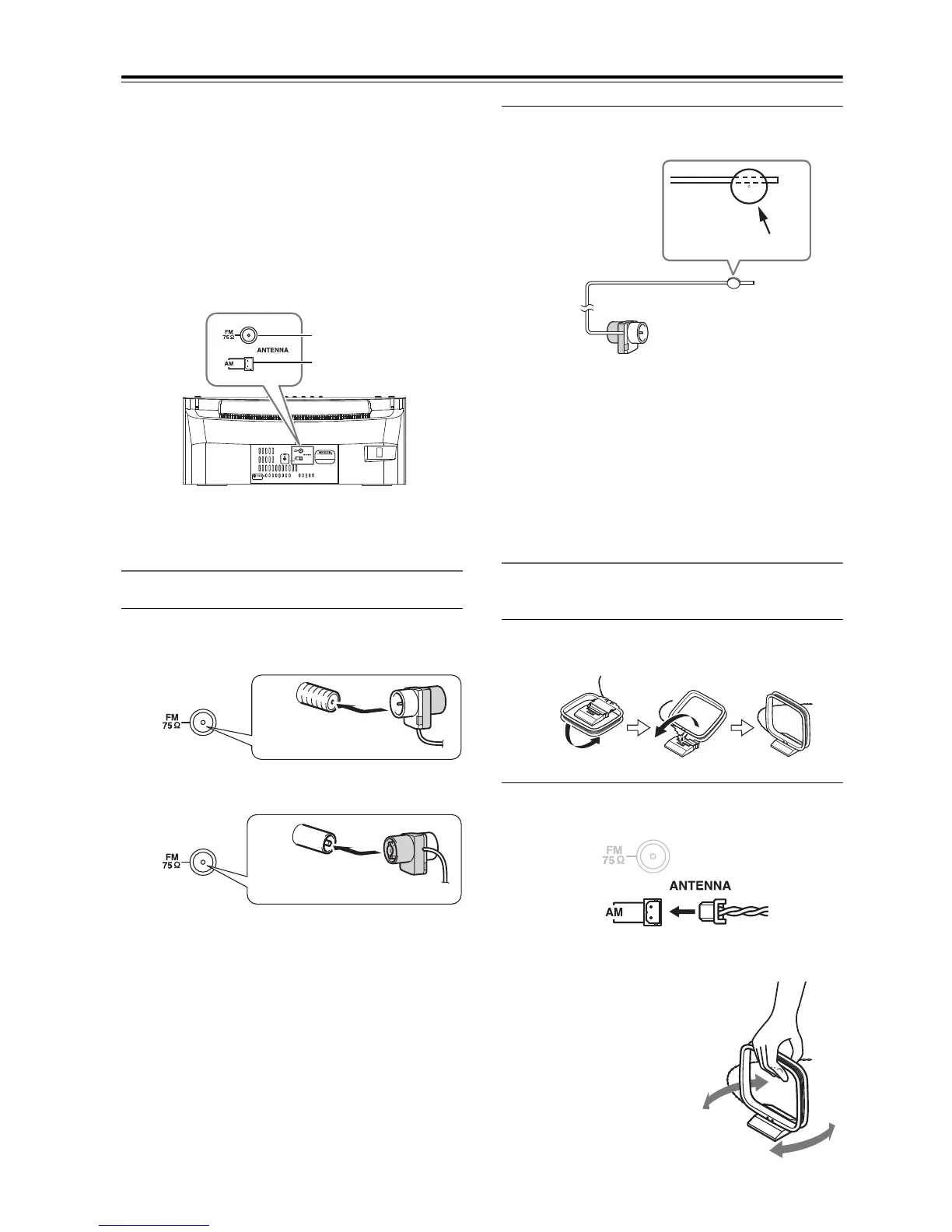

Connecting Antennas
Below is the FM/AM antenna connection information
for the CBX-500. For the CBX-600UKD, see “Connect-
ing the DAB/FM Antenna (CBX-600UKD only)” on
page 15.
This section explains how to connect the supplied indoor
FM antenna and AM loop antenna, and how to connect
commercially available outdoor FM antenna.
The CBX-500 won’t pick up any radio signals without
an antenna connected, so you must connect the antenna
to use the tuner.
Connecting the Indoor FM Antenna
(CBX-500 only)
The supplied indoor FM antenna is for indoor use only.
1
Attach the FM antenna, as shown.
■ North American Model
■ European Model
Once the CBX-500 is ready for use, you’ll need to
tune into an FM radio station and adjust the posi-
tion of the FM antenna to achieve the best possible
reception.
2
Use thumbtacks or something similar to fix
the FM antenna into position.
Caution: Be careful that you don’t injure yourself
when using thumbtacks.
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available out-
door FM antenna instead (see “Connecting an Outdoor
FM Antenna (CBX-500 only)” on page 15).
Connecting the AM Loop Antenna
(CBX-500 only)
The supplied indoor AM loop antenna is for indoor use
only.
1
Assemble the AM loop antenna, inserting
the tabs into the base, as shown.
2
Plug the AM loop antenna into the AM
antenna jack, as shown.
■ Adjusting the AM Loop Antenna
Adjust the location and posi-
tion of the AM antenna while
listening to an AM station to
achieve the best possible
reception.
