10
Front & Rear Panels—Continued
A DIGITAL IN OPTICAL & COAXIAL
These optical and coaxial jacks can be used to con-
nect a CD or DVD player and other components
with digital audio outputs.
B AM ANTENNA
These push terminals are for connecting an AM
antenna.
C FM ANTENNA
This jack is for connecting an FM antenna.
D VIDEO MONITOR OUT
This composite video jack can be connected to a
composite video input on your TV or projector.
E FRONT SPEAKERS B
These push terminals are for connecting speaker
set B.
F FRONT SPEAKERS A, SURROUND
SPEAKERS, CENTER SPEAKER &
SURROUND BACK SPEAKER
These push terminals are for connecting speaker
set A.
G
This (Remote Interactive) jack can be con-
nected to the jack on another Onkyo compo-
nent. The AV receiver’s remote controller can then
be used to control that component. To use , you
must make an analog audio connection (RCA)
between the AV receiver and the other component,
even if they are connected digitally.
Note:
can only be used with Onkyo components.
H
S VIDEO DVD IN, VIDEO 1 IN/OUT & VIDEO 2 IN
The DVD IN jack can be connected to an S-Video
output on a DVD player. The VIDEO 1 IN/OUT
jacks can be used to connect a VCR. The VIDEO 2
IN jack can be used to connect another video source
(e.g., cable TV, satellite TV, or a set-top-box).
I CD IN
These analog inputs can be used to connect a CD
player with analog outputs.
J TAPE IN/OUT
These analog inputs and outputs can be used to con-
nect a cassette recorder, MiniDisc recorder, or other
recorder with analog inputs and outputs.
K S VIDEO MONITOR OUT
This S-Video jack can be connected to an S-Video
input on your TV or projector.
L VIDEO 1 IN/OUT, VIDEO 2 IN & VIDEO 3 IN
The VIDEO 1 IN/OUT jacks can be used to connect
a VCR. The VIDEO 2 IN and VIDEO 3 IN jacks
can be used to connect other video sources (e.g.,
cable TV, satellite TV, or a set-top-box).
M DVD IN
The FRONT, SURROUND, CENTER, and SUB-
WOOFER jacks can be used to connect a compo-
nent with an analog multichannel audio output, such
as a DVD player with a 5.1-channel analog output.
The composite video input can be connected to the
composite video output on a DVD player.
N SUBWOOFER PRE OUT
A powered subwoofer can be connected here.
O AC OUTLET
This switched AC outlet can be used to supply
power to another component. The connector type
depends on the country in which you purchased
your AV receiver.

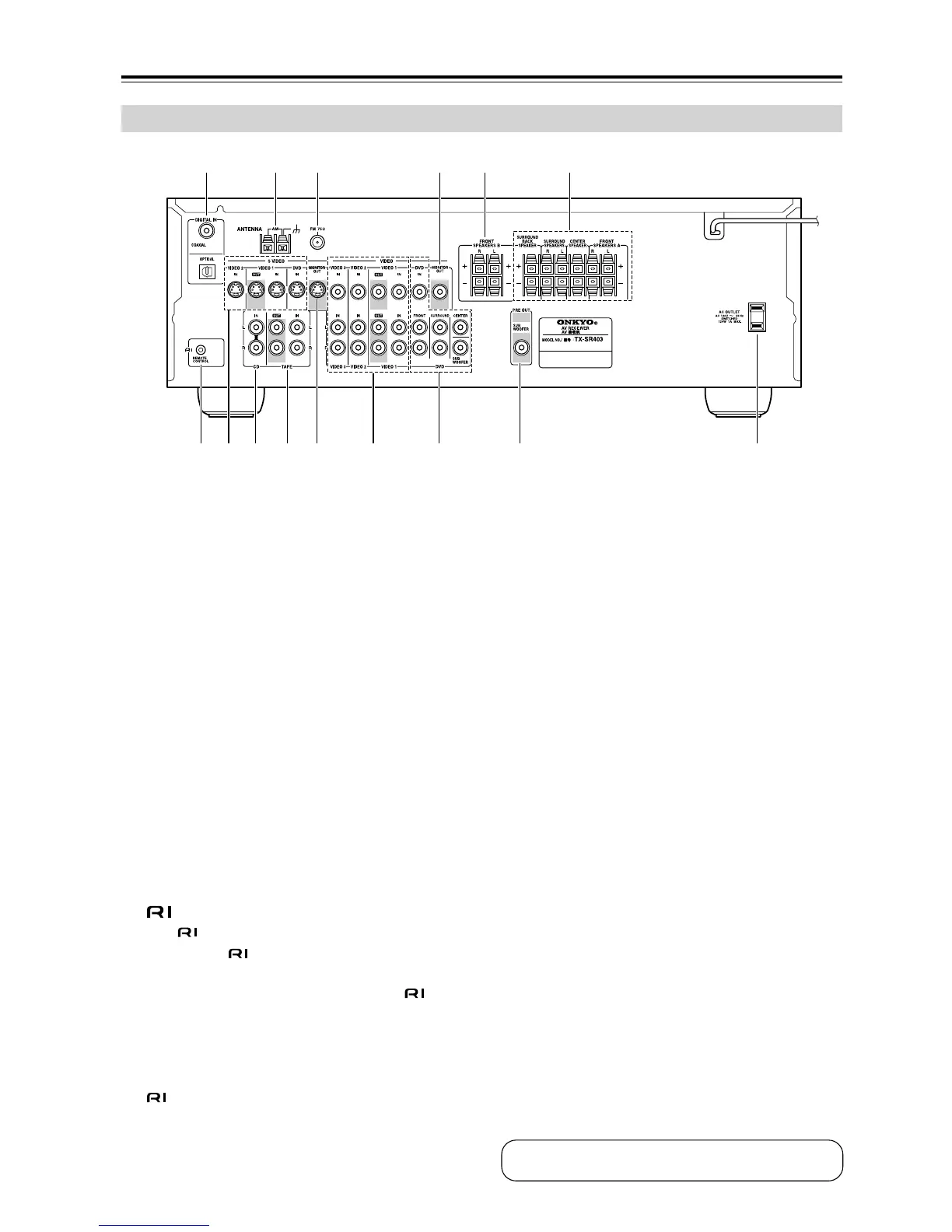

Rear Panel
7 98 J K L M N O
1 B 3 654
See pages 17–31 for connection information.
To Next Page
