Connecting Your Components—Continued
•With the basic connection, you can listen to or record audio from the TV.
•To enjoy Dolby and DTS listening modes, use connection or . (Use and or and for recording.)
Hint!
If your TV has no audio outputs, connect your VCR to the AV receiver and use its tuner.
Connecting a TV or Projector
Connection HT-R430 Signal flow TV Picture quality
S VIDEO MONITOR OUT
⇒
S-Video input Better
VIDEO MONITOR OUT
⇒
Composite video input Standard
Connection HT-R430 Signal flow TV
VIDEO 2 IN L/R
⇐
Analog audio L/R output
DIGITAL IN COAXIAL
⇐
Digital coaxial output
DIGITAL IN OPTICAL
⇐
Digital optical output
S VIDEO IN
VIDEO IN
MONITOR
OUT
VIDEO
S VIDEO
MONITOR
OUT

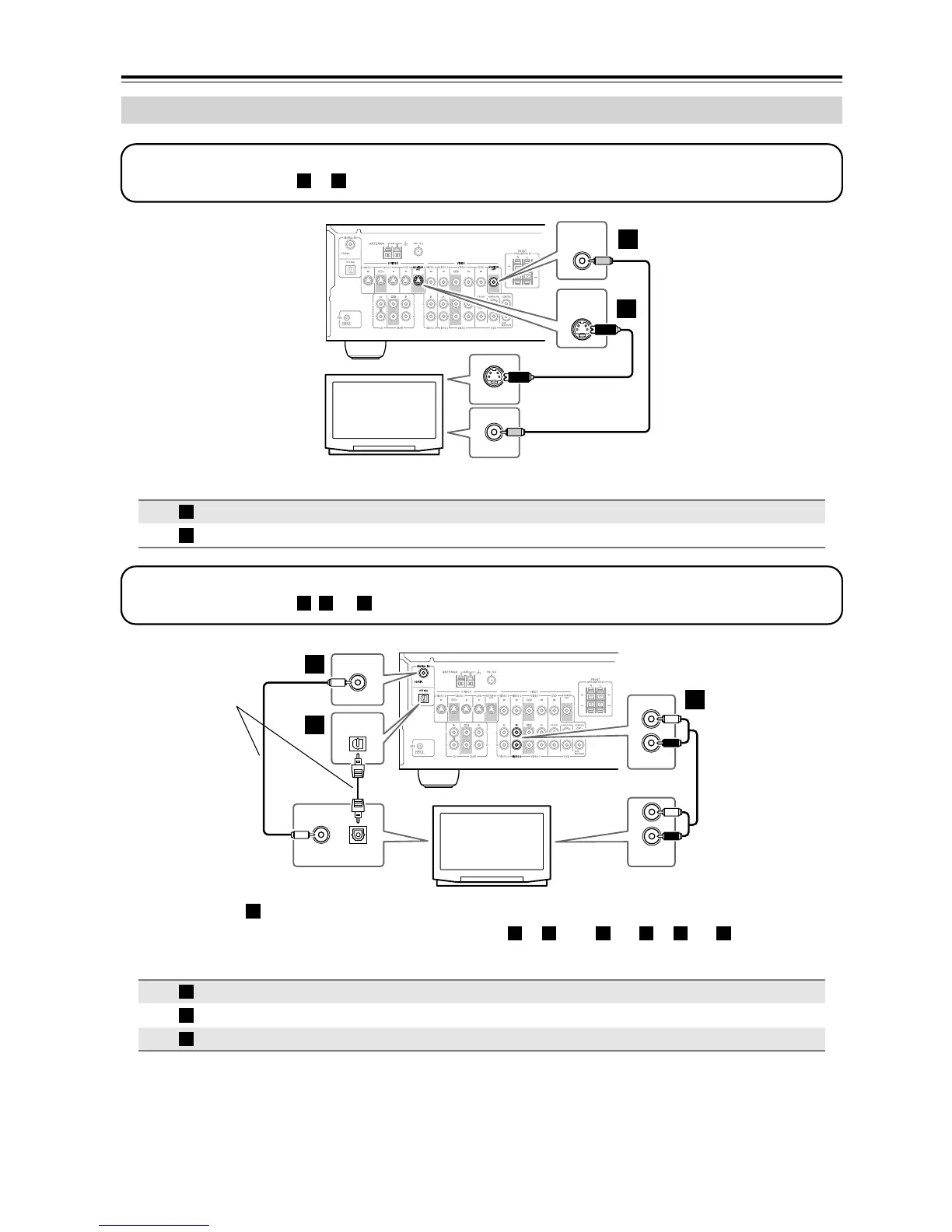

Step 1: Video Connection
Choose a connection type ( or ) that matches the TV, and then make the connection.
A B
TV, projector,
etc.
A
B
A
B
OPTICAL
OPTICAL
OUT
L
R
L
R
IN
VIDEO 2
AUDIO
OUT
DIGITAL IN
COAXIAL
COAXIAL
OUT
Step 2: Audio Connection
Choose a connection type ( , , or ) that matches the TV, and then make the connection.
a b c
TV, projector,
etc.
a
b
c
Connect one or
the other
a
b c a b
a
c
a
b
c
