18
Connecting Speakers—Continued
Read the following before connecting your speakers:
•You can connect speakers with an impedance of
8 ohms or higher. If you use speakers with a lower
impedance, and use the amplifier at high volume lev-
els for a long period of time, the built-in protection
circuit may be activated.
• Disconnect the power cord from the wall outlet before
making any connections.
•Pay close attention to speaker wiring polarity. In other
words, connect positive (+) terminals to only positive
(+) terminals, and negative (–) terminals to only nega-
tive (–) terminals. If you get them the wrong way
around, the sound will be out of phase and will sound
unnatural.
• Unnecessarily long, or very thin speaker cables may
affect the sound quality and should be avoided.
• Be careful not to short the
positive and negative wires.
Doing so may damage the AV
receiver.
• Don’t connect more than one
cable to each speaker termi-
nal. Doing so may damage the
AV receiver.
• Don’t connect one speaker to several terminals.
The AV receiver’s positive (+) speaker terminals are
color-coded for ease of identification. (The negative (–)
speaker terminals are all black.) Match the color of each
cable to the corresponding speaker terminal.
Note:
When speaker set B is turned on, speaker set A is reduced
to 2.1-channel playback.
Speaker Connection Precautions Connecting Speaker
Speaker terminal Color
Front left White
Front right Red
Center Green
Surround left Blue
Surround right Gray
Surround back Brown
1
Strip 3/8" (10 mm) of insu-
lation from the ends of the
speaker cables. (Supplied
speaker cables are already
stripped.)
2
While pressing the lever, insert
the wire into the hole, and then
release the lever.
Make sure that the terminals are
gripping the bare wires, not the
insulation.
3
Using the supplied RCA cable, connect the AV
receiver’s SUBWOOFER PRE OUT to LINE
INPUT on the subwoofer.
Make sure the cable is plugged all the way.
3/8" (10 mm)
Front left
speaker
Front right
speaker
Center speakerSurround
right
speaker
Surround
left
speaker

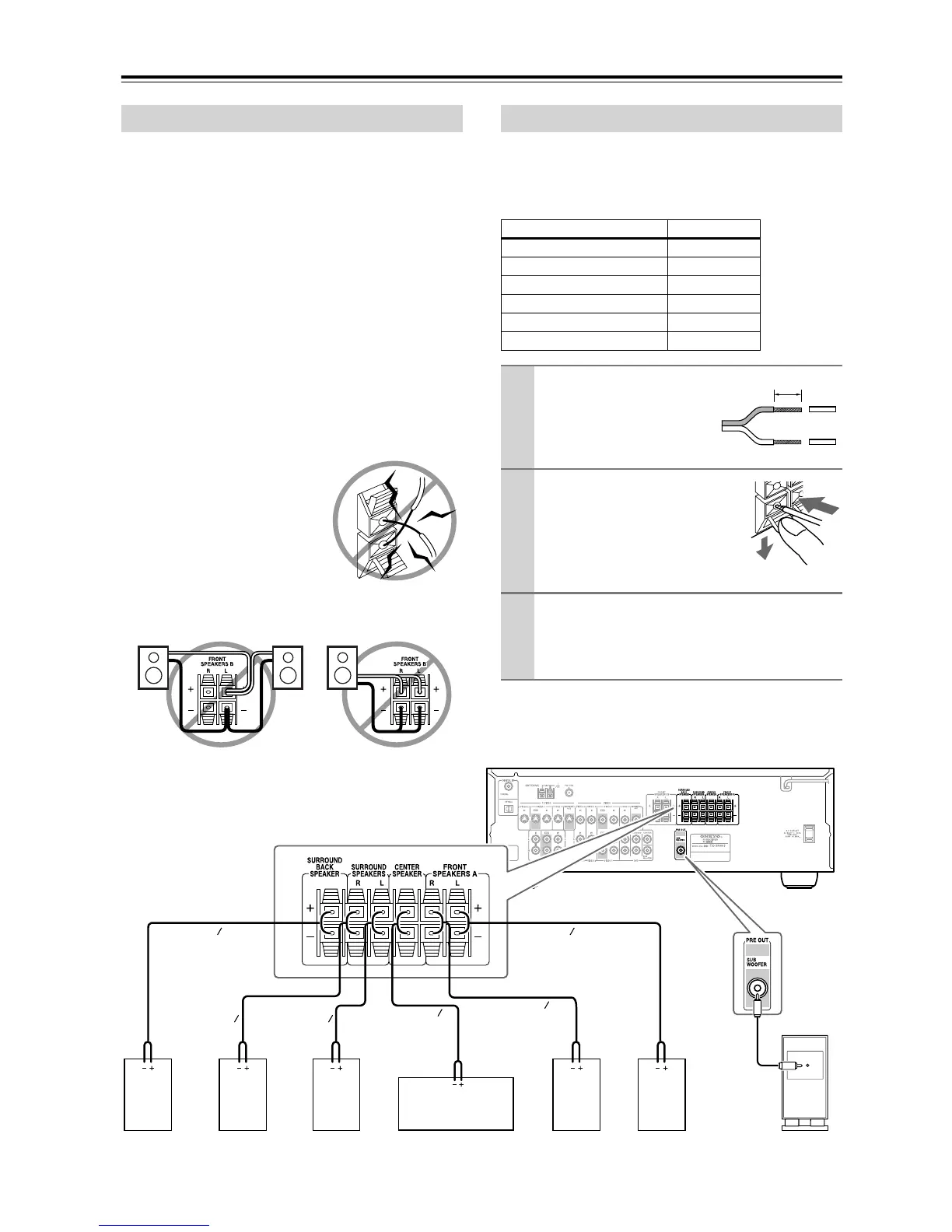

The following illustration shows which speaker should
be connected to each pair of terminals.
Surround
back
speaker
White
Brown
Red
Green
Blue
Gray
Powered
subwoofer
To Next Page
