11
Speaker Package
A Speaker terminals
These push terminals are for connecting the speaker
to the HT-R430 with the supplied speaker cables.
The supplied speaker cables are color-coded for
easy identification. Simply connect each cable to the
same-colored positive speaker terminal.
B Keyhole slots
These keyhole slots can be used to wall-mount the
speaker. See page 19 for mounting instructions.
C Speaker mount/bracket inserts
These threaded inserts can be used to attach the
speaker to a speaker mount or bracket. See page 19
for mounting instructions.
Note:
Use commercially available machine screws to
attach the speaker to a speaker mount or bracket.
North American models require 1/4-inch screws.
Other models require M5 (5 mm) screws.
D OUTPUT LEVEL control
This control is used to adjust the volume of the sub-
woofer.
E STANDBY/ON indicator
Red: Subwoofer in standby mode
Green: Subwoofer on
With the Auto Standby function, the SKW-420
automatically turns on when an input signal is
detected in Standby mode. When there’s no input
signal for about 20 minutes, the SKW-420 automat-
ically enters Standby mode.
F POWER switch (Not North American model)
To turn on the SKW-420, set the POWER switch to
the ON position (the indicator light up).
To turn off the SKW-420, set the POWER switch to
the OFF position (the indicator goes out).
G LINE INPUT
This RCA input should be connected to the SUB-
WOOFER PREOUT on your HT-R430 AV receiver,
amp, or other receiver with supplied RCA cable.
Note:
The Auto Standby function turns the subwoofer on when
the input signal exceeds a certain level. If the Auto
Standby function does not work reliably, try slightly
increasing or decreasing the subwoofer output level on
your receiver or amp (see page 47).

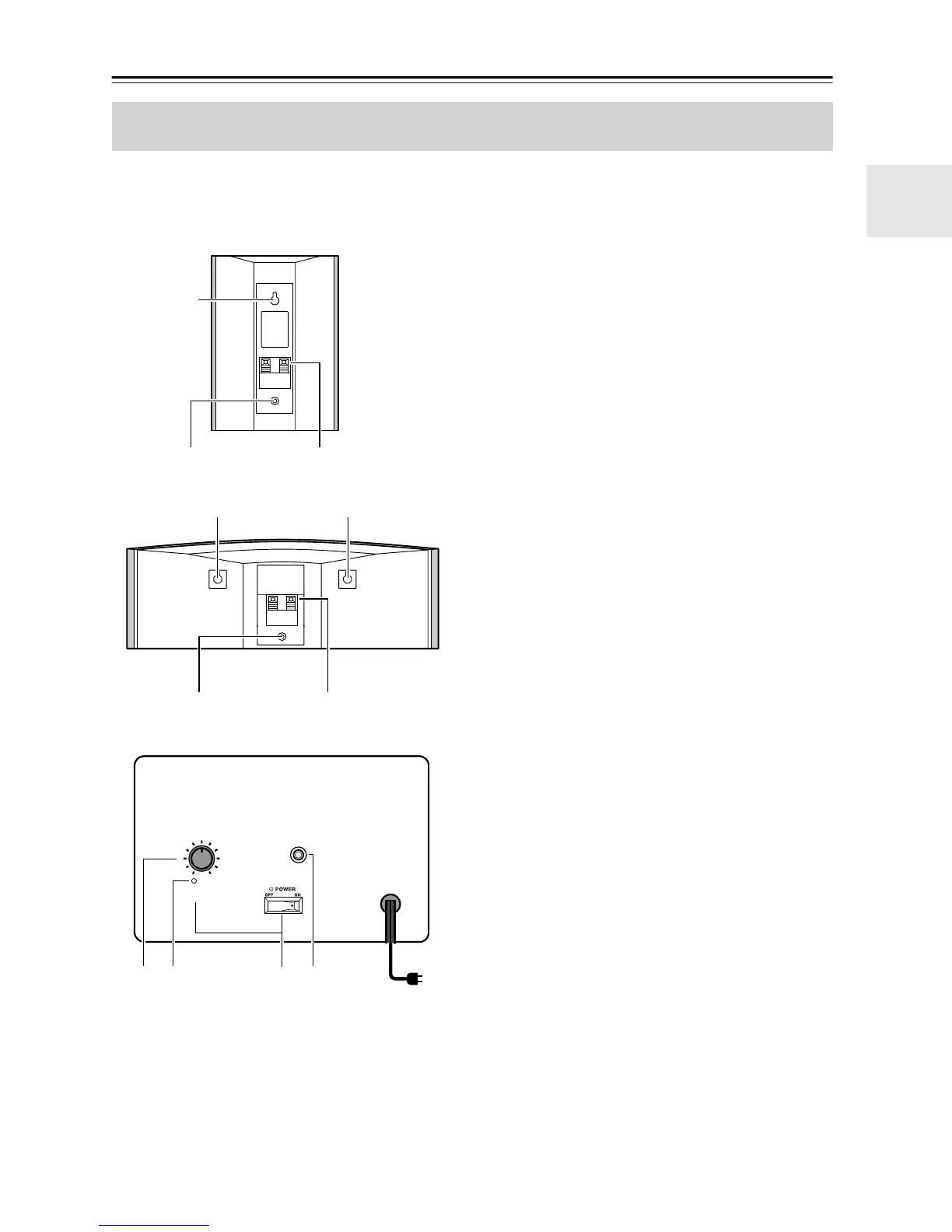

Front, Center, Surround, & Subwoofer speakers
(SKF-330F, SKC-330C, SKM-330S, SKB-330, SKW-420)
OUTPUT
LEVEL
LINE
INPUT
MIN
MAX
RED
:
STANDBY
GREEN
:
ON
6
3
2
1
3 1
22
4 57
■ Rear
SKF-330F
SKM-330S
SKB-330
SKC-330C
SKW-420
To AC outlet
