Onkyo T-4030 User Manual

En-11
Connecting Your Components
• Refer to the instructions that came with the component you are connecting.
• Do not plug in the power cord until all other connections are complete.
• Do not bind audio cables with power cords and speaker cables.
Doing so may adversely affect the sound quality.
• To prevent interference, keep power cords and speaker cables as far away as
possible from the antennas.
• Push each plug in all the way to make a good connection
(loose connections can cause noise or malfunctions).
Before Making Any Connections

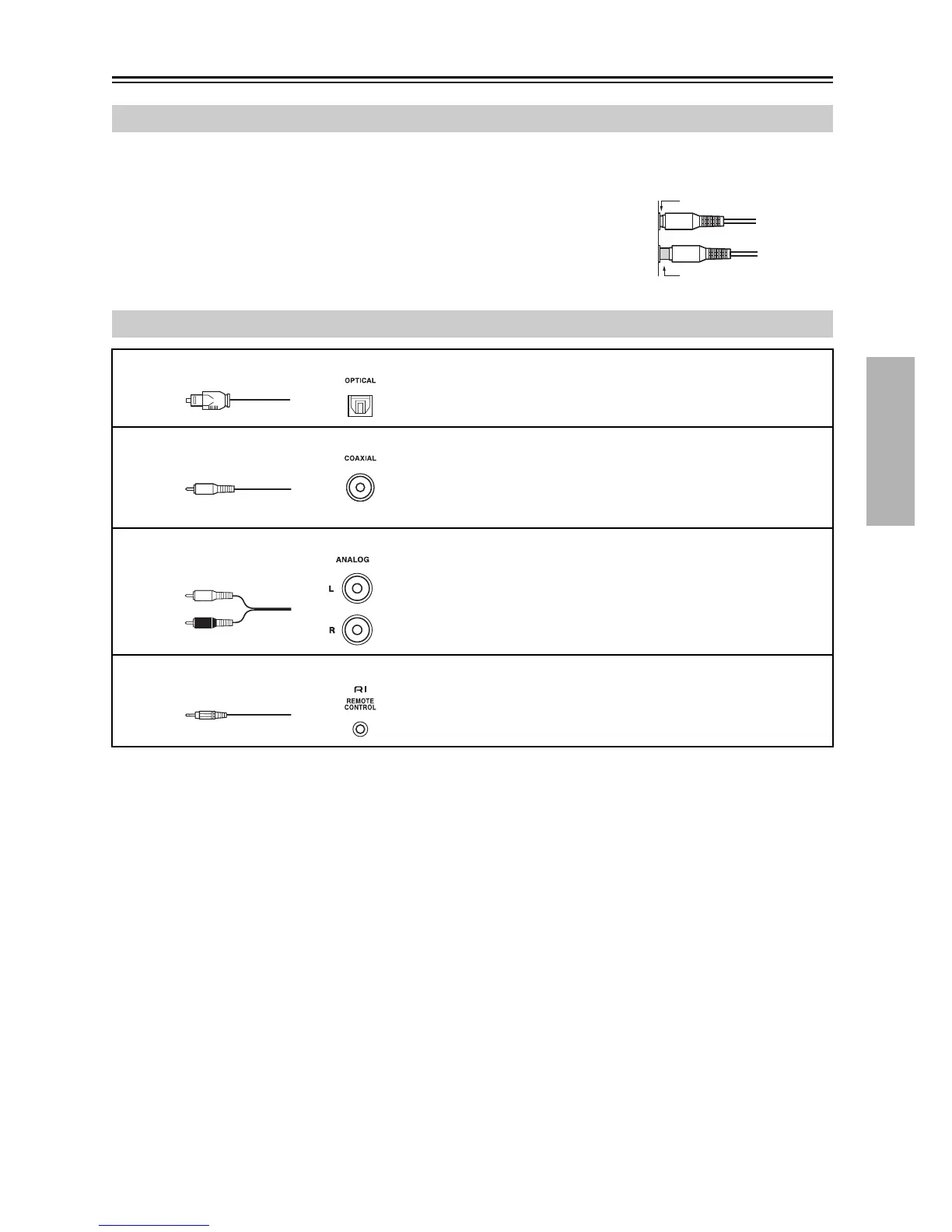

Cable and Jacks
Optical digital audio
Optical digital connections allow you to enjoy digital
sound such as PCM. The maximum sampling rate for
PCM output is 48kHz/16bit, 2ch.
Coaxial digital audio
Coaxial digital connections allow you to enjoy digital
sound such as PCM. The maximum sampling rate for
PCM output is 48kHz/16bit, 2ch.
Analog audio (RCA)
Analog audio connections (RCA) carry analog audio.
R
To use R (Remote Interactive), you need to connect
your Onkyo AV components with an
R cable.
Right!
Wrong!
Orange
Red
White

Onkyo T-4030 Specifications

General

Power requirements	230V, 50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	8 W
Purpose	Home
DAB tuner	DAB+
RDS features	PS, PTY, RT
FM band range	87.5 - 108 MHz
Product color	Silver
Frequency range	20 - 15000 Hz
Radio Data System (RDS)	Yes
Preset stations quantity	40
Total Harmonic Distortion (THD)	1 %
Line outputs (RCA)	2

Weight and Dimensions

Depth	307 mm
Width	435 mm
Height	101.5 mm
Weight	4900 g
