Getting to Know the Receiver—Continued
N GAME/TV IN
A game console or TV output can be connected
here. There are composite video input jack and
analog audio input jacks.
O CBL/SAT IN
A cable or satellite receiver can be connected here.
There are composite video input jack and analog
audio input jacks.
P DVD IN
These jacks are for connecting a DVD player. There
are composite video input jack for connecting the
video signal, and stereo (FRONT) jacks for
connecting the analog audio signals.
Q VCR/DVR IN/OUT
A video component, such as a VCR or DVR, can be
connected here for recording and playback. There
are composite video input and output jacks for
connecting the video signal, and there are analog
audio input jacks for connecting the audio signal.
R SPEAKERS A
These terminal posts are for connecting speaker
set A.
S SPEAKERS B
These terminal posts are for connecting speaker
set B.
For detailed information, see the pages in parentheses.

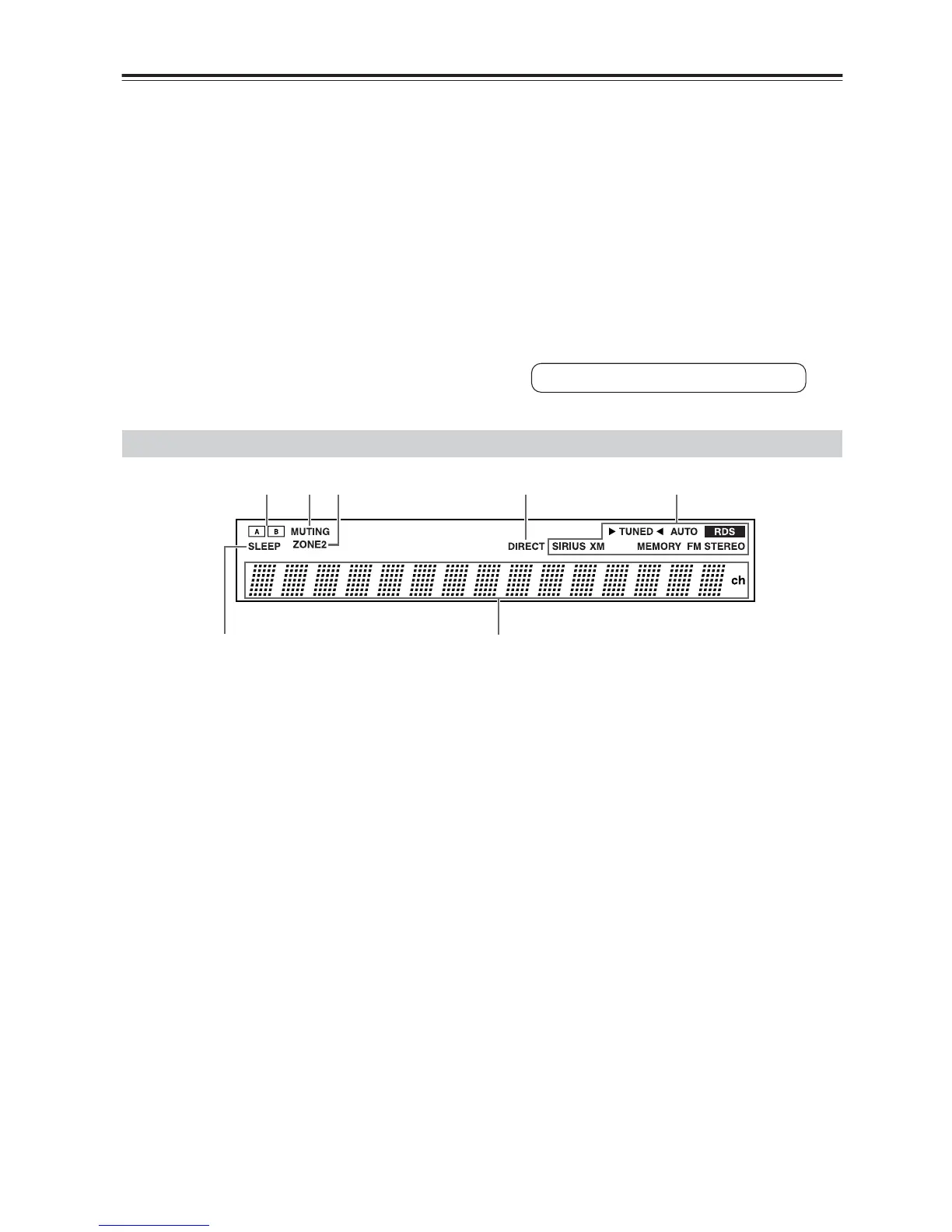

1 A and B speaker indicators
Indicator A lights up when speaker set A is on.
Indicator B lights up when speaker set B is on.
2 MUTING indicator
Flashes while the receiver is muted.
3 ZONE 2 indicator
Lights up when Zone 2 is on.
4 DIRECT indicator
Lights up while the DIRECT function is enabled.
5 Radio indicators
TUNED: Lights up when tuned to a radio station.
AUTO: For AM and FM radio, lights up when Auto
Tuning is selected, and disappears when Manual
Tuning mode is selected.
RDS (European models only): Lights up when
tuned to a radio station that supports RDS (Radio
Data System).
SIRIUS (North American model only) : Lights
up when tuned to SIRIUS Satellite Radio.
XM (North American model only) : Lights up
when tuned to XM Satellite Radio.
MEMORY: Lights up when presetting radio
stations.
FM STEREO: Lights up when tuned to a stereo
FM station.
6 SLEEP indicator
Lights up when the Sleep function has been set.
7 Message area
Displays various information about the selected
input source.
See pages 13–21 for hookup information.
Display
21
7
354
6

Onkyo TX-8555 Specifications

General

Impedance	4 Ω
Frequency range	10 - 100000 Hz
Total Harmonic Distortion (THD)	0.08 %
Output power	110 W
Package depth	560 mm
Package width	419 mm
Package height	250 mm
Dimensions (WxDxH)	435 x 149 x 340 mm
Power requirements	AC 230-240 V, 50 Hz
Output power description	90 W/Ch
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Product color	Black
Package weight	9500 g

Weight and Dimensions

Weight	7500 g
