Step4: Multi-zone Connection
OR
ZONE2 LINE OUT
ZONE SPEAKER
1
2
3
ZONE2
MAIN ROOM
LINE
IN
BD/DVD

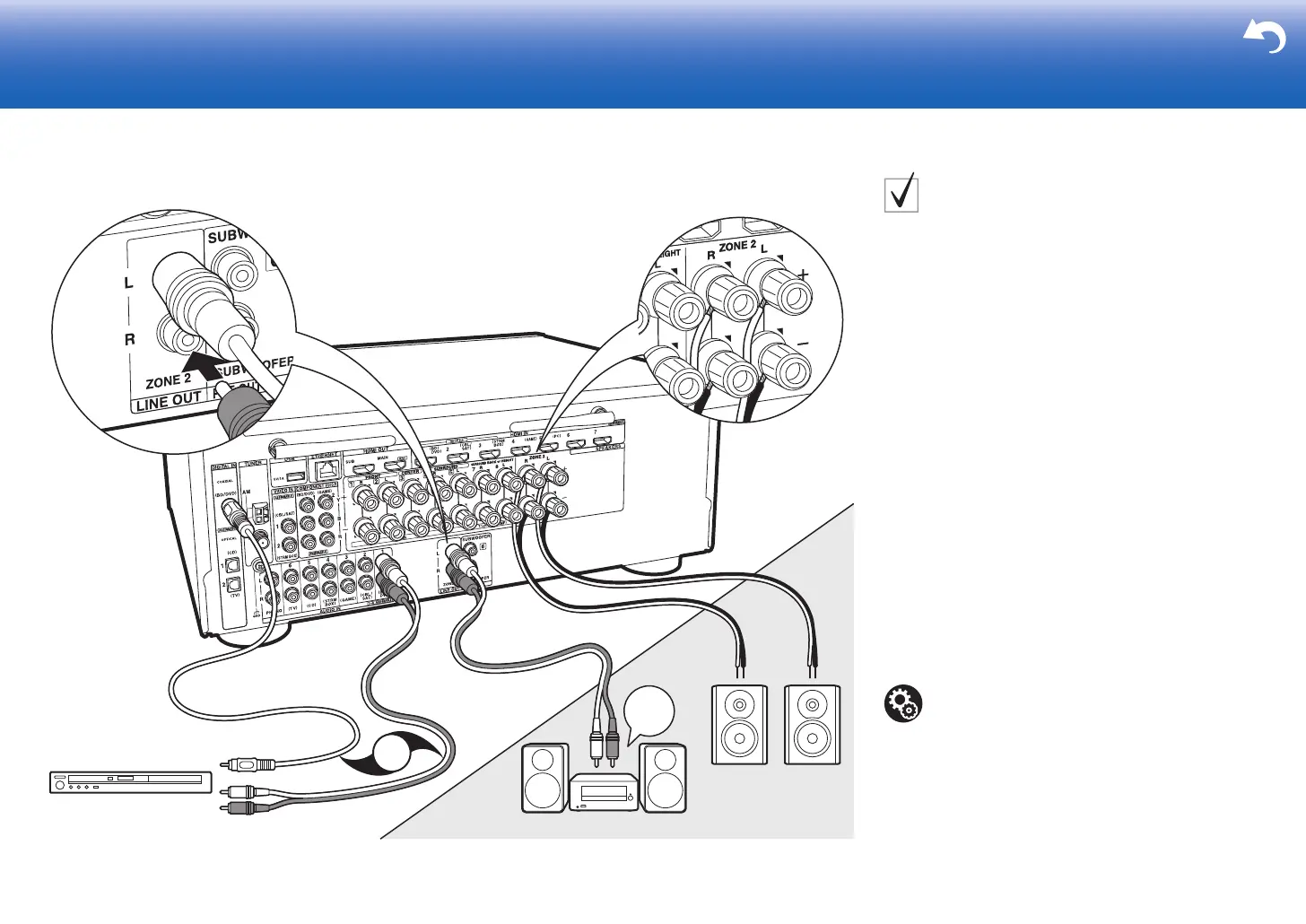

1 Digital coaxial cable, 2 Analog audio cable, 3 Speaker cable
ZONE 2 LINE OUT /
ZONE SPEAKER
You can enjoy audio in the separate room by, for example,
playing a Blu-ray Disc player in the main room (where this
unit is located) and listening to internet radio in the
separate room (ZONE 2).
Connections with an AV component
When outputting the audio of an external AV component
to ZONE 2, you need to connect using an analog audio
cable or digital optical cable, or digital coaxial cable.
ZONE 2 LINE OUT
It is possible to play 2 ch source in a separate room while
5.1.2 ch source is being played in the main room.
Connect the ZONE 2 LINE OUT jacks of the unit and the
LINE IN jacks of the pre-main amplifier in a separate room
with an analog audio cable.
ZONE SPEAKER
It is possible to connect speakers in a separate room and
play 2 ch sources.
0 During ZONE 2 playback, no sound is heard from the
height speakers and a maximum of 5.1 channel
playback is possible in the main room. Listening modes
such as the Dolby Atmos modes cannot be selected.
Setup
0 Settings are required in Initial Setup, "4. Multi
Zone Setup" (
P13) to enjoy this feature.
0 The audio from externally connected AV
components can only be played in ZONE 2 when
the audio is analog or 2ch PCM audio. If you have
connected to this unit with a digital coaxial cable or
digital optical cable, may be necessary to convert
the audio output of the AV component to PCM
output.
