Step5: Connect Other Cables

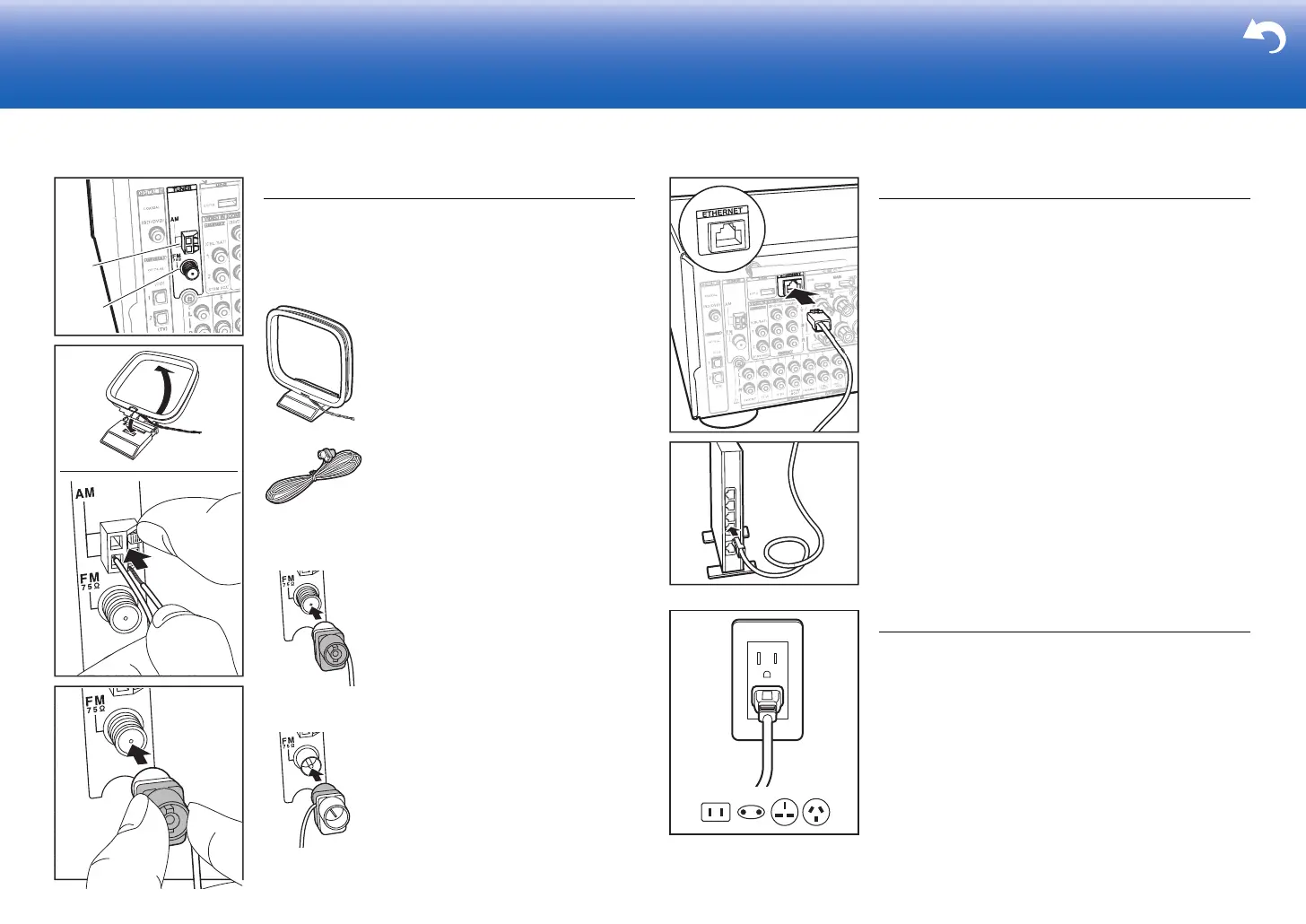

Antenna Hookup
Move the antenna around while playing the radio to find
the position with the best reception. Use a thumb tack or
similar to attach the indoor FM antenna to a wall.
(North American models)
(European, Australian and Asian models)
AM loop antenna
Indoor FM antenna
AM
FM
Network Hookup
Connect this unit to the network using wired LAN or Wi-Fi
(wireless LAN). You can enjoy network features such as
internet radio, Music Server, and AirPlay by connecting the
unit to the network.
If you connect by wired LAN, connect with an Ethernet
cable to the ETHERNET port as shown in the illustration.
To connect by Wi-Fi, then after selecting "Wireless" in "3.
Network Connection" (
 P13) in Initial Setup, select the
desired setting method and follow the onscreen
instructions to configure the connection.
Power Cord Hookup
Connect the power cord to the power outlet after
completing all other connections.

Onkyo TX-NR555 Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (20-20KHz@8 Ohm)	140 W
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Digital, Dolby TrueHD
Package weight	12.5 kg
Apple docking compatibility	-
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, Spotify, TuneIn
HDMI in	6
Audio (L/R) in	8
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP
Connectivity technology	Wired & Wireless
Optical drive included	No

Weight and Dimensions

Depth	378 mm
Width	435 mm
Height	173.5 mm
Weight	12500 g
