Onkyo TX-NR555 User Manual

9
> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual
Troubleshooting | Appendix
OR
CD
2
1
Turntable
1 Digital optical cable, 2 Analog audio cable
if you have:
Audio Components

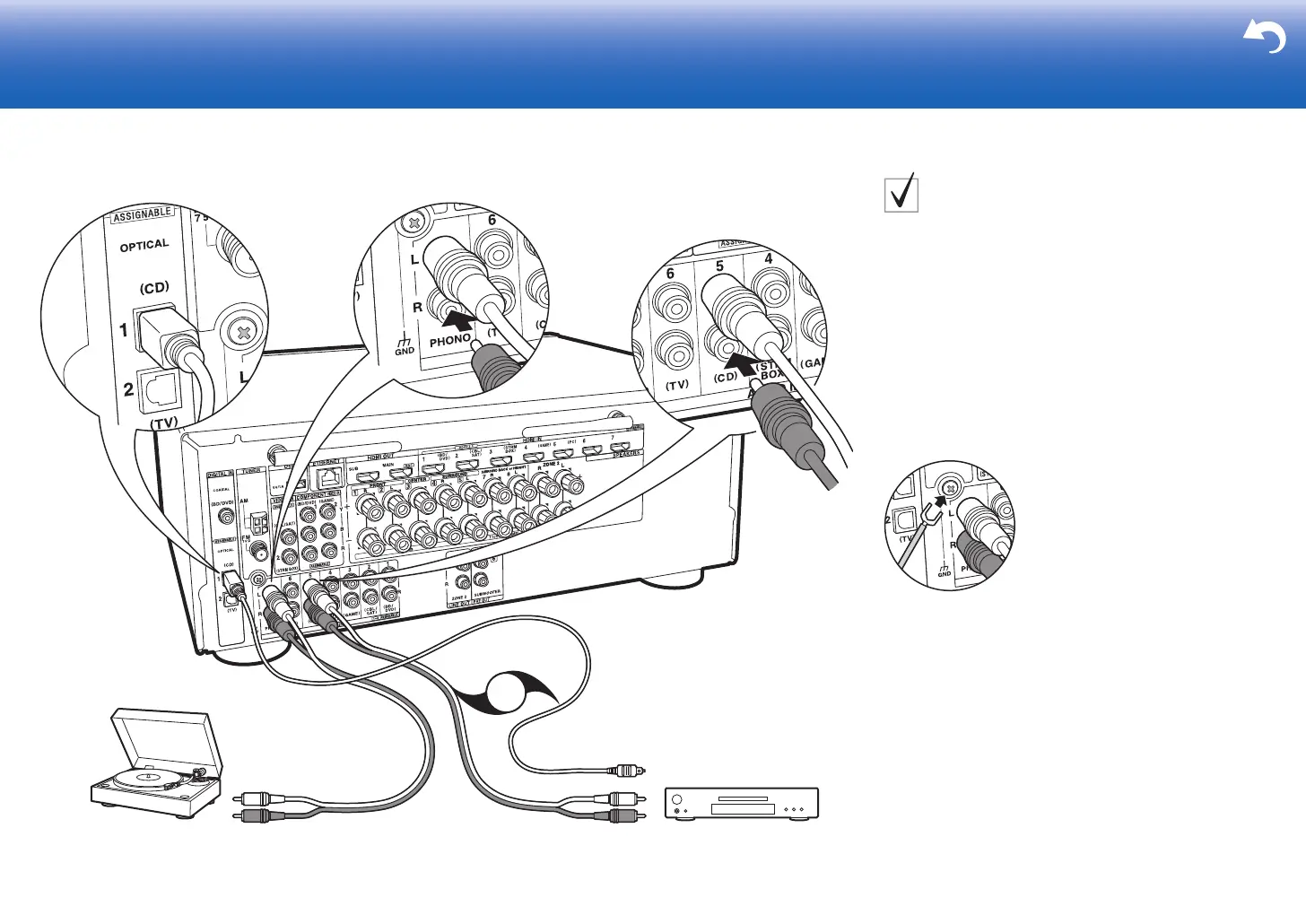

Example of a connection with an audio component.
Connect a CD player using a digital optical cable or
analog audio cable. You can also connect a turntable that
has an MM-type cartridge to the PHONO jack.
0 If the turntable has a built-in audio equalizer, connect it
to an AUDIO IN jack other than the PHONO jack.
Further, if the turntable uses an MC type cartridge,
install an audio equalizer compatible with the MC type
cartridge between the unit and the turntable, then
connect to any AUDIO IN jack other than the PHONO
jack.
If the turntable has a ground wire, connect it to the GND terminal
of this unit.

Onkyo TX-NR555 Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (20-20KHz@8 Ohm)	140 W
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Digital, Dolby TrueHD
Package weight	12.5 kg
Apple docking compatibility	-
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	460 W
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Pandora, Spotify, TuneIn
HDMI in	6
Audio (L/R) in	8
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP
Connectivity technology	Wired & Wireless
Optical drive included	No

Weight and Dimensions

Depth	378 mm
Width	435 mm
Height	173.5 mm
Weight	12500 g
